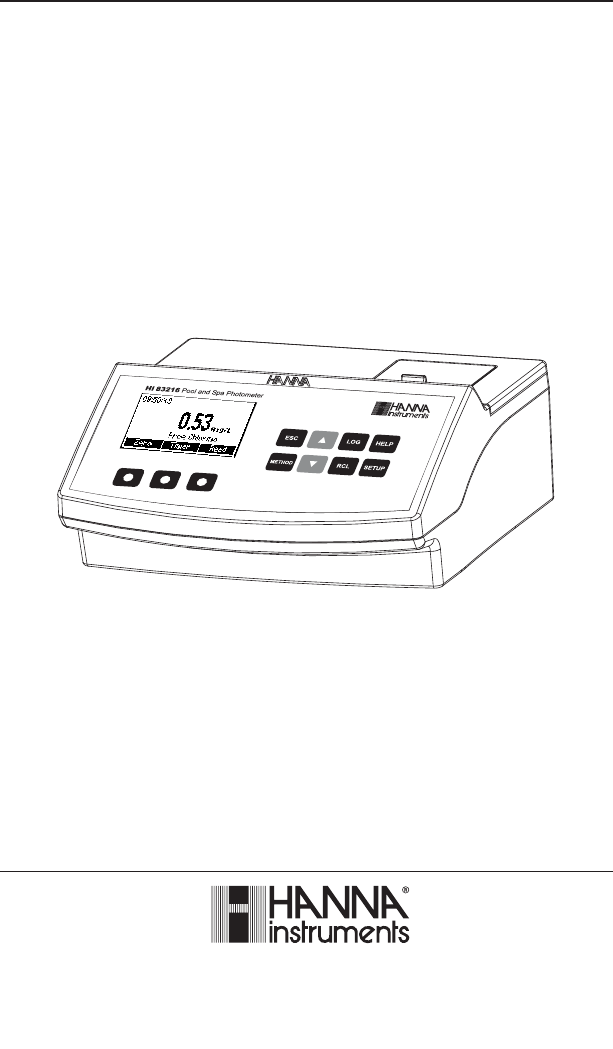

Instruction Manual HI 83216 Multiparameter Bench Photometer for Pool & Spa Applications www.hannainst.
Dear Customer, Thank you for choosing a Hanna product. Please read this instruction manual carefully before using the instrument. This manual will provide you with the necessary information for the correct use of the instrument. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com. TABLE OF CONTENTS PRELIMINARY EXAMINATION ..............................................................................................................................................
PRELIMINARY EXAMINATION Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please notify your local Hanna Office. Each Meter is supplied complete with: • Four Sample Cuvettes and Caps • Cloth for wiping cuvettes (1 pcs) • Scissors • AC/DC Power Adapter • Instruction Manual Note: Save all packing material until you are sure that the instrument works correctly.
SIGNIFICANCE OF POOL AND SPA TESTING A major family leisure pursuit is the enjoyment of Swimming Pool and Spa facilities world-wide. A basic necessity of Pool water treatment, to ensure such enjoyment, is to maintain the water in a safe and pleasant condition for the bathers. In order to achieve such an objective, swimming pool water requires testing on daily, and sometimes hourly bases for disinfection residuals and pH.
THE WATER BALANCE AND LANGELIER INDEX (LI) The pool water characteristics need to be maintained in a balanced condition to avoid system failure. Measuring the water balance is extremely important to predict if the water is corrosive, scaling or balanced. A saturation index developed by Dr. Wilfred Langelier is widely used to predict the balance of swimming pool waters. It is an estimation of the solutions ability to dissolve or precipitate calcium carbonate deposits.
pH The pH of the water is an important factor since at lower pH the corrosion rate increases. If the alkalinity values are sufficiently high it will not be difficult to control the pH. Most pools managers do prefer to keep the pH between 7.2 and 7.4, that does ensure low corrosion rates and a sufficient activity of chlorine. Langelier Index (LI) The Langelier Index is a powerful tool to calculate the water balance, and to predict corrosion or scaling problems.
WATER INDEX REFERENCE TABLES Temperature °C °F TF 0 4 8 12 16 20 24 28 32 36 40 50 32 39 46 54 60 68 75 82 90 97 104 122 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.7 0.8 0.9 1.0 Calcium Hardness Alkalinity mg/L mg/L HF AF (as CaCO3) (as CaCO3) 5 25 50 75 100 150 200 250 300 400 500 1000 0.7 1.4 1.7 1.9 2.0 2.2 2.3 2.4 2.5 2.6 2.7 3.0 5 25 50 75 100 150 200 250 300 400 500 1000 0.7 1.4 1.7 1.9 2.0 2.2 2.3 2.4 2.5 2.6 2.7 3.0 EXAMPLE: Pool water conditions Temperature pH Alkalinity Hardness 30°C 7.
SPECIFICATIONS Light Life Light Detector Environment Life of the instrument Silicon Photocell 0 to 50°C (32 to 122°F); max 90% RH non-condensing Power Supply external 12 Vdc power adapter Auto-Shut off built-in rechargeable battery Dimensions 235 x 200 x 110 mm (9.2 x 7.87 x 4.33") Weight 0.9 Kg For specifications related to each single method (e.g. range, resolution, etc.), refer to the related measurement section.
Where: -log I/Io= Absorbance (A) Io = intensity of incident light beam I = intensity of light beam after absorption ελ = molar extinction coefficient at wavelength λ c = molar concentration of the substance d = optical path through the substance Therefore, the concentration "c" can be calculated from the absorbance of the substance as the other factors are known.
FUNCTIONAL DESCRIPTION INSTRUMENT DESCRIPTION 1) 2) 3) 4) 5) 6) 7) 8) Open Cuvette Lid Indexing mark Cuvette point Liquid Crystal Display (LCD) Splash proof keypad ON/OFF power switch Power input connector USB connector 10
KEYPAD DESCRIPTION The keypad contains 8 direct keys and 3 functional keys with the following functions: Press to perform the function displayed above it on the LCD. ESC Press to exit the current screen. Press to access the select method menu. Press to move up in a menu or a help screen, to increment a set value, to access second level functions. Press to move down in a menu or a help screen, to decrement a set value, to access second level functions. Press to log the current reading.
(c) take out the syringe and clean the outside of the syringe tip. Be sure that no drops are hanging on the tip of the syringe, if so eliminate them. Then, keeping the syringe in vertical position above the cuvette, push the plunger down into the syringe until the lower edge of the seal is exactly on the 0.5 mL mark. Now the exact amount of 0.5 mL has been added to the cuvette, even if the tip still contains some solution.
USING CUVETTES • Proper mixing is very important for reproducibility of the measurements. The right way of mixing a cuvette is specified for each method in the related chapter. (a) invert the cuvette a couple of times or for a specified time: hold the cuvette in the vertical position. Turn the cuvette upside-down and wait for all of the solution to flow to the cap end, then return the cuvette to the upright vertical position and wait for all of the solution to flow to the cuvette bottom.
• In order to avoid reagent leaking and to obtain more accurate measurements, close the cuvette first with the supplied HDPE plastic stopper and then the black cap. • Each time the cuvette is used, the cap must be tightened to the same degree. • Whenever the cuvette is placed into the measurement cell, it must be dry outside, and free of fingerprints, oil or dirt. Wipe it thoroughly with HI 731318 or a lint-free cloth prior to insertion.
OPERATIONAL GUIDE POWER CONNECTION AND BATTERY MANAGEMENT The meter can be powered from an AC/DC adapter (included) or from the built-in rechargeable battery. Note: Always turn the meter off before unplugging it to ensure no data is lost. When the meter switches ON, it verifies if the power supply adapter is connected.
• After the desired method is selected, follow the measurement described in the related section. • Before performing a test you should read all the instructions carefully. DATA MANAGEMENT The instrument features a data log function to help you keep track of all your analysis. The data log can hold 200 individual measurements. Storing, viewing and deleting the data is possible using the LOG and RCL keys.. Storing data: You can store only a valid measurement.
SETUP In the Setup mode the instrument’s parameters can be changed. Some parameters affect the measuring sequence and others are general parameters that change the behavior or appearance of the instrument. Press SETUP to enter the setup mode. Press ESC or SETUP to return to the main screen. A list of setup parameters will be displayed with currently configured settings. Press HELP for additional information. Press the keys to select a parameter and change the value as follows: Backlight Values: 0 to 8.
Date / Time This option is used to set the instrument’s date and time. Press the Modify key to change the date/time. Press the W X functional keys to highlight the value to be modified (year, month, day, hour, minute or second). Use the keys to change the value. Press the Accept key to confirm or ESC to return to the setup without saving the new date or time. Time format Option: AM/PM or 24 hour. Press the functional key to select the desired time format.
Instrument ID Option: 0 to 9999. This option is used to set the instrument’s ID (identification number). The instrument ID is used while exchanging data with a PC. Press the Modify key to access the instrument ID screen. Press the keys in order to set the desired value. Press the Accept key to confirm the value or ESC to return to the setup menu without saving the new value. Meter information Press the Select key to view the instrument model, firmware version, language version and instrument serial number.
ALKALINITY SPECIFICATIONS 0 to 500 mg/L (as CaCO3) 5 mg/L ±5 mg/L ±10% of reading at 25 °C ±5 mg/L Range Resolution Accuracy Typical EMC Deviation Light Source Method Tungsten lamp with narrow band interference filter @ 575 nm Colorimetric Method. At different alkalinity levels a distinctive range of colors from yellow to green and greenish blue will develop.
• Remove the cuvette. • Carefully add the content of one packet of HI 93755-0 Alkalinity Indicator Reagent. Replace the cap and shake vigorously for 30 seconds. Note: Pay attention not to spill reagent otherwise full color development may be inhibited. • Press Timer or wait for 2 minutes. Then invert 3 times the cuvette gently again. • Reinsert the cuvette into the instrument and close the lid. • Press Read to start the reading. • The instrument displays the results in mg/L of alkalinity (CaCO3).
CALCIUM HARDNESS SPECIFICATIONS Range Resolution Accuracy Typical EMC Deviation Light Source Method 0 to 500 mg/L (as CaCO3) 5 mg/L ±10 mg/L ±5% of reading at 25 °C ±5 mg/L Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Calmagite method. The reaction between calcium and reagents causes a reddish-violet tint in the sample.
• Add 1 drop of HI 93720C-0 EGTA solution to one cuvette (# 1), replace the cap and invert the cuvette several times to mix. This is the blank. #1 • Place the blank (# 1) into the holder and close the lid. #1 • Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. #2 • Remove the blank and insert the second cuvette (# 2) into the instrument. • Press Read to start the reading. The instrument displays concentration in mg/L of calcium hardness, as CaCO3.
• Press the Unit key to change the current measurement unit. The results can be converted to French degrees (°f), German degrees (°dH) and English degrees (°E). • Press or to return to the measurement screen. Note: This test will detect any calcium contamination in the beaker, measuring syringes or sample cells. To test cleanliness, repeat the test multiple times until you obtain consistent results. Note: For better accuracy wash glassware with HCl 6N.
FREE CHLORINE SPECIFICATIONS Range Resolution Accuracy Typical EMC Deviation Light Source Method 0.00 to 5.00 mg/L 0.01 mg/L from 0.00 to 2.50 mg/L; 0.10 mg/L above 2.50 mg/L ±0.03 mg/L ±3% of reading at 25 °C ±0.01 mg/L Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the USEPA method 330.5 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl G. The reaction between free chlorine and the DPD reagent causes a pink tint in the sample.
• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. • Add the content of one packet of HI 93701-0 DPD reagent. Replace the cap and shake gently for 20 seconds. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 1 minute and press Read. When the timer ends the meter will perform the reading.
TOTAL CHLORINE SPECIFICATIONS Range Resolution Accuracy Typical EMC Deviation Light Source Method 0.00 to 5.00 mg/L 0.01 mg/L from 0.00 to 2.50 mg/L; 0.10 mg/L above 2.50 mg/L ±0.03 mg/L ±3% of reading at 25 °C ±0.01 mg/L Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the EPA method 330.5 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-Cl G. The reaction between chlorine and the DPD reagent causes a pink tint in the sample.
• Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. • Add 1 packet of HI 93711-0 DPD reagent. Replace the cap and shake gently for 20 seconds. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 2 minutes and 30 seconds and press Read. When the timer ends the meter will perform the reading.
CYANURIC ACID SPECIFICATIONS Range Resolution Accuracy Typical EMC Deviation Light Source Method 0 to 200 mg/L 1 mg/L from 0 to 100 mg/L; 10 mg/L above 100 mg/L ±1 mg/L ±15% of reading at 25 °C ±1 mg/L Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the turbidimetric method. The reaction between cyanuric acid and the reagent causes a white suspension in the sample.
• Add the content of one packet of HI 93722-0 Cyanuric Acid Reagent. Replace the cap and shake gently for about 10 seconds (dissolution is not complete). • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read. When the timer ends the meter will perform the reading. • The instrument displays concentration in mg/L of cyanuric acid.
pH SPECIFICATIONS Range Resolution Accuracy Typical EMC Deviation Light Source Method 6.5 to 8.5 pH 0.1 pH ±0.1 pH at 25 °C ±0.1 pH Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the Phenol Red method. The reaction with the reagent causes a yellow to red tint in the sample.
• Remove the cuvette and add 5 drops of HI 93710-0 Phenol Red Indicator. Replace the cap and mix the solution. • Reinsert the cuvette into the instrument. • Press the Read key to start the reading. The instrument displays the pH value. ERRORS AND WARNINGS The instrument shows clear warning messages when erroneous conditions appear and when measured values are outside the expected range. These messages are described bellow. No Light: The light source is not functioning properly.
Battery Low: The battery capacity is lower than 10%. Light Low: The instrument cannot adjust the light level. Please check that the sample does not contain any debris. Light High: There is too much light to perform a measurement. Please check the preparation of the zero cuvette. DATA MANAGEMENT The analyzed data can be managed using Hanna’s product HI92000, Windows ® Compatible Software. Windows® is registered Trademark of "Microsoft Co.
STANDARD METHODS Description Alkalinity Calcium Hardness Chlorine, Free Chlorine, Total Cyanuric Acid pH Range 0 to 500 mg/L 0 to 500 mg/L 0.00 to 5.00 mg / L 0.00 to 5.00 mg / L 0 to 200 mg/L 6.5 to 8.
WARRANTY All Hanna Instruments meters are warranted for two years against defects in workmanship and materials when used for its intended purpose and maintained according to the instructions. This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact your dealer. If under warranty, report the model number, date of purchase, serial number and the nature of the failure.
