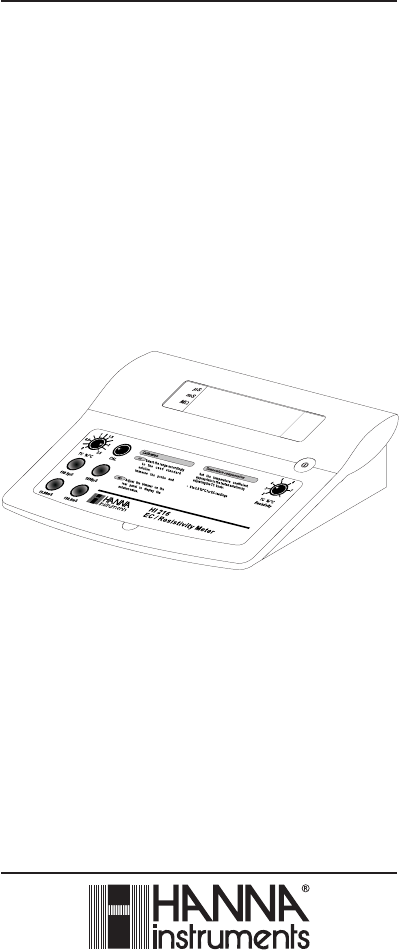

Instruction Manual HI 216 EC/Resistivity Meter w w w . h a n n a i n s t .
PRELIMINARY EXAMINATION Dear Customer, Thank you for choosing a Hanna Instruments Product. Please read this instruction manual carefully before using the instrument. This manual will provide you with all the necessary information for correct operation. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com. This instrument is in compliance with the directives.
FUNCTIONAL DESCRIPTION SPECIFICATIONS Range 199.9 μS/cm / 0 to 1999 μS/cm 19.99 mS/cm / 199.9 mS/cm 0 to 19.90 MΩ•cm Resolution 0.1 μS/cm / 1 μS/cm 0.01 mS/cm / 0.1 mS/cm 0.10 MΩ•cm Accuracy (@20°C/68°F) ±1% FS for EC ±2% FS for resistivity Calibration Manual, 1 point, for both EC and resistivity Temperature Compensation Automatic from 0 to 50°C with ß selectable from 0 to 2.
OPERATIONAL GUIDE PRELIMINARY OPERATIONS TAKING RESISTIVITY MEASUREMENTS • Plug the supplied 12 Vdc adapter into the power supply socket on the rear panel. Note: Make sure the main line is protected by a fuse. • Connect the desired probe (HI 76303 for conductivity or HI 3316D for resistivity measurements) to the DIN socket on the rear panel. The instrument will automatically recognize which probe is connected.
CALIBRATION CONDUCTIVITY VS. TEMPERATURE CHART °C CONDUCTIVITY CALIBRATION • It is recommended to calibrate the instrument for the conductivity range at least once a month, or when the probe is changed. • For better accuracy, choose a solution with a conductivity value close to the sample to be measured. If you are measuring in the mS ranges, calibrate the meter using the HI 7030 (12.88 mS/cm @25°C) or HI 7034 (80 mS/cm @25°C) conductivity solution.
DETERMINATION OF THE TEMPERATURE COEFFICIENT OF A SOLUTION • Immerse the probe into a sample of the solution and adjust the conductivity TC knob to 0% (i.e. no compensation). • Condition sample and probe at 25°C, and note the conductivity reading C25. • Condition sample and probe to a temperature T, approximately 5°C to 10°C different from 25°C, and note the conductivity reading CT.
ACCESSORIES CONDUCTIVITY CALIBRATION SOLUTIONS PROBES HI 7030M HI 7030L HI 8030L HI 7031M HI 7031L HI 8031L HI 7033M HI 7033L HI 8033L HI 7034M HI 7034L HI 8034L HI 7035M HI 7035L HI 8035L HI 7039M HI 7039L HI 8039L HI 76303 12880 μS/cm, 230 mL bottle 12880 μS/cm, 500 mL bottle 12880 μS/cm, 500 mL FDA bottle 1413 μS/cm, 230 mL bottle 1413 μS/cm, 500 mL bottle 1413 μS/cm, 500 mL FDA bottle 84 μS/cm, 230 mL bottle 84 μS/cm, 500 mL bottle 84 μS/cm, 500 mL FDA bottle 80000 μS/cm, 230 mL bottle 80000 μS/cm,
WARRANTY All Hanna Instruments meters are guaranteed for two years against defects in workmanship and materials when used for their intended purpose and maintained according to instructions. The probes are guaranteed for a period of six months. This warranty is limited to repair or replacement free of charge. Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered. If service is required, contact the dealer from whom you purchased the instrument.
SALES AND TECHNICAL SERVICE CONTACTS Australia: Tel. (03) 9769.0666 • Fax (03) 9769.0699 China: Tel. (10) 88570068 • Fax (10) 88570060 Egypt: Tel. & Fax (02) 2758.683 Germany: Tel. (07851) 9129-0 • Fax (07851) 9129-99 Greece: Tel. (210) 823.5192 • Fax (210) 884.0210 Indonesia: Tel. (21) 4584.2941 • Fax (21) 4584.2942 Japan: Tel. (03) 3258.9565 • Fax (03) 3258.9567 Korea: Tel. (02) 2278.5147 • Fax (02) 2264.1729 Malaysia: Tel. (603) 5638.9940 • Fax (603) 5638.
