Product name: IVY Model: FM-IVY-101
Table of Contents 1 Intended use 2 2 Dos and Don’ts 3 3 How to use 4 4 Test result 6 5 Product structure 8 6 Legends 9 7 List of accessories 9 8 Product specifications 10 9 Q&A 10 10 Disclaimer 11 11 Warranty 12 12 Copyright statement 13 13 Certification 13 14 FCC warning 14 15 Quick Guide 16 1
Thank you for purchasing For the safe use of this product, please read this User Manual first, and keep it properly after reading so that you may access and consult at any time. The warranty card is also included in the package. Please do not lose it. 1 Intended use This product is used for the qualitative detection of luteinizing hormone in human urine. Luteinizing hormone is a type of gonadotropins, LH for short and also known as interstitial cell-stimulating hormone (LCSH).
2 Dos and Don’ts 1. You can choose to use the urine of any of the three periods morning, afternoon, or evening. 2. The test strip in the bag should be used immediately after unpacking to avoid failure caused by dampness. 3. Stop drinking water 2 hours before collecting the urine sample to prevent it from being diluted. 4. There is a desiccant in the aluminum foil bag. Do not eat it. 5. Product expired may not be used. 6. The urine cup can be reused. 7. Test strips are disposable and cannot be reused. 8.
3 How to use Step 1: Remove the battery cover. Install the button cell in the direction as indicated. When you hear a beep, it indicates that the battery has been inserted successfully. Put the battery cover back in place. CR2032 CR2032 Step 2: Collect your urine in the cup included in the package. You can choose the urine from any of the three different time of the day - morning, afternoon and evening. Step 3: Remove the lid of the main body. When you hear a beep, it indicates that Femometer IVY is on.
3 How to use Step 4: Collect your urine in the cup included in the package. Dip the top of the test strip into the urine and hold it until you hear a "beep" (at the same time, the status light starts fast flashing). Then pull it out and put the test strip lid back on. Step 5: Place the product on a flat surface. The LED light will be flashing during the testing. Wait for about 6-10 minutes till you hear three beeps which indicate that the test is completed.
4 Test result How to use Bluetooth: 1. Open the electronic device and APP. 2. Follow the APP prompts to bind the device. 3. After connecting, the data will be automatically synchronized via Bluetooth afterwards. The measurement result will be displayed for 30 seconds. Symbol “-” Indicates a negative result with a low probability of conception. Please test again after 12 hours. To ensure the accuracy of the tests, please test every day.
4 Test result Symbol “++” Indicates a positive result where the test line is of the same color as or darker than the control line. LH surge is detected. And you have the highest probability of conception. Please keep testing every 4-6 hours until it shows "+", which indicates that you have ovulated.

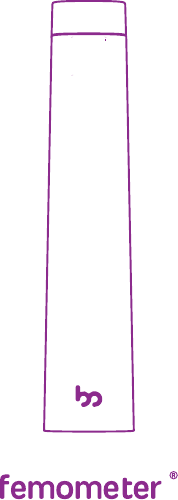

5 Product structure Lid of the main body Test strip cover Main body LED display Test strips Battery cover Femometer IVY consists of the main body, Lid of the main body, test strips, and battery cover.
6 Legends Warning | It means that misuse may cause injury or death. Don’ts | It means that it is strictly prohibited. 7 List of accessories Please confirm what’s in the package you have purchased. The package contains a Femometer IVY, a battery (CR2032 button cell), a user manual, a quick guide, a urine cup and 6 test strips. In case of anything missing, please contact us via support@femometer.com.
8 Product specifications Product name Model IVY FM-IVY-101 Dimension Weight 129mmX27mmX17mm 57g (Battery excluded) Operation condition Storage condition Temperature:10℃-40℃ RH: ≤85% Pressure : 86-106kpa Temperature:-25℃-55℃ RH: ≤95% Pressure : 86-106kpa Service life Battery 3 years (Battery excluded) 1*CR2032 Battery 9 Q&A 1. Q: What should I do if I open the lid and have a long, low-pitched sound? A: The battery has run out. It is recommended to replace the battery.
9 Q&A 2. Q: Is the test strip inserted into the test long and flash red signal? A: It is not possible to test used test strips. It is recommended to replace with a new test strip. 3. Q: The test is completed and the red light is on? A: The test strip has failed and it is recommended to replace with a new test strip. 4. Q: Why is the testing duration not always the same? A: The duration of the test is related to the amount of urine taken and the level of LH.
11 Warranty Product model: Purchase data: Remark: Point of sales: Note • 1-year warranty (from date of purchase) is included under proper usage. • Warranty doesn’t cover parts other than Earmo itself. • Under these circumstances, repair will be charged. • Warranty expired. • Warranty card not shown to seller. • Vague information on warranty card.
12 Copyright statement Hangzhou Bangtang Network Technology Co., Ltd. reserves all rights, and retains the final right to interpret and revise this handbook and the statements contained therein. Copy right of this manual belongs to Hangzhou Bangtang Network Technology Co., Ltd. Without prior written permission, no company or individual is allowed to reproduce, copy or translate this manual or any information contained therein. Hangzhou Bangtang Network Technology Co., Ltd.
14 FCC warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Scan QRcode for e-version of the manual 15
15 Quick Guide Please read carefully before use. Install the Battery The package contains a brand new CR2030 battery, please install it according to the following instruction. Download the Femometer App Search Femometer in the App Store or Google Play, then download and install the Femometer App. Pair the Femometer with the App Open the App, sign up an account, enter the home page, and then click the icon on the top left corner to pair the Femometer.
