Instructions / Assembly
7 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
Maintenance

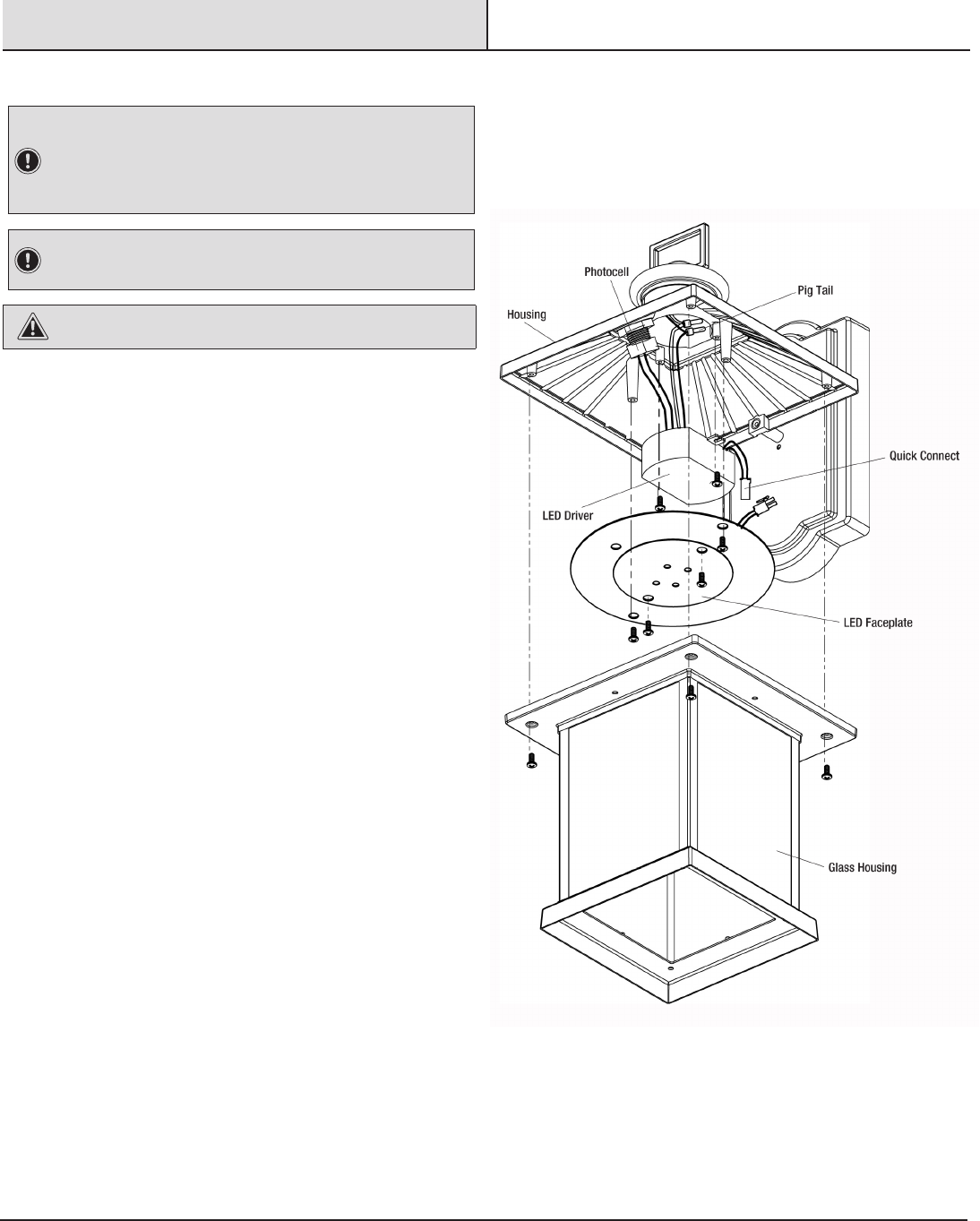

REPLACING THE LED DRIVER
IMPORTANT: Do NOT disassemble product. This operation
is only for replacement of a faulty LED Driver.
This is NOT a step to be taken with installation of this
xture.
IMPORTANT: It is recommended that the replacement of an
LED driver be completed by a qualied electrician.
CAUTION: Turn off main power at the fuse or circuit breaker
box.
Disassembly:
1. Use a Phillips screwdriver to remove the (4) screws in the glass
shade assembly housing.
2. Use a Phillips screwdriver to remove (2) screws holding the LED
faceplate to the housing.
3. Disconnect wires from the LED faceplate to the driver via the
quick connect terminal.
4. Use a Phillips screwdriver to remove (2) screws holding the LED
driver to the housing.
5. Unthread the photocell from the clear lens on the housing.
6. Cut the black and white wire immediately below the pigtail
connectors to remove the connectors.
7. Strip each colored wire 3/8 in. from the end of the wire.
8. Attach the new LED driver to the black and white supply wires
with wire nuts or crimp connectors.
Reassembly:
9. Screw the photocell back into the clear lens.
10. Use a Phillips screwdriver to attach the driver to the housing
using (2) previously removed screws.
11. Reconnect the driver wires to the LED faceplate wires with
the quick connect terminal.
12. Use a Phillips screwdriver to re-attach the LED faceplate to
the housing using (2) previously removed screws.
13. Use a Phillips screwdriver to re-attach the glass shade
assembly to the housing using (4) previously removed screws.
14. Restore power to the xture.
Driver Replacement:
Model # 2003230
