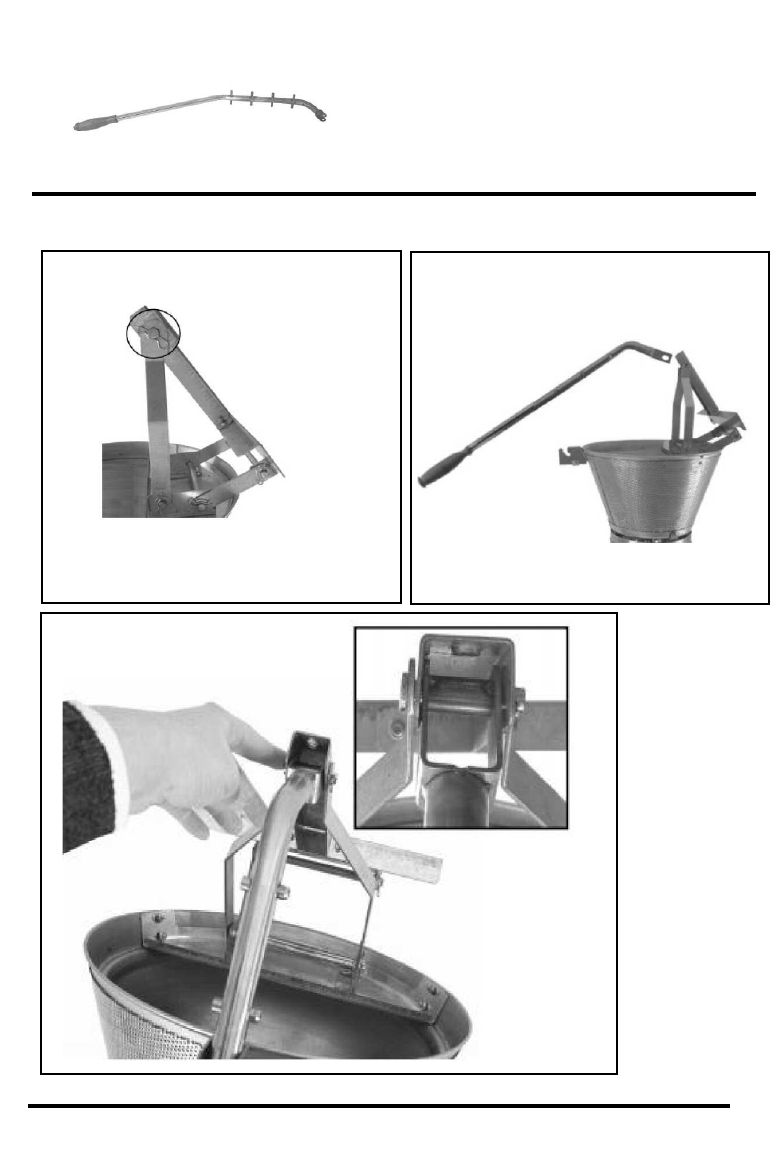

Fitting reflector handle
Assembly step 9
Page 11
Retaining Pin
Remove R clip and
retaining pin
Heat focus
reflector bracket
Reflector handle
R Clip
1
2
3
Fit reflector handle
Secure with retaining
pin and R clip.
Reflector handle
