IQ3 Data Logger Dash Installation Manual
14

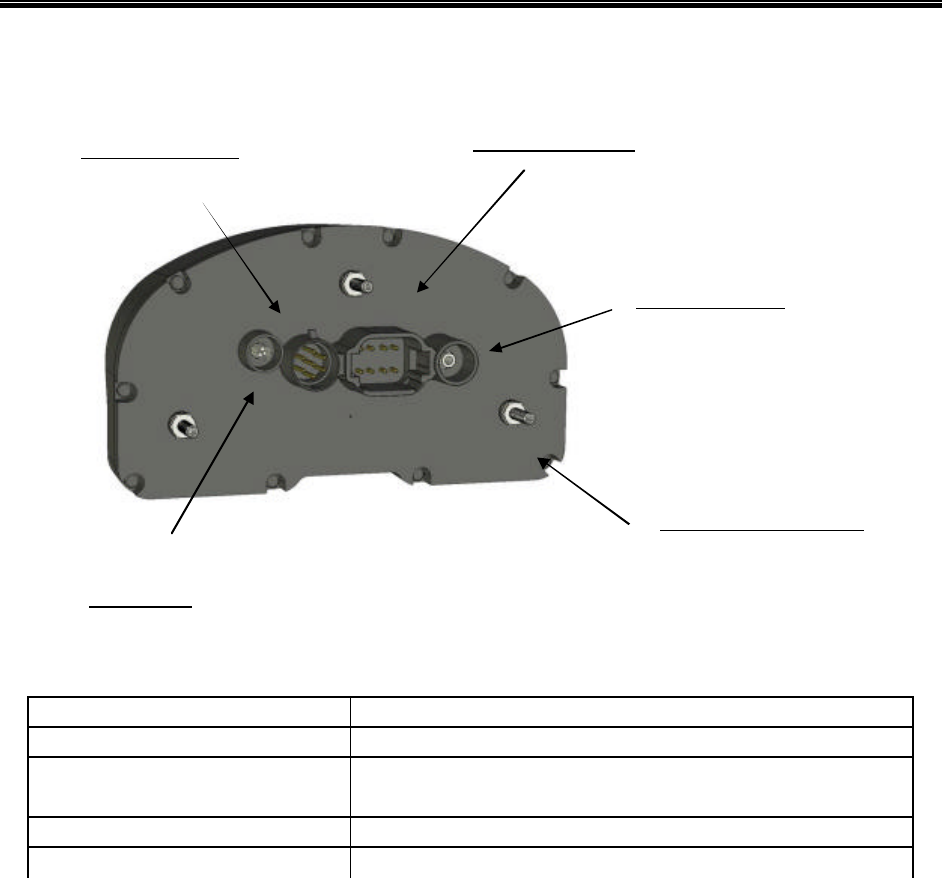

External Features – Rear
GPS Antenna Connector Provides connection for external GPS antenna
Vnet Connector Provides input for external sensor(s) Vnet cable
Deustch 8 Pin Connector Provides input for power / ground/ engine rpm /
programming buttons
Serial Cable Connector Provides input for serial cable supplied with package
Mounting Studs & Nuts Three #10 studs and 10-32 nuts facilitate mounting
Mounting Studs / Nuts (3 total)
Vnet Connector
Serial Cable Connector
GPS Antenna Connector
Deutsch 8 Pin Connector
