75

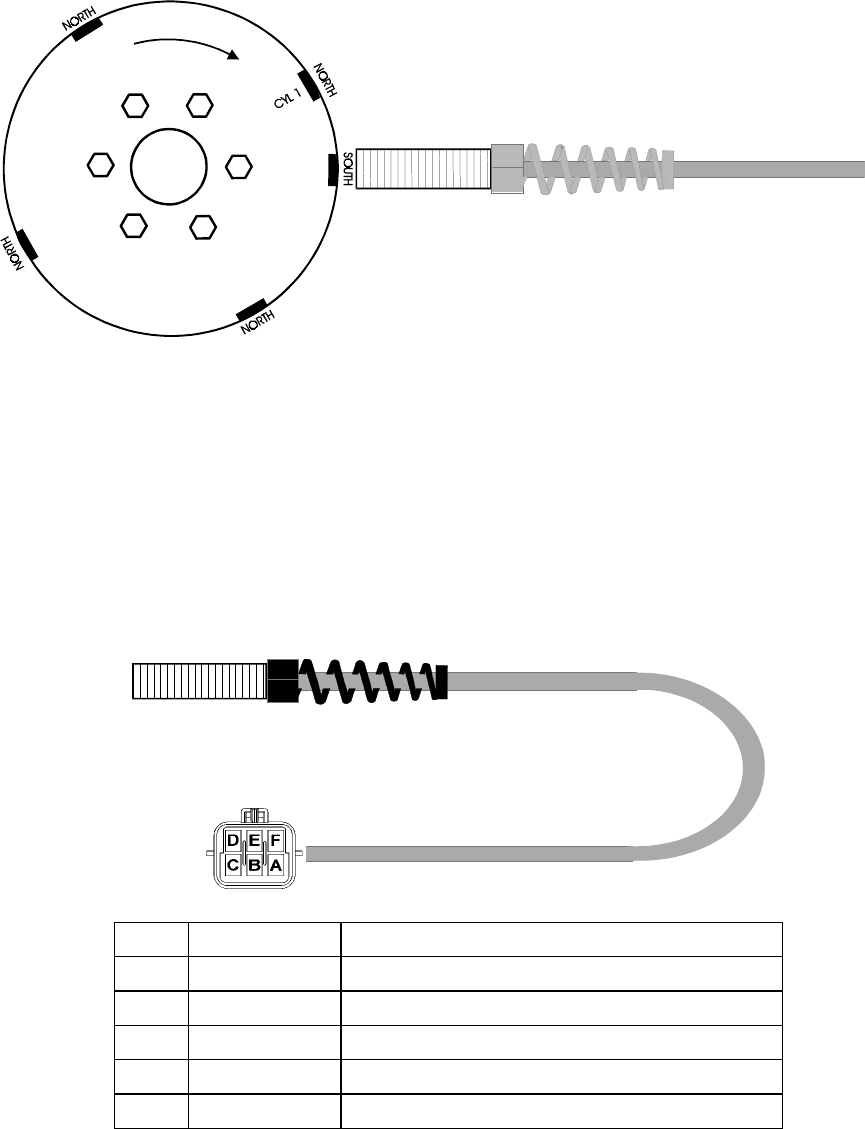

8 cylinder engine
For an eight cylinder 5 magnets are required in total positioned exactly 90° apart..While a
south pole needs to trigger the sensor before the trigger for cylinder No 1.
Figure 6: Typical 8 Cylinder Application
The ignition setup for the S2 needs to be configured in the following way:
Trigger Edge : Falling
Trigger type : Standard
Home Edge : Falling or Rising
A BLUE GROUND
B YELLOW PRIMARY TRIGGER
C N/C
D N/C
E GREEN SECONDARY (HOME) TRIGGER
F RED + 12 VOLTS
