4.4 Accessing the Ignition Maps
Pressing
ĵ
ĵĵ
ĵ
from any page will take you to the Maps Menu. From here you choose
Ι
ΙΙ
Ι
for the
Ignition maps. Or you can access the ignition maps directly through
♣Ι
♣Ι♣Ι
♣Ι
from any other
application.
4.5 The Ignition Maps

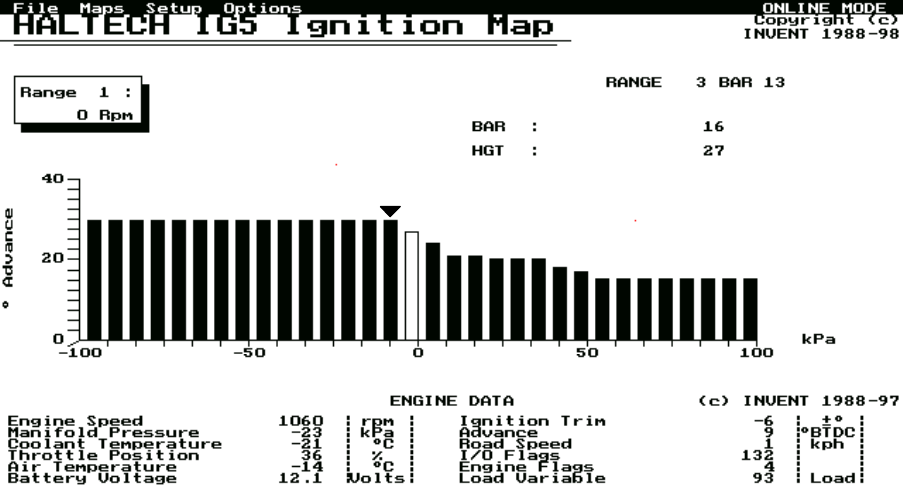

The ignition map shown above is explained in detail here.
The Menu Bar
This has the names of four major software menus embedded in it. Any of these may
be accessed by holding down the Alt key of the PC keyboard and pressing the initial
of the required group
Range 1
This range information (in a box - top left) refers to the bar graph map currently
displayed . The rpm beneath it will depend on the rpm mode previously selected on
the Engine Identification page. The displayed map range is selected by either the F
keys along the top of the keyboard or from the Ignition Map.
Engine Data
This is displayed across the bottom of the page is the live data of the running engine
when the system is in the “on-line” mode
