Use and Care Manual

17 18

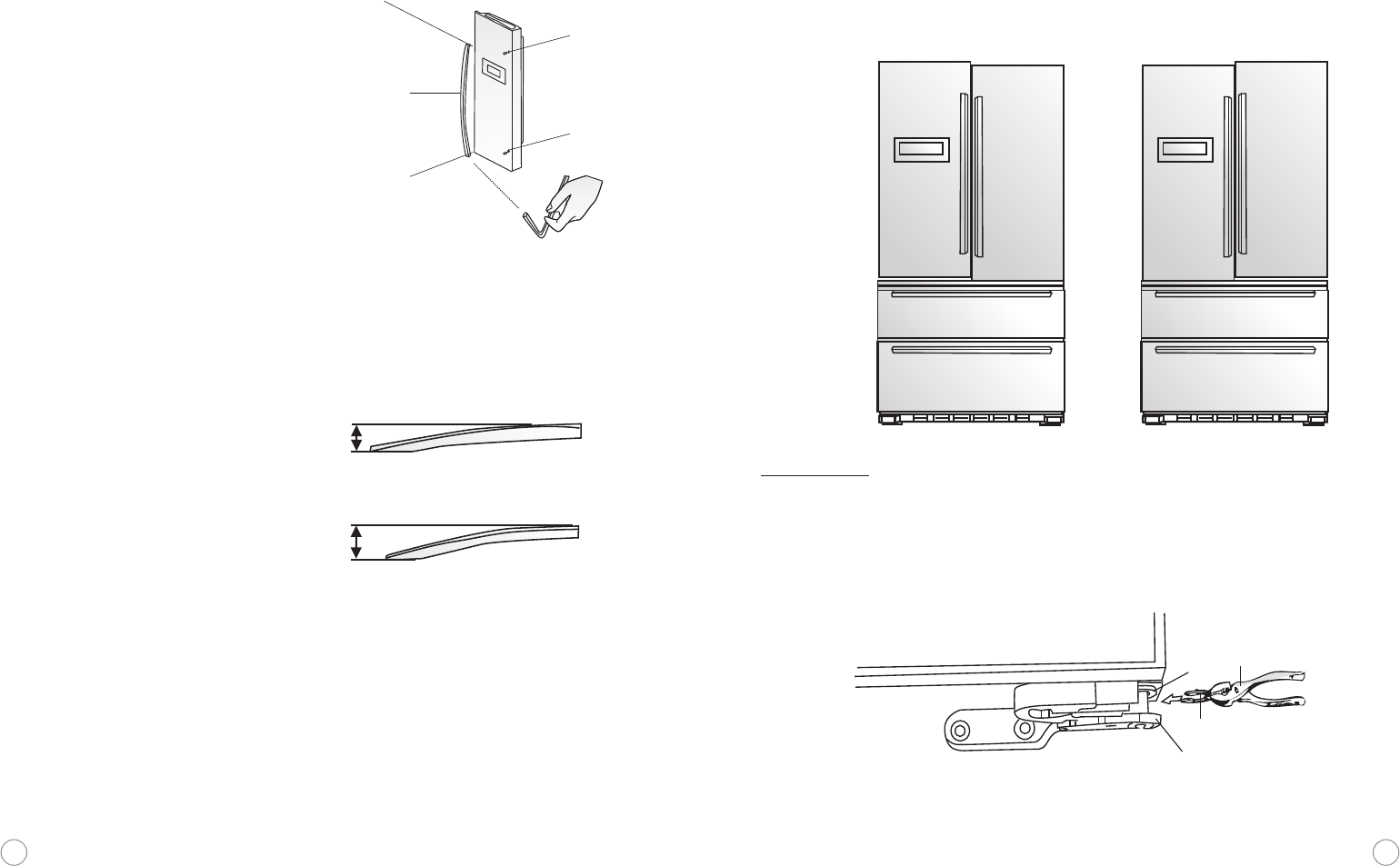

Assembly instructions of cold
storage door handle:
1. Firstly, take the handle set bolts out
from the refrigerator, use cross
recessed screwdriver to set the bolt
on the door. Fix it tight with all the
screw thread twisted through the
hole, as shown in the figure;
2. After the first step is completed,
take the Cold storage door handle
out from the box, place it as per the
direction shown in the figure (Note:
i.e. the direction which both screw
holes on the handle are close to the
edge), and hang the handle above
the set bolt;
3. Use the small hexagon spanner
supplied in the box to set the
handle fixing socket head cap
screws into both the small screwed
holes on the handle. After they are
screwed down, gently shake the
handle, so as to confirm that the
handle is well erected.
Assembly instructions of the
refrigeration door handle:
The assembly steps of the
refrigeration door handle is same with
that of the cold storage door handle.
Please note that: during the assembly
of the handle, the direction of tapping
hole is downward (to the ground).
Remember a level refrigerator is necessary for getting the doors perfectly even.
If you need help, review the previous section on leveling the refrigerator.
When the left doors is lower than the right door(left). Or the right doors is lower
than the left door.
Door handles Making minor adjustments between doors
Do as follows
1) Raise the left door or the right door.
2) Insert the supplied fastener-ring using (2) using a pair of pliers (3) in the gap
between the hinge-grommet (1) and the lower hinge (4)The number of fasten-
rings you will need to insert depends on the gap.
Scheme of installation of
cold storage door handle
Difference between the chilling and refrigeration
handle: lie them flat, the one with higher chordal
height is the refrigeration handle
Cold storage door handle
Refrigeration door handle
1
2
3
4
80
61
Inner socket head cap
screw for handle fixing
Chilling chamber
door handle
Inner socket head cap
screw for handle fixing
Bolt
Bolt
