LCD TV/DVD Player Combo User Manual

Connection Instructions

VCR Setup

Connection and use steps:

1.Read the user guide supplied with your AV devices and ensure that it has

Composite or S-Video connectors;

2.Make sure that the power of the LCD-TV and the AV device are off;

.Turn on the LCD-TV first ; and then turn on the

power of the AV device;

4.Press the TV/AV button to set the video

input mode of the LCD-TV to

S-VIDEO mode or AV mode.

Connection Option 1

Set VCR output switch to 3 or 4 and then

tune TV to the same channel number.

Connection Option 2

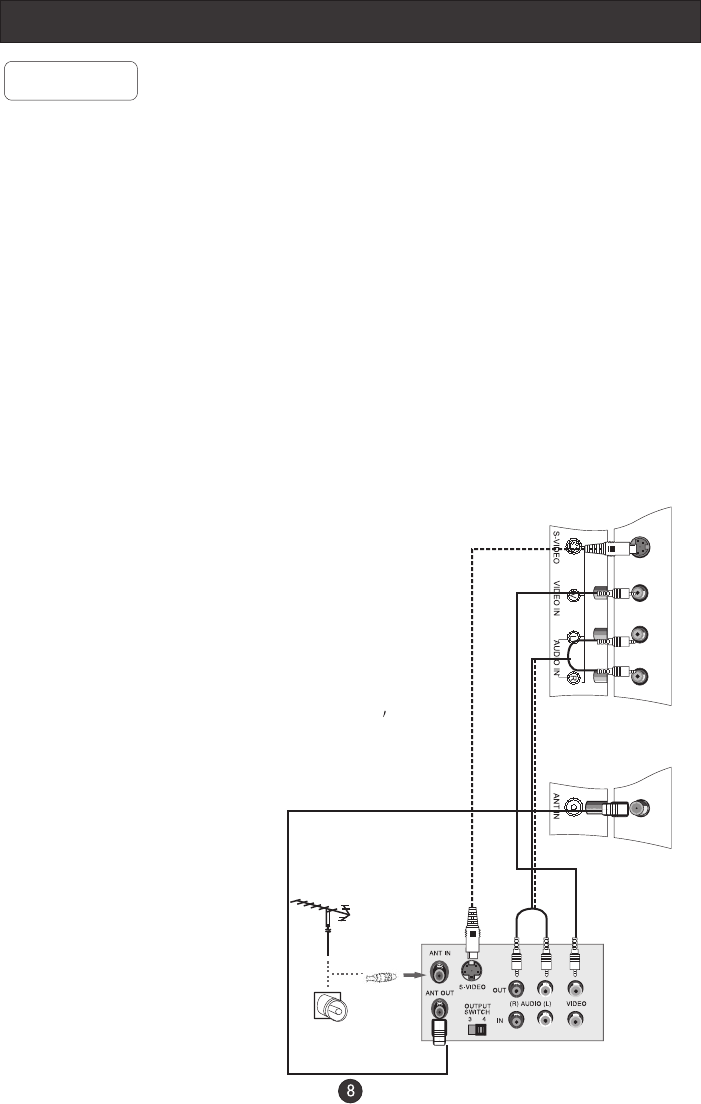

1. Connect the audio and video cables from

the VCR's output jacks to the TV input jacks,

as shown in the figure.

When connecting the TV to VCR, match

the jack colors (Video = yellow, Audio

Left = white,and Audio Right = red).

If you connect an S-VIDEO output from

VCR to the S-VIDEO input, the picture

quality is improved; compared to conne-

cting a regular VCR to the Video input.

2. Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner s

manual.)

- To avoid picture noise (interference), leave an adequate distance between the

VCR and TV

VCR
