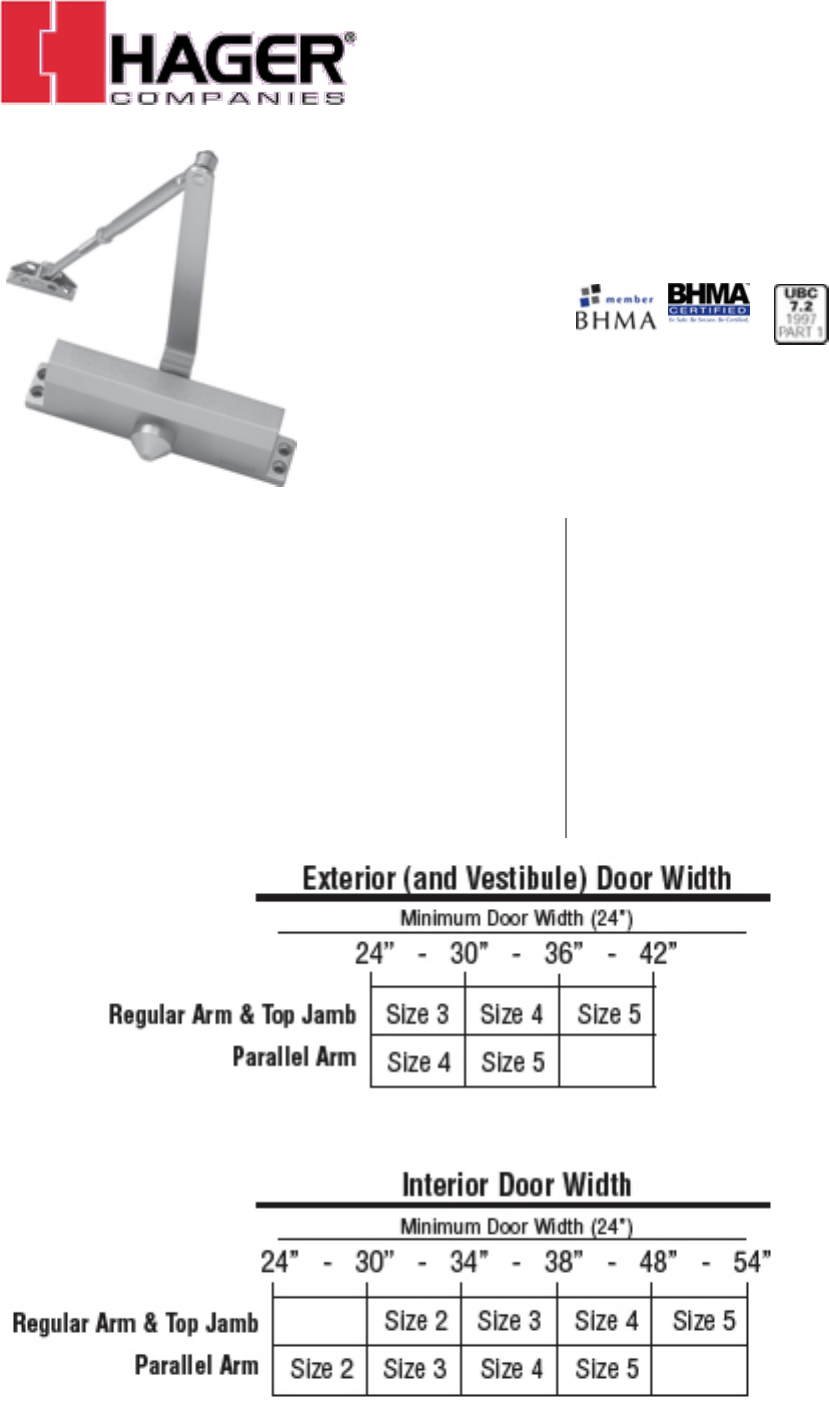

5400 Series

Description: Surface Door Closers > 5400 Series - Grade 2

Applications - Light Duty Commercial Handing - Non-Handed

Certifications - BHMA Certified ANSI A156.4 Grade 2 Arms & Brackets - Tri-Pack - Regular, Top Jamb, and Parallel

Arms

- UL/cUL Listed for up to 3 hours - 15% power adjustment in arm

- UL10C Positive Pressure Rated

- UL10B Neutral Pressure Rated Fasteners - Self tapping wood and machine screws

- Sex nuts and bolts

Material - Body - Aluminum

Door Thickness - 1 3/4"

Springs - Double heat treated Steel, tempered springs - 1-3/8" - 2-1/4" Optional

- Precision machined, heat treated Steel piston

- Triple heat treated Steel spindle Painted Finishes - Aluminum, Bronze, Dark Bronze, Gold

Valves - Adjustable latching and sweep speed valve Note - No cover provided

- Adjustable backcheck valve - Optional - Standard 1 year warranty

Summary of content (4 pages)

PAGE 1
5400 Series Description: Surface Door Closers > 5400 Series - Grade 2 Applications - Light Duty Commercial Handing Certifications - BHMA Certified ANSI A156.
PAGE 2
Door Closer ANSI Reference Sheet Closer Series 5100 Function Cross Reference # Regular Arm Mount C02011 Top Jamb Arm Mount C02041 Parallel Arm Mount C02021 Note* Standard tri pack arms include C02011, C02041 & C02021 Note* Delayed Action optional w/ the 5100 closer series Heavy Duty Parallel Arm Mount C02021 Hold Open Parallel Arm Mount C02061 Bracket Mounting C02031 5200 Regular Arm Mount C02011 Top Jamb Arm Mount C02041 Parallel Arm Mount C02021 Note* Standard tri pack arms include C02011, C02041 & C020
PAGE 3
Hager Companies, Inc 139 Victor Street Saint Louis, MO 63104 HAGER TEST REPORT NO.: CL04012 EVALUATION OF Hager Companies 5400 Series Door Closer TEST PARAMETERS: This report covers tests and/or evaluations performed using the following standard(s) as a guideline: ANSI/BHMA A156.4-2000 American National Standard for Door Controls – Closers. Evaluation was conducted by Intertek Testing Services NA, Inc., at their Middleton, WI facility on July 30, 2004.
PAGE 4
DOOR CLOSERS HOW TO ORDER 5100 PAR 25 ALM PAR - Parallel Arm Mount MLT - Multi-Mount Product Group - Covers Finish Mount 5100 5200 5300 5400 HD SLC RH SX1G BCK Cast Iron, Grade 1 Slim Body Aluminum, Grade 1 Aluminum, Grade 1 Aluminum, Grade 2 ALM BRZ DBZ GOL US3 US4 US26 US26D - Sprayed Aluminum Sprayed Bronze Sprayed Dark Bronze Sprayed Gold Bright Brass Satin Brass Bright Chrome Satin Chrome SLC FC MC PC - Fastener Options Slim Line Cover Full Cover Metal Cover Pinion Cap Handing RH - Rig
