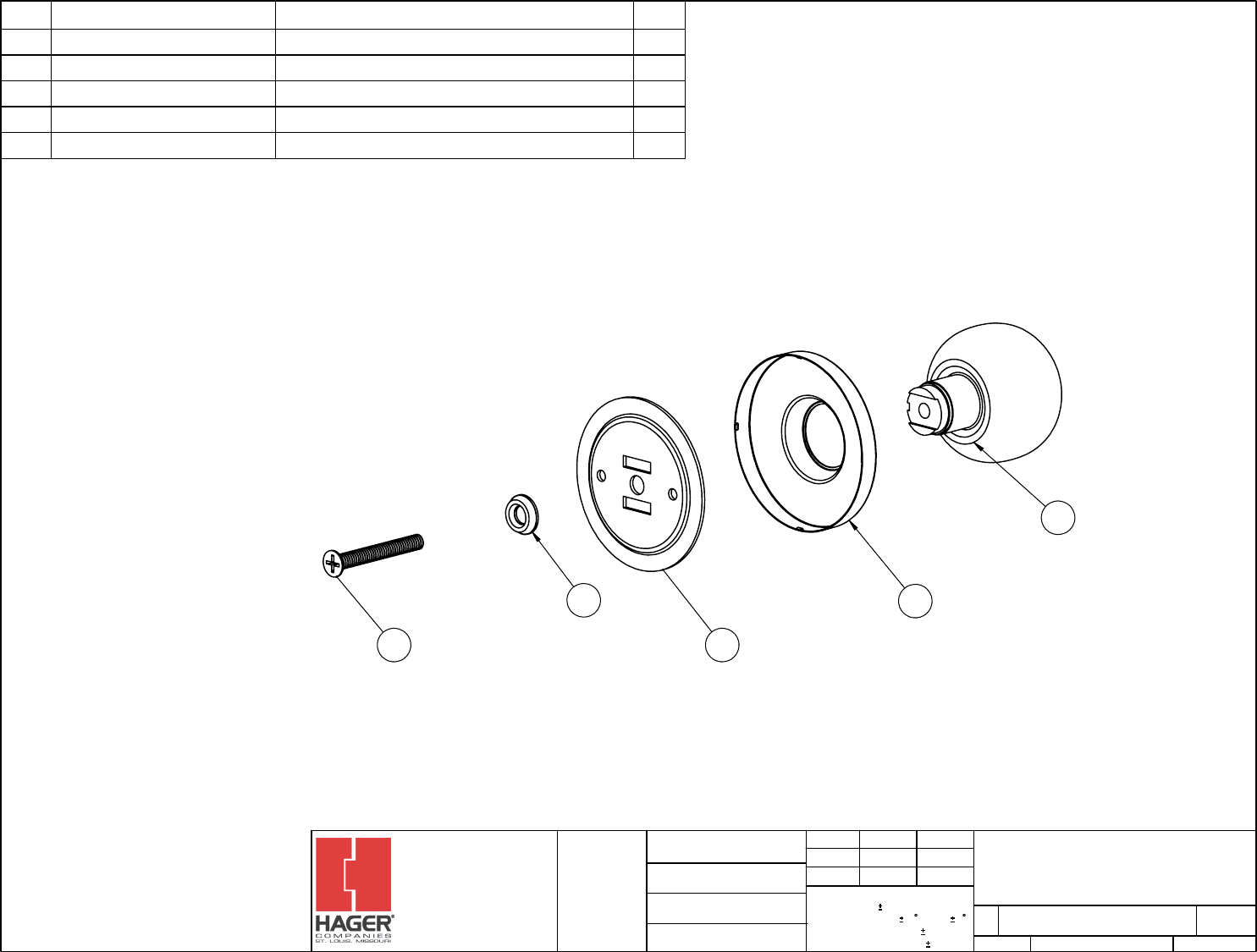

Parts Breakdown

1
2
3
4
5
ITEM
NO.
FILE NUMBER DESCRIPTION QTY.
1 S-LS00952 OUTSIDE ROSE (KNOB) 1
2 S-LS01058 DUMMY KNOB ASSEMBLY 1
3 S-LS00444 KNOB DUMMY MOUNTING PLATE 1
4 S-LS00448 FINISH WASHER 1
5 Flat Head 100 Screw_AI 1/4-20 x 2" FPHMS 1
WEIGHT: 0.06
02
S-LS01060
-
Material <not specified>
MRJ
11/22/2010
-
-
GRADE 2 - DUMMY KNOBSET
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED
IN THIS DRAWING IS THE SOLE
PROPERTY OF HAGER
COMPANIES. ANY REPRODUCTION
INPART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
HAGER COMPANIES IS PROHIBITED.
SHEET 1 OF 1
Q.A.
ENG. APPR.
DRAWN
TOLER ANCES:
FRACTIONAL:
0.015"
ANGULAR: MACH:
1 BEND: 1
TWO PLACE DECIMAL: 0.01"
THREE PLACE DECIMAL:
0.004"
DO NOT SCALE DRAWING
FINISH
MATERIAL
REV.
A
DWG. NO. SIZE
SCALE:1:4
HAGER RESERVES
THE RIGHT TO
MAKE DESIGN
CHANGES
WITHOUT NOTICE.
CALL HAGER
ENGINEERING AT
1-800-325-9995
FOR THE LATEST
REVISION DATE
OF TEMPLATE.
3517
