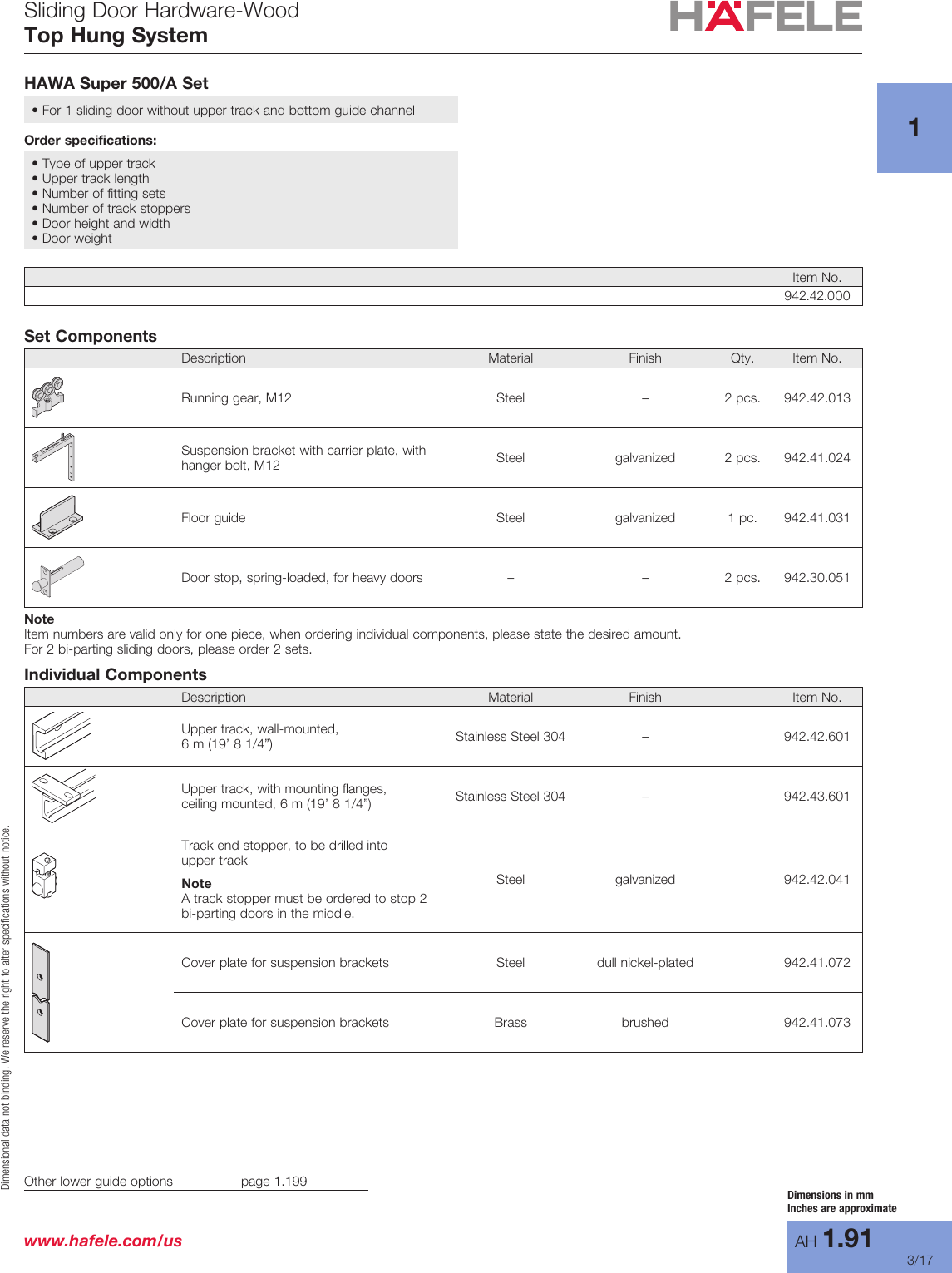

Sliding Door Hardware-Wood
Top Hung System
HAWA Super 500/A Set
• For 1 sliding door without upper track and bottom guide channel
Order specifications:
• Type of upper track
• Upper track length
• Number of fitting sets
• Number of track stoppers
• Door height and width
• Door weight
Item No.
942.42.000
Set Components
Description Material Finish Qty. Item No.
Running gear, M12 Steel – 2 pcs. 942.42.013
Suspension bracket with carrier plate, with
hanger bolt, M12
Steel galvanized 2 pcs. 942.41.024
Floor guide Steel galvanized 1 pc. 942.41.031
Door stop, spring-loaded, for heavy doors – – 2 pcs. 942.30.051
Note
Item numbers are valid only for one piece, when ordering individual components, please state the desired amount.
For 2 bi-parting sliding doors, please order 2 sets.
Individual Components
Description Material Finish Item No.
Upper track, wall-mounted,
6 m (19’ 8 1/4”)
Stainless Steel 304 – 942.42.601
Upper track, with mounting flanges,
ceiling mounted, 6 m (19’ 8 1/4”)
Stainless Steel 304 – 942.43.601
Track end stopper, to be drilled into
upper track
Note
A track stopper must be ordered to stop 2
bi-parting doors in the middle.
Steel galvanized 942.42.041
Cover plate for suspension brackets Steel dull nickel-plated 942.41.072
Cover plate for suspension brackets Brass brushed 942.41.073
Other lower guide options page 1.199
