Specification Sheet

Dimensional data not binding. We reserve the right to alter specifications without notice.
Dimensions in mm
Inches are approximate
www.hafele.com/us
AH
1.83
1
Sliding Door Hardware-Wood
Top Hung System
Confort guides page 1.198
Other lower guide options page 1.199

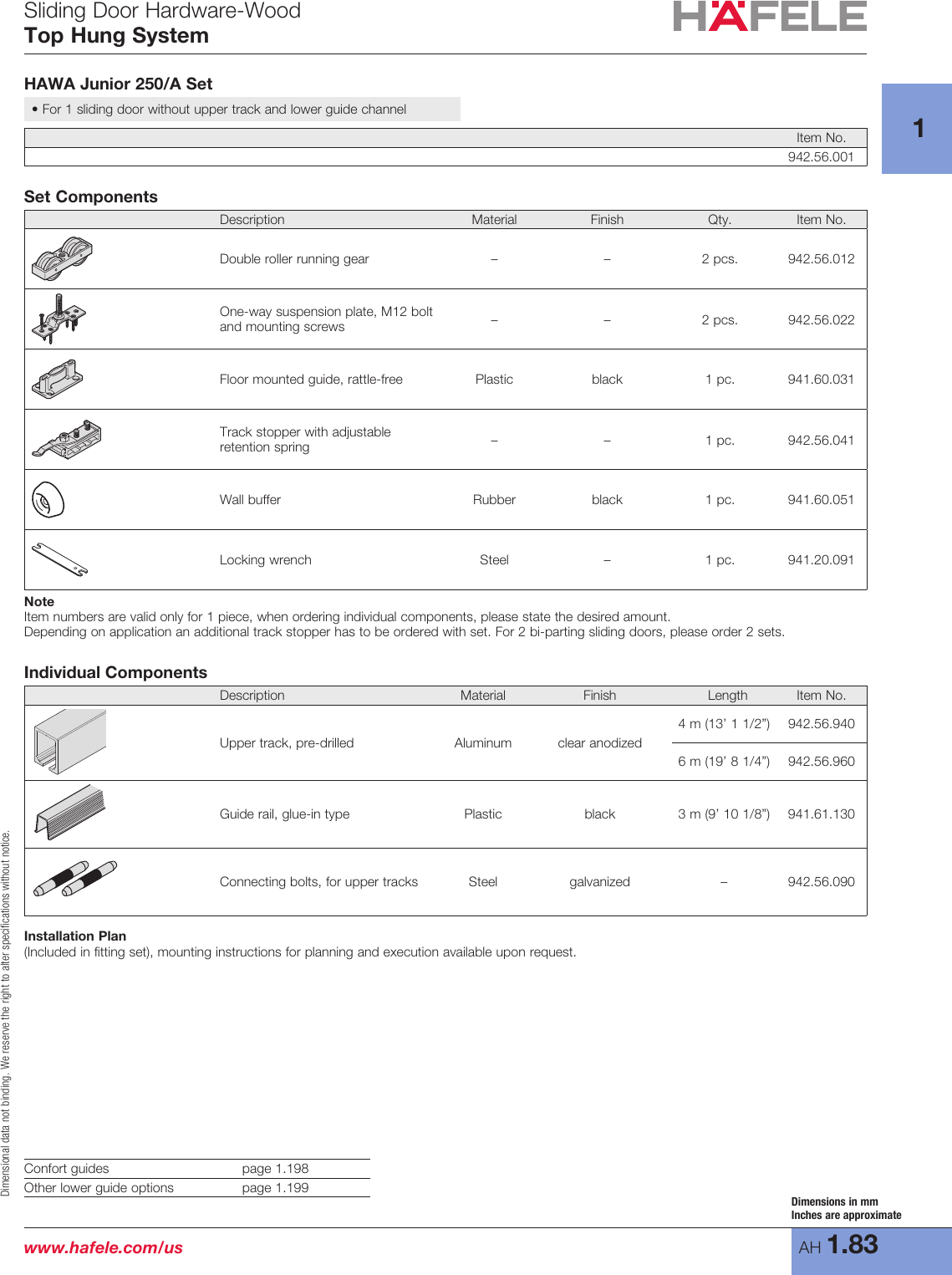

HAWA Junior 250/A Set
• For 1 sliding door without upper track and lower guide channel
Item No.
942.56.001
Set Components
Description Material Finish Qty. Item No.
Double roller running gear – – 2 pcs. 942.56.012
One-way suspension plate, M12 bolt
and mounting screws
– – 2 pcs. 942.56.022
Floor mounted guide, rattle-free Plastic black 1 pc. 941.60.031
Track stopper with adjustable
retention spring
– – 1 pc. 942.56.041
Wall buffer Rubber black 1 pc. 941.60.051
Locking wrench Steel – 1 pc. 941.20.091
Note
Item numbers are valid only for 1 piece, when ordering individual components, please state the desired amount.
Depending on application an additional track stopper has to be ordered with set. For 2 bi-parting sliding doors, please order 2 sets.
Individual Components
Description Material Finish Length Item No.
Upper track, pre-drilled Aluminum clear anodized
4 m (13’ 1 1/2”) 942.56.940
6 m (19’ 8 1/4”) 942.56.960
Guide rail, glue-in type Plastic black 3 m (9’ 10 1/8”) 941.61.130
Connecting bolts, for upper tracks Steel galvanized – 942.56.090
Installation Plan
(Included in fitting set), mounting instructions for planning and execution available upon request.
