Assembly Instructions

ManualsBrandsHabitat ManualsDining room furnitureChicago Solid Wood Table & 4 Two Tone Chairs

Assembly Instructions - Please keep for future reference

Important - Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline:

Argos = 0345 640 0800

Issue 1 - 21/04/15

Dimensions

Width - 40cm

Depth - 49.5cm

Height - 89cm

426/9610

404/4952

Chicago Dining Set - Chair

Summary of content (7 pages)

PAGE 1

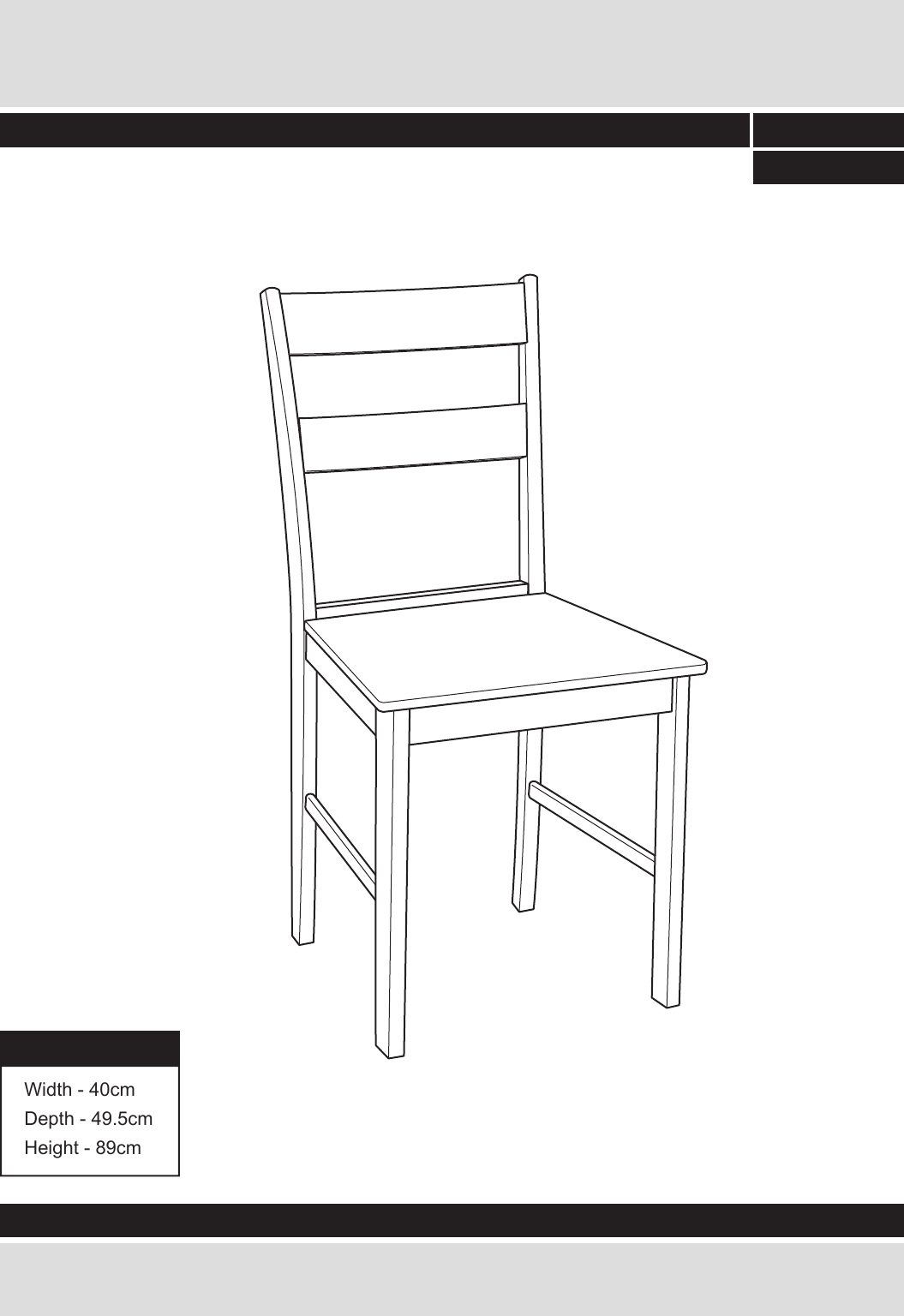

Chicago Dining Set - Chair Assembly Instructions - Please keep for future reference 426/9610 404/4952 Dimensions Width - 40cm Depth - 49.
PAGE 2
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the components and tools listed on the following pages. • During assembly do not stand or put weight on the product, this could cause damage. • Remove all fittings from the plastic bags and separate them into their groups. • Assemble the item as close to its final position (in the same room) as possible.
PAGE 3
Components - Parts If you have damaged or missing components, call the Customer Helpline: Argos = 0345 640 0800 Please check you have all the parts listed below Note: The quantities below are the correct amount to complete the assembly of 1 chair. 2 1 4 Backrest (8 x 40 x 89cm) Front Leg 3 Seat Side Rail x 2 5 Stretcher x 2 (4.5 x 37 x 42cm) (2 x 6 x 33cm) (2 x 39.5 x 40cm) (1.2 x 2.
PAGE 4
Assembly Instructions Step 1 Fitting dowels Insert wooden dowels C into holes on the side rails 4 as shown. C C C 4 4 C C C 4 C Step 2 C Attaching side rails Place the front leg 2 on a flat protected surface. Position the siderails 4 as shown and insert the wood dowels into holes on the front leg. Then fix using bolts A and spring washers B . Important note: Ensure to connect the front edge of the side rail which is marked with a hole as shown on the inset diagram.
PAGE 5
Assembly Instructions Step 4 Attaching backrest Then align and insert the stretchers 5 into holes on the front leg 2 . 4 2 5 1 Position the siderails 4 as shown and insert the wood dowel into center holes on backrest 1 . 2 5 5 4 4 1 Step 5 4 Securing backrest Fix the backrest 1 to siderail 4 using bolts A and spring washers B . A A B B 1 Note: Fasten bolts using allen key E but do not fully tighten at this stage. 4 Use oval head of allen key when tigthening bolts on corner positions.
PAGE 6
Assembly Instructions Step 6 Aligning the legs Carefully turn the chair upright and place on a flat surface. Make adjustments to ensure the chair frame is straight and the legs are even on the floor then fully tighten all bolts assembled in previous steps using allen key E . E Step 7 D Attaching seat Carefully place the seat 3 face down on a raised protected surface. 3 Position the chair on the centre of the seat and fix through holes on side rails 4 and front leg 2 using screws D .
PAGE 7
Assembly Instructions Step 8 D Securing the stretchers Secure the stretchers 5 to the backrest 1 and front leg 2 using scews .D . 1 Tighten screws using crosshead screwdriver. 5 D D 5 5 D D 1 2 Carefully turn over the unit after assembly. Assembly is complete.
