DEMO BOARD OVERVIEW
7
DEMO BOARD
OVERVIEW
The demo board is a signal generator board
capable of producing waveforms which represent
various real life scenarios you might encounter.
You can use the board as a training kit to learn
how to properly view signals, or use it as a
generic signal generator.

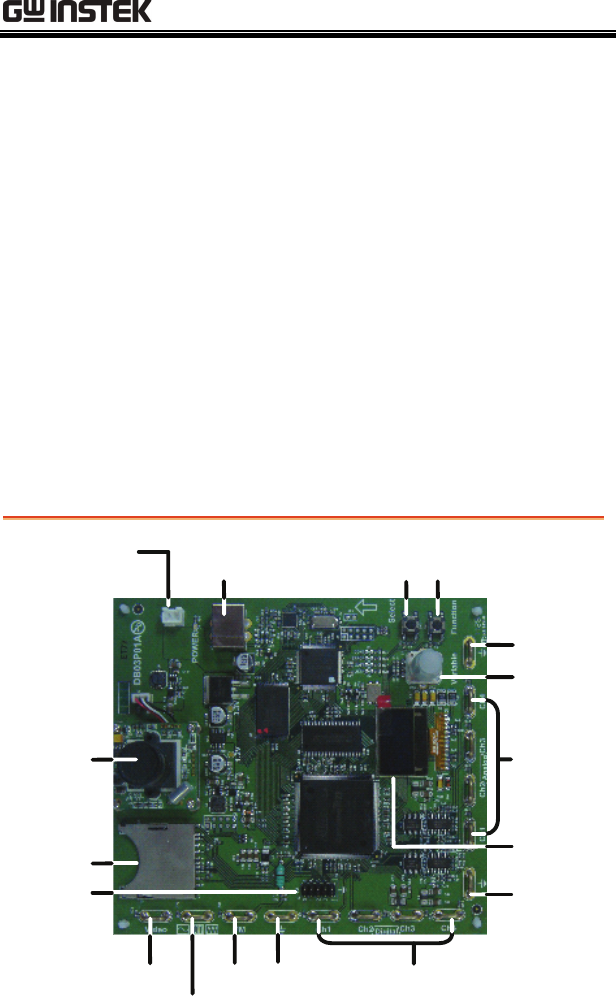

Appearance
Video FM
Function
key
Function
Generato
r
SD Card
Analog
Ch1~Ch4
GND Digital
Ch1~Ch4
Variable
Knob
GND
Power in
Auxiliary
Power in
Camera
Module
GND
Select
LA input
(For 2000A
only)
OLED
Display
key
