Instruction Manual

GDB-03 Demo Module User Manual
87

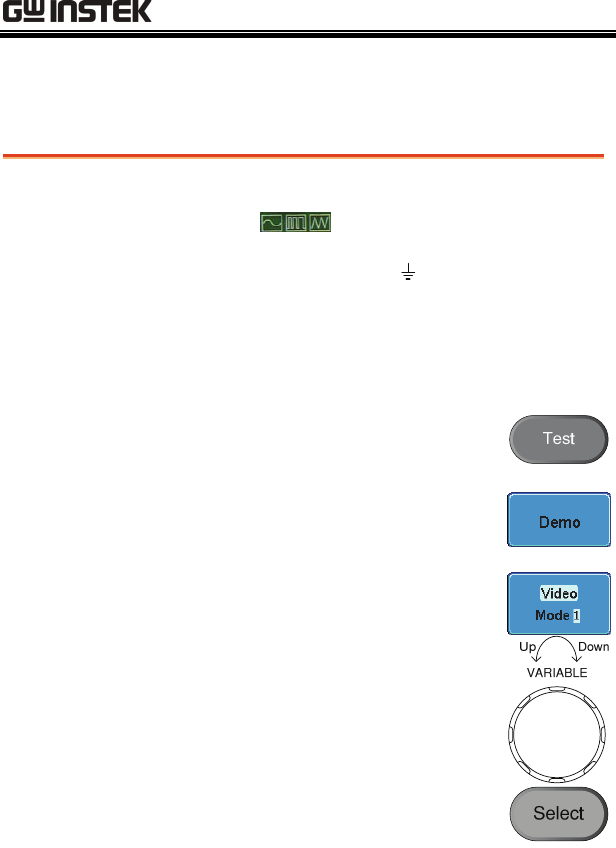

Display Sine, Square and Triangle waveform (Generator
mode)
1. Connect the probe to the terminal
marked
on the demo
board. Connect the grounding clip
to the ground terminal (
).
2. Connect the other end of probe to
the CH1 terminal on the GDS-
2000A.
3. Press the Test key on the front
panel of the GDS-2000A.
4. Press the Demo button.
5. Press the Video Mode button (F1
button). Use the Variable knob to
select Generator mode. Press the
Select button to confirm Generator
mode is selected.
