GDB-03 Demo Module User Manual
85
Display Video (Video mode)
Step

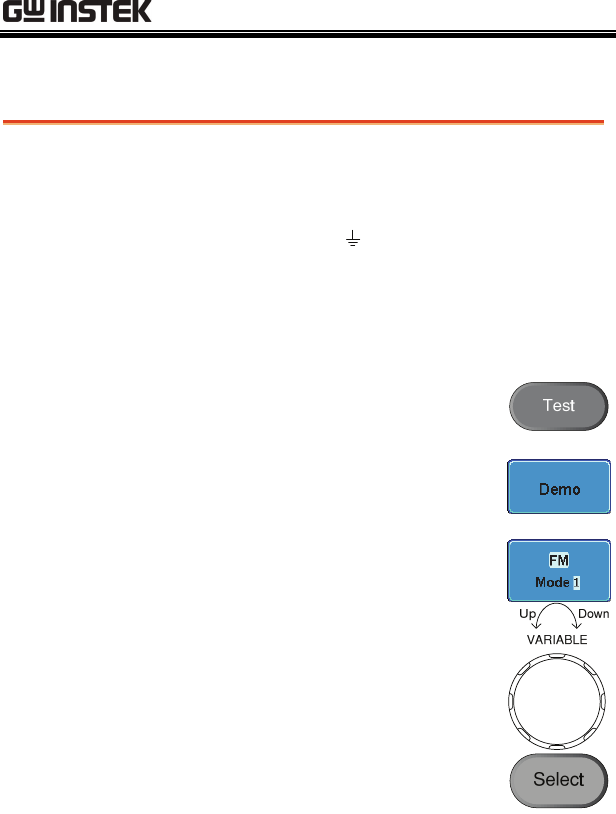

1. Connect a probe to the Video
terminal on the demo board.
Connect the grounding clip to the
ground terminal (
).
2. Connect the other end of probe to
the CH1 terminal on the GDS-
2000A.
3. Press the Test key on the front
panel of the GDS-2000A.
4. Press the Demo button.
5. Press FM button (F1 button). Use
the Variable knob to select Video
mode. Press the Select button to
confirm Video mode is selected.
