Instruction Manual

GDB-03 Demo Module User Manual
68

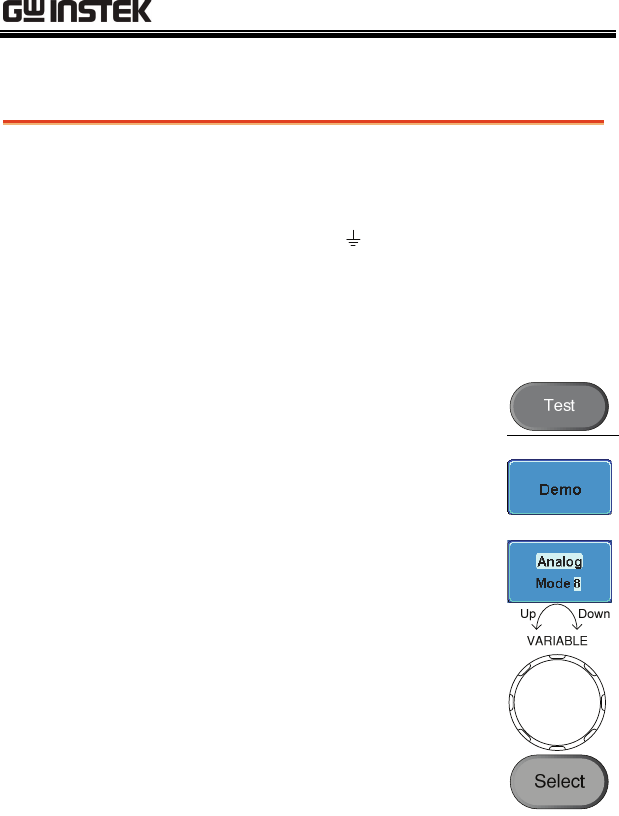

Display Pulse Width (Digital Mode 1)
Step
1. Connect the probes to the
terminals marked Digital CH1~
CH4, and grounding clips to
ground terminal (
).
2. Connect the probes to
corresponding CH1~CH4
terminals on the GDS-2000A.
3. Press the Test key on the front
panel of GDS-2000A.
4. Press the Demo button.
5. Press the Analog Mode button (F1
button). Use the Variable knob to
select Digital mode. Press the Select
button to confirm Digital Mode 1 is
selected.
