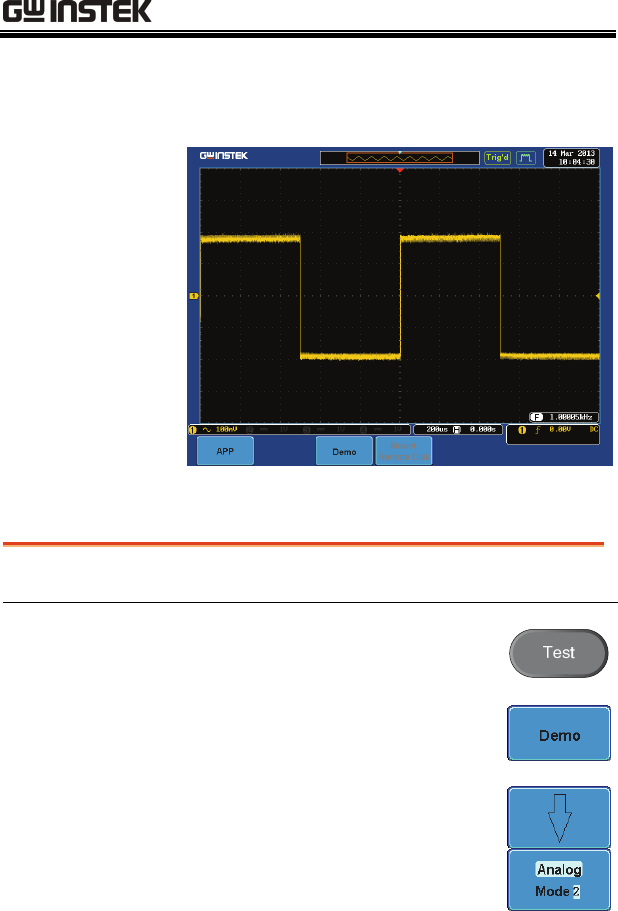

8. A waveform as follow shown
appears.
Display XY mode(Analog Mode 2)
Background
Display 2 sets of X-Y waveform at the same time.
Step
1. Press the Test key on the front
panel of GDS-2000A.
2. Press the Demo button.
3. Press the Down button to select
Analog Mode 2. A screen
confirming Analog Mode 2 is
selected as shown below appears.
