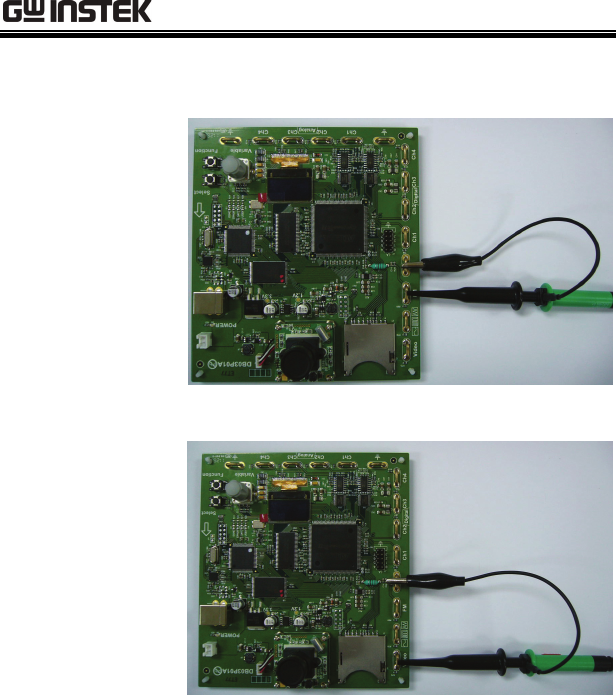

For displaying FM waveform
For displaying video waveform
13. Connect the other end of the probe(s) to the
corresponding CH1 to CH4 terminals on the
GDS-2000A.
14. Connect the GDS-2000A and the demo board
with the Logic Analyzer Probe as shown in the
photo below for displaying the LA source.
