GDB-03 Demo Module User Manual

Note

You can set the position of the cursors to set the

range of the Gating Measurement.

Display Pulse Runt (Analog Mode 8)

Step

1. Press the Test key on the front

panel of the GDS-3000.

2. Press the Demo button.

3. Press the Down button to select

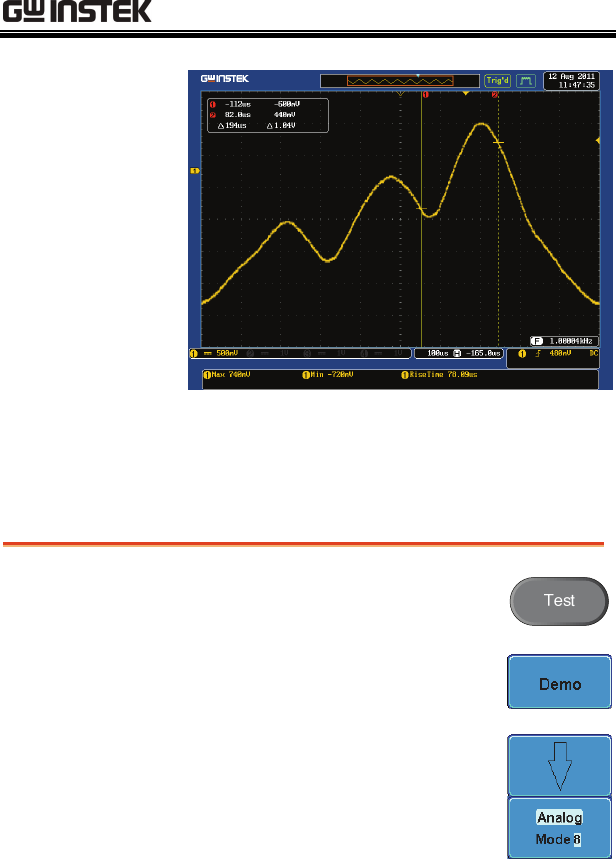

Analog Mode 8. A screen

confirming Analog Mode 8 is

selected as shown below appears.
