Instruction Manual

GDS-3000
27
Display Gating Measurement (Analog Mode 7)
Step
1. Press the Test key on the front
panel of the GDS-3000.
2. Press the Demo button.

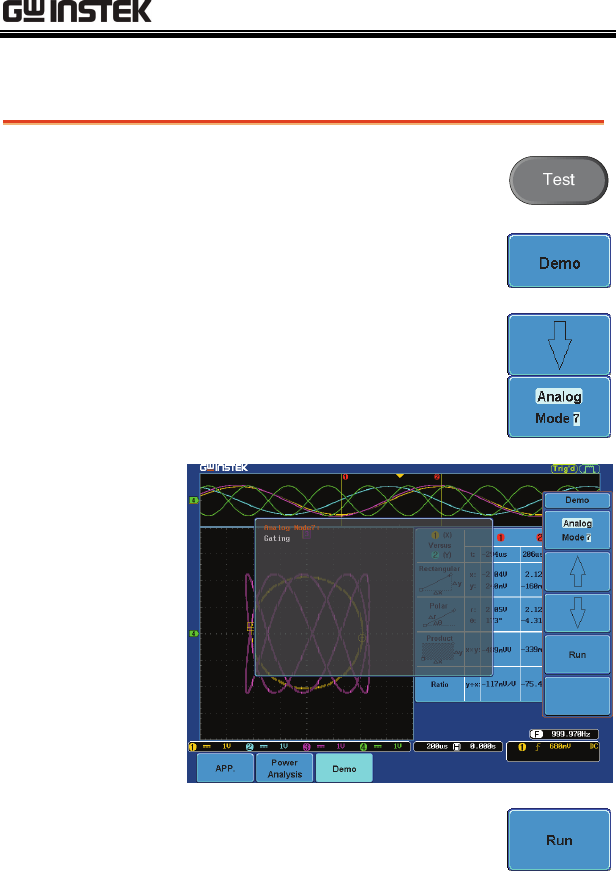

3. Press the Down button to select
Analog Mode 7. A screen
confirming Analog Mode 7 is
selected as shown on the next page
appears.
4. Press the Run button to display the
waveform.
