Display XY mode(Analog Mode 6)
Background
Display 2 sets of X-Y waveform at the same time.
Step

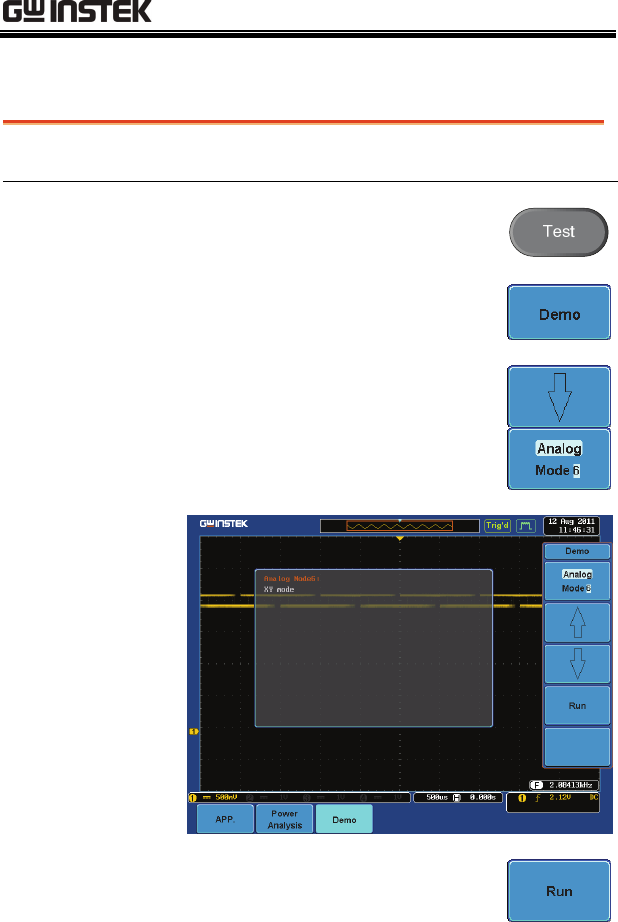

1. Press the Test key on the front
panel of the GDS-3000.
2. Press the Demo button.
3. Press the Down button to select
Analog Mode 6. A screen
confirming Analog Mode 6 is
selected as shown below appears.
4. Press the Run button to display the
waveform.
