Display Options (Continued)
Vessel Orientation
The Artemis Dashboard supports four different arrangements of the Bird’s Eye View so that
the operator can choose the one which best represents his surroundings.
For instance, if the operator is facing forward when using the Dashboard, he would want
the bow of the vessel in the BEV to point upwards, so that a remote station located on the
starboard side of the vessel is shown on the right-hand side of the BEV.

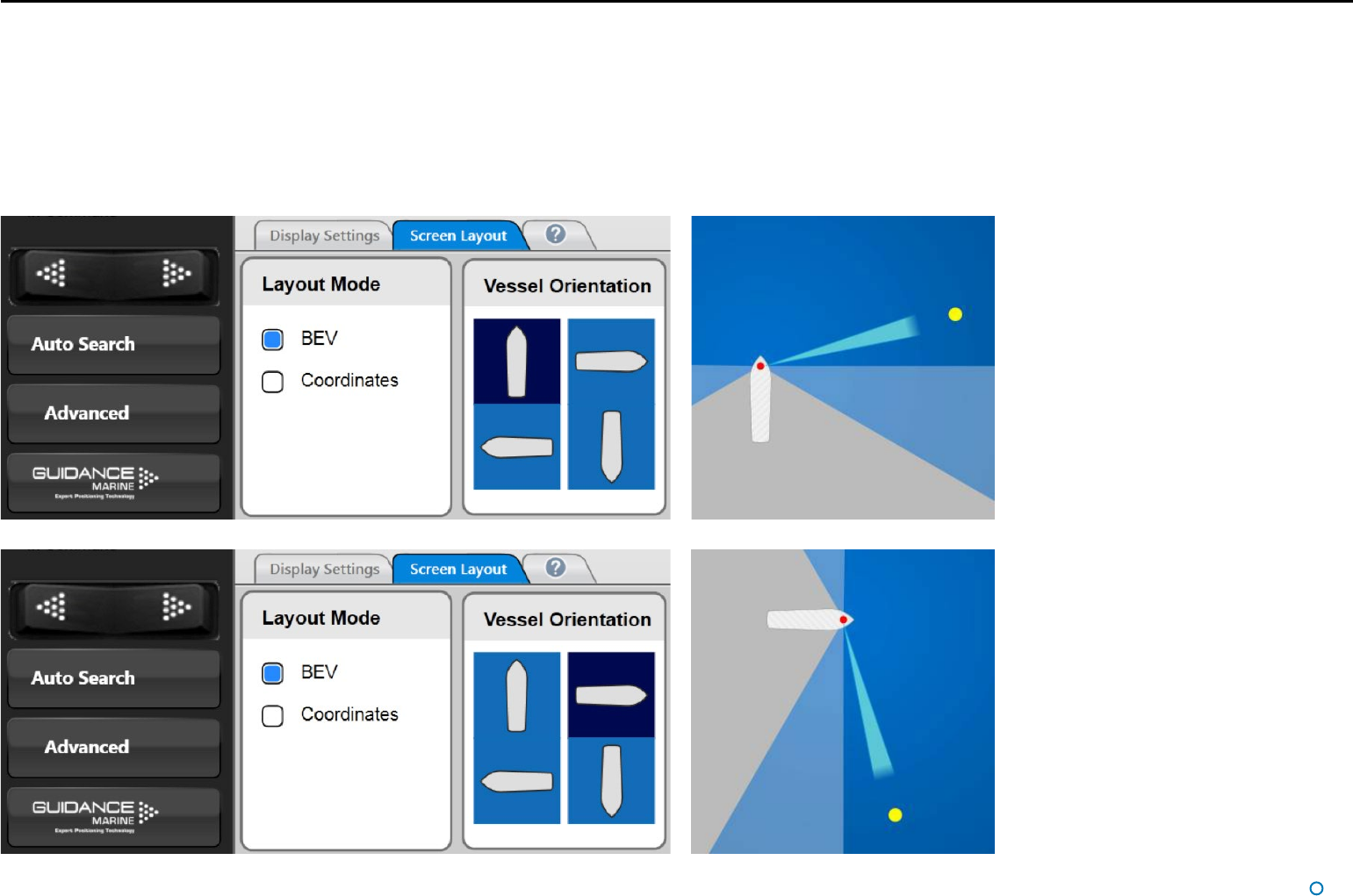

To set Vessel Orientation:
1. Click on Advanced > Display Options > Screen Layout.
2. Click on the vessel outline that points in the required direction.
Alternatively, rotate the vessel clockwise by clicking F2 or the Rotate Vessel Clockwise
hotkey. Rotate anti-clockwise by clicking F3 or the Rotate Vessel Anti-Clockwise hotkey.
Hotkey Buttons
