6.2.2. Single Tag Operation Testing
After entering the main interface of R-Tool test software, select " Single Tag Test" ,
carry out the procedure as shown in the following figure ①,②,③,④ and ⑤ for tags
test:
①
②
③
⑤④

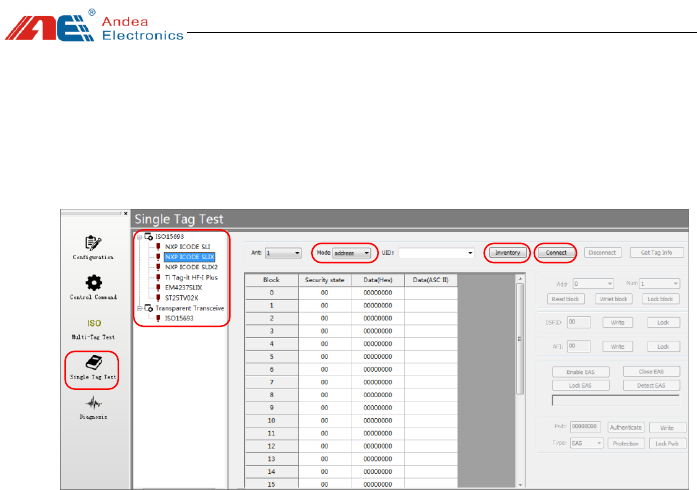

Figure 39 Single tag operation test steps
Note:
Step 1: In the software main interface, select the menu "Single Tag Test";
Step 2: In the "Single Tag Test" interface, select the type of tag to be operated;
Step 3: mode: none address, address.
1) For a single tag, select the "none address" mode.
2) For multiple tags, select the "address" mode.
Step 4: Click the "Inventory" button to display the UID list in UID drop-down box.
Step 5: 1) For a single tag: click the "Connect" button;
2) For multiple tags: in UID drop-down box, select the tags required to be
operated, and then click the "Connect" button;
After the above steps, you can read and write tags, as shown below:
