User's Manual

6
A. FM wire antenna
While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.
B. AUX IN jacks
For audio sources with RCA jacks, use plug on end of the RCA cable into these jacks and the
other into the audio source. Be sure to connect the white plug to the white jack (Left) and the red
plug to the red jack (Right).
C. AC Power Cord
Plugs into a wall outlet.

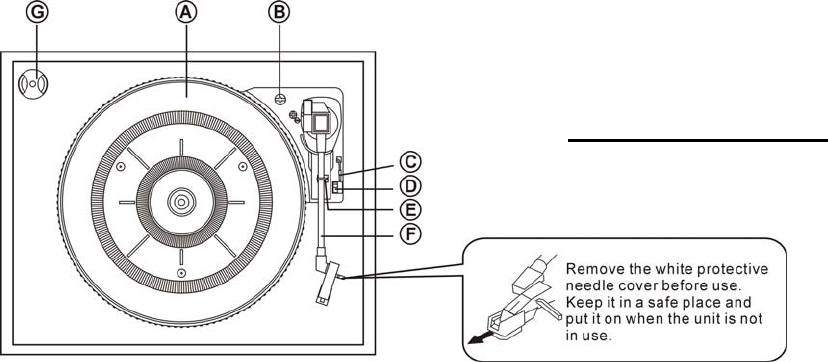

Parts of the Turntable
A. Turntable.
B. Safety Screw (for transport) Before using the unit, turn the screw
clockwise using a coin or screwdriver.
Important: When you transport the unit, turn the screw counterclockwise to secure the turntable.
The silver screw on the back of the turntable is a balancer for both the turntable as well as for
the tone arm.
Please turn this screw with a coin to either left or right and test by moving your tone arm to the
middle of the spindle. Please note that this screw is a balancer and will have to be adjusted until
the tone arm moves freely to the end of the record (middle of the spindle) without any resistance
before using the turntable phonograph.
C. Cue-lever. Use this lever to lift the tone arm.
D. Speed Selector.
E. Tone Arm holder.
F. Tone Arm.
Before use, completely loosen the fixed rope on the tone arm and uplift tone
arm.
G. 45 RPM adaptor.
