User Guide

21
Step 4
Insert the stripped power cable wires into
the appropriate terminals on the MASTER
OPERATOR terminal block. The green wire
should be inserted into the GRN terminal, the blue
wire into BLU, the orange wire into ORG, black
wire into BLK, and the red wire into the RED
terminal.
Tighten the set screws against the end of the wires.
A dab of petroleum jelly on each terminal will help
prevent corrosion.
Correct
Wrong Wrong
Wire
Terminal 
Block
Terminal 
Block
Terminal 
Block
Wire
Wire

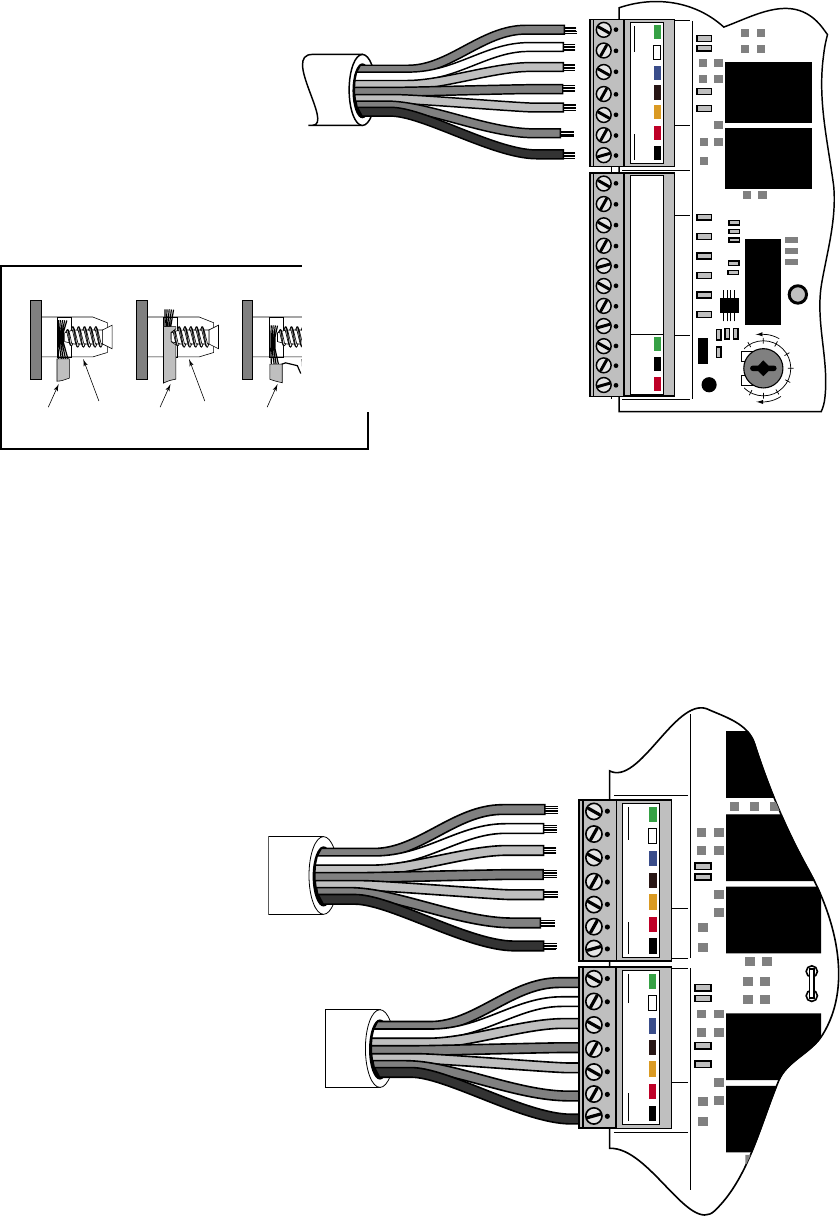

Connecting Operator Power Cables
MASTER Operator
Step 6
Strip approximately
3
/16" of insulation from
each wire of the 40 foot power cable. Twist each
exposed wire tightly. Insert the second operator
power cable upward through the right strain relief
(if necessary, loosen the sealing nut). Thread
approximately 4" of wire into the control box.
Retighten strain relief (on the black sheath of the
power cable) until the power cable locks into place.
Insert the stripped wires of the power cable into the
appropriate terminals on the SLAVE OPERATOR
terminal block. The green wire should be inserted
into the GRN terminal, the blue wire into BLU,
the orange wire into ORG, black wire into BLK,
and the red wire into the RED terminal.
Tighten the set screws against the end of the wires.
Step 5
Review the Installation Overview illustration on page 12 before proceeding.
Cut a slot into the driveway to accommodate PVC conduit (not provided). The buried conduit will protect the 40 foot power
cable from automobile tires, lawn mower blades, weed eaters, and grazing animals. Pull the 40 foot second operator power
cable through the conduit and secure them into the slot in the driveway.
