2.2.9. 2500MHz Frequency Selection (TD-LTE)

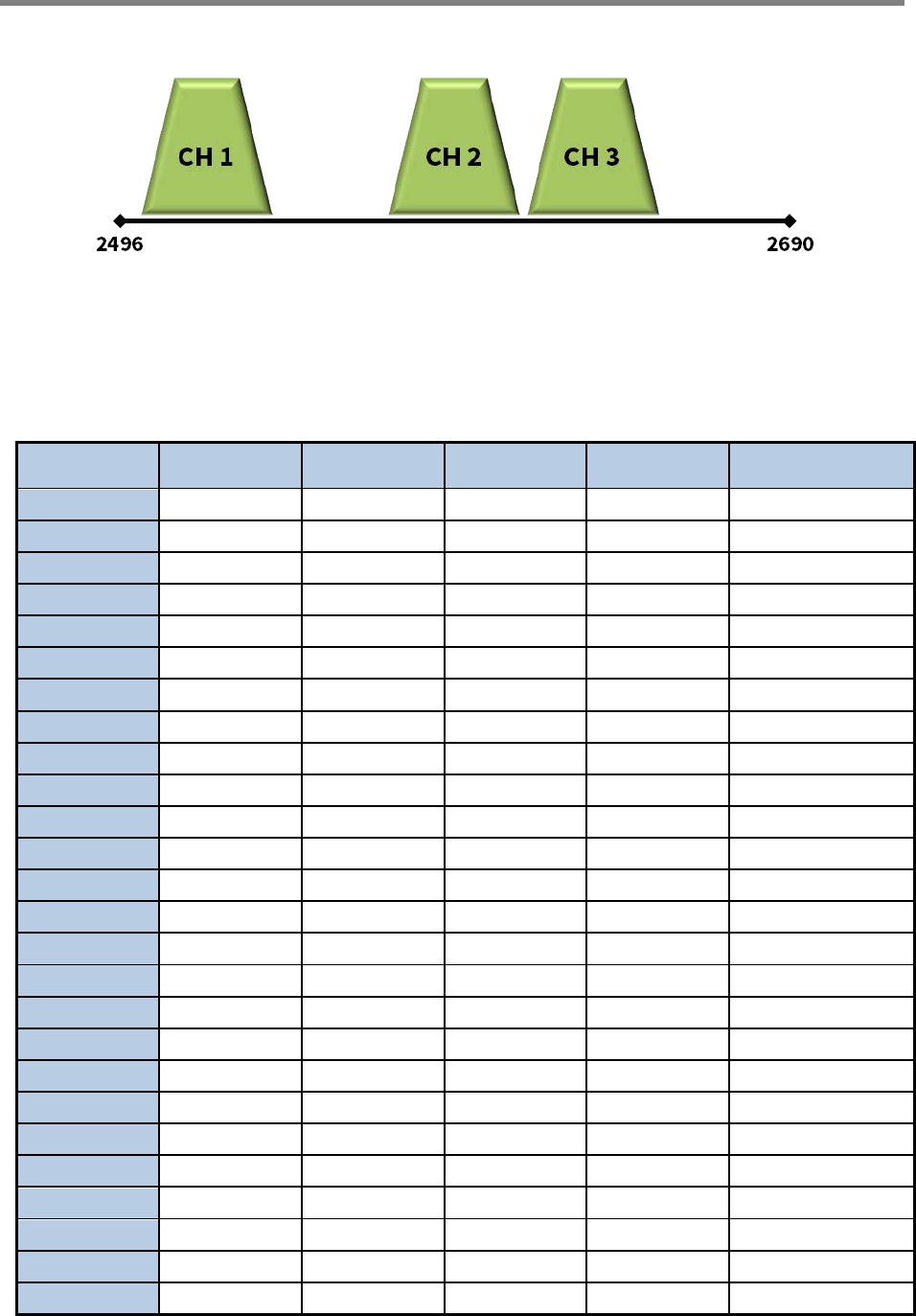

2500MHz AMP Unit is basically complied with LTE Band block 41, where maximum three
non-contiguous filtering configurations are available. Following table shows user selectable
channel numbers.
Ch. Name Start Center Stop Bandwidth Regulatory Ch.
L01 2497.80 2506.80 2515.80 18.00 BRS1,A1,A2,A3
L09 2501.30 2510.30 2519.30 18.00 BRS1,A1,A2,A3,B1
L16 2504.60 2513.60 2522.60 18.00 A1,A2,A3,B1
L23 2507.80 2516.80 2525.80 18.00 A1,A2,A3,B1,B2
L30 2511.10 2520.10 2529.10 18.00 A2,A3,B1,B2,B3
L35 2514.60 2523.60 2532.60 18.00 A3,B1,B2,B3
L02 2517.60 2526.60 2535.60 18.00 A3,B1,B2,B3,C1
L10 2521.10 2530.10 2539.10 18.00 B1,B2,B3,C1
L17 2524.40 2533.40 2542.40 18.00 B1,B2,B3,C1,C2
L24 2527.60 2536.60 2545.60 18.00 B2,B3,C1,C2,C3
L31 2530.90 2539.90 2548.90 18.00 B3,C1,C2,C3
L36 2534.40 2543.40 2552.40 18.00 B3,C1,C2,C3,D1
L03 2537.40 2546.40 2555.40 18.00 C1,C2,C3,D1
L11 2540.90 2549.90 2558.90 18.00 C1,C2,C3,D1,D2
L18 2544.20 2553.20 2562.20 18.00 C2,C3,D1,D2,D3
L25 2547.40 2556.40 2565.40 18.00 C3,D1,D2,D3
L04 2574.10 2583.10 2592.10 18.00 A4,B4,C4,D4
L12 2578.10 2587.10 2596.10 18.00 A4,B4,C4,D4,G4
L19 2582.10 2591.10 2600.10 18.00 B4,C4,D4,G4
L26 2584.00 2593.00 2602.00 18.00 B4,C4,D4,G4,F4
L32 2586.10 2595.10 2604.10 18.00 C4,D4,G4,F4
L37 2589.90 2598.90 2607.90 18.00 C4,D4,G4,F4,E4
L05 2593.90 2602.90 2611.90 18.00 D4,G4,F4,E4
L06 2619.80 2628.80 2637.80 18.00 BRS2,E1,E2,E3
L13 2623.30 2632.30 2641.30 18.00 BRS2,E1,E2,E3,F1
L20 2626.60 2635.60 2644.60 18.00 E1,E2,E3,F1
