2.2.7. 2100MHz Frequency Selection (AWS)

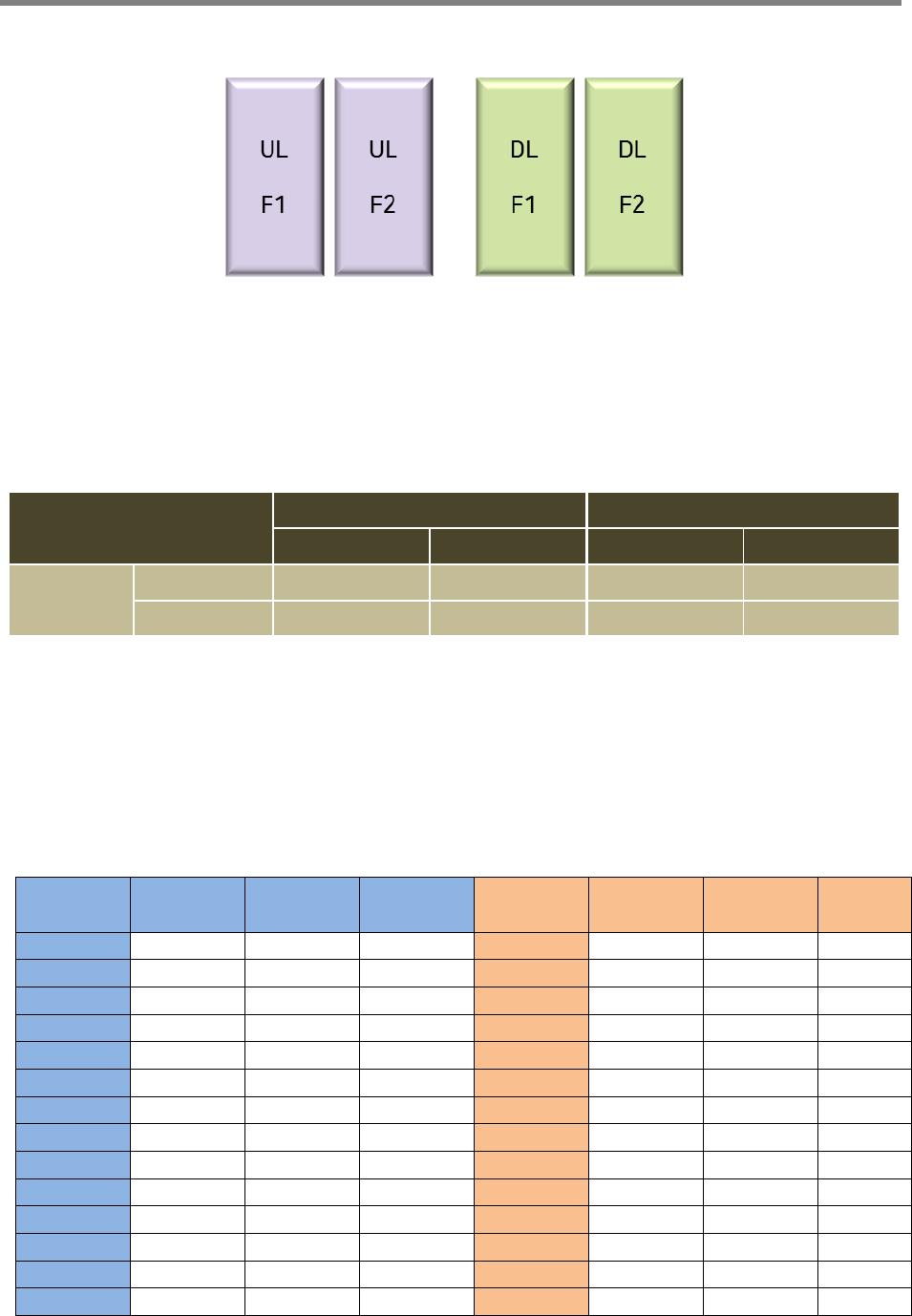

<Figure 7> 2100MHz Band Frequency
2100 Amp Unit has basically satisfies the CDMA standard, and supports non-contiguous
2 block. If you select “contiguous button”, Web UI has select the contiguous F band.
And you don’t select “Contiguous button”, Web UI has select the each band of F1 and
F2. Frequency range of each band as follows.
BAND
Downlink Uplink
Start Stop Start Stop
F
F1 2145.15 2149.85 1745.15 1749.85
F2 2150.15 2154.85 1750.15 1754.85
2.2.8. 2600MHz Frequency Selection (BRS)
2600MHz AMP Unit is basically complied with Band block, where maximum two non-contiguous
filtering configurations are available. Each sub block is adjustable per 5MHz bandwidth step up to
40MHz.
RF
Downlink
Center
Frequency
start stop
RF
Uplink
Center
Frequency
start stop
A1' 2622.5 2620 2625 A1 2502.5 2500 2505
A2' 2627.5 2625 2630 A2 2507.5 2505 2510
A3' 2632.5 2630 2635 A3 2512.5 2510 2515
A4' 2637.5 2635 2640 A4 2517.5 2515 2520
A5' 2642.5 2640 2645 A5 2522.5 2520 2525
A6' 2647.5 2645 2650 A6 2527.5 2525 2530
A7' 2652.5 2650 2655 A7 2532.5 2530 2535
A8' 2657.5 2655 2660 A8 2537.5 2535 2540
A9' 2662.5 2660 2665 A9 2542.5 2540 2545
A10' 2667.5 2665 2670 A10 2547.5 2545 2550
A11' 2672.5 2670 2675 A11 2552.5 2550 2555
A12' 2677.5 2675 2680 A12 2557.5 2555 2560
A13' 2682.5 2680 2685 A13 2562.5 2560 2565
A14' 2687.5 2685 2690 A14 2567.5 2565 2570
