2.2.4. 800MHz Frequency Selection (iDEN)

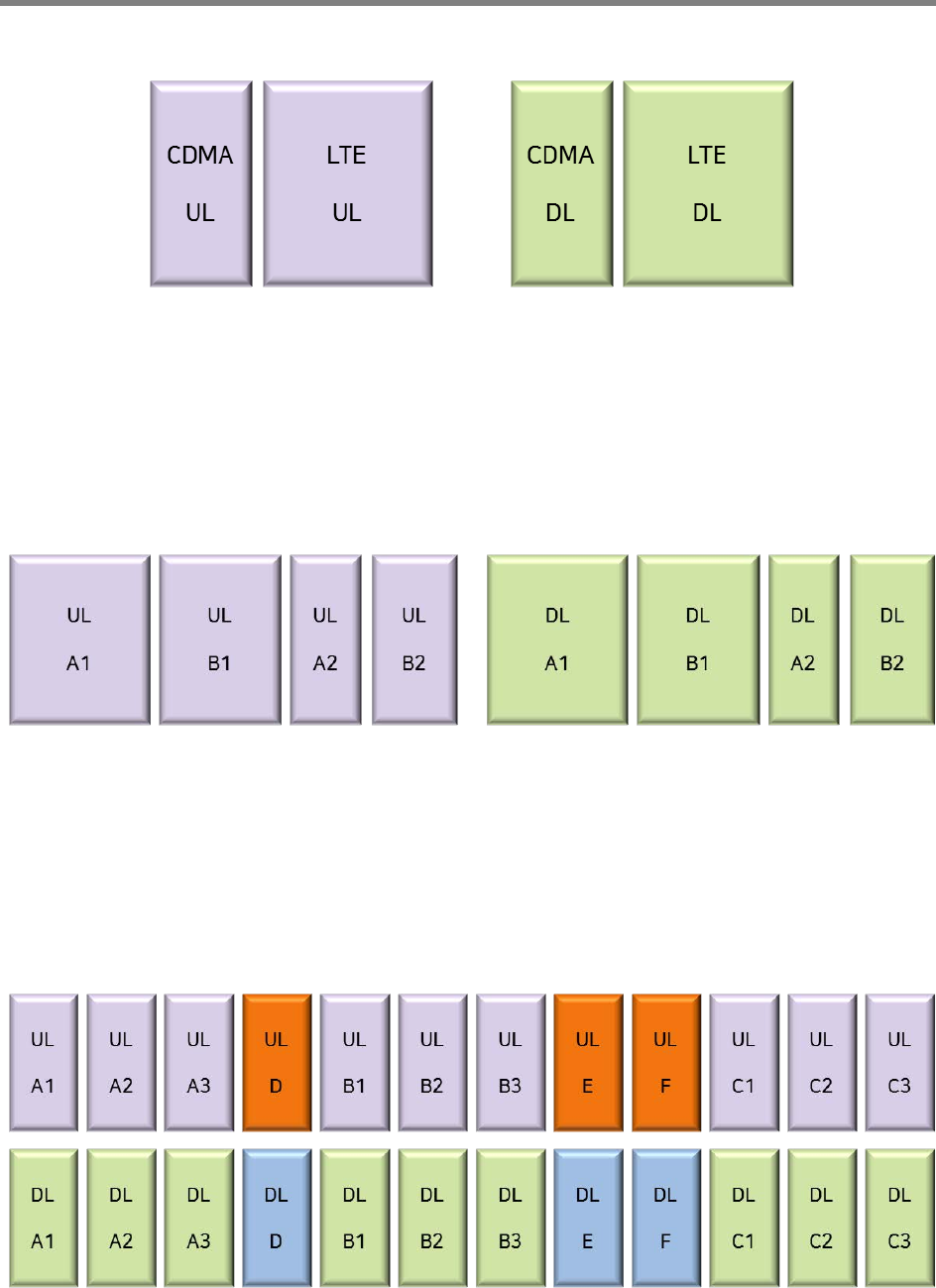

<Figure 6> Smart-Cell Repeater 800 Block Diagram
800MHz Amp Unit has service Cellular 1FA and provides LTE 5MHz (25RB) by default. On
/ Off control of the service Block is possible. Each block‘s bandwidth are as follows.
(CDMA[UL] – 1.25MHz, LTE[UL] – 4.505MHz, CDMA[DL] – 1.25MHz, LTE[DL] – 4.505MHz)
2.2.5. 850MHz Frequency Selection (Cellular)
<Figure 7> Smart-Cell Repeater 850 Block Diagram
850MHz Cellular service provides by default, and supports up to two non-contiguous
blocks. Each block‘s bandwidth are as follows, and it is possible to choose any
combination of any band. (A1 - 11MHz, B1 - 10MHz, A2 - 1.5MHz, B2 - 2.5MHz.)
2.2.6. 1900MHz Frequency Selection (PCS)
<Figure 8> 1900MHz Band Frequency
