2. SYSTEM CONFIGURATION
2.1. Smart-Cell Repeater Service Network Configuration
Smart-Cell RF Repeater is designed for improving coverage and capacity of Verizon’s LTE
& CDMA services nationwide. The repeater can provide coverage for all troubled areas
such as suburban, shadow areas, backside of mountains, urban and metropolitan locations.
GST products are easy to install, have remote status monitoring and control functions
(NMS System) via wired line and wireless modems.

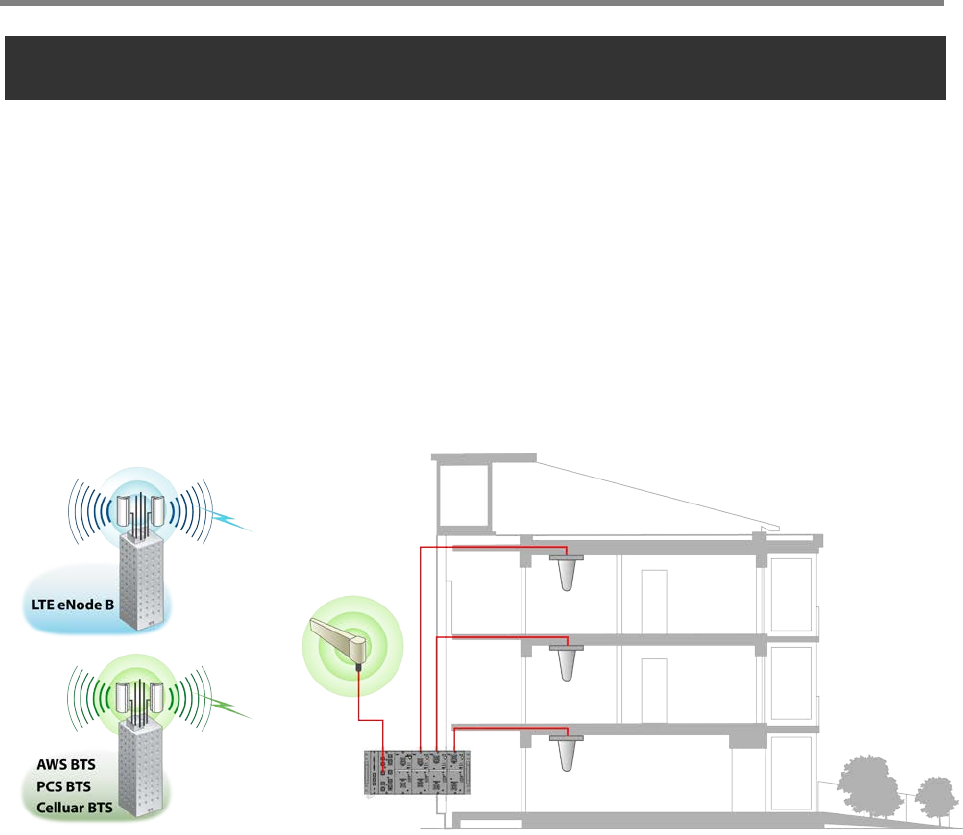

<Figure 1> In-building Repeater Service Organization
