Smart-Cell Repeater
20
• 2100MHz: 5MHz/10MHz
Power
Monitoring
• Monitoring repeater’s output level.
Oscillation Check
• Isolation Check in initial set up or Reset.
• When Oscillation occurred, repeater attempts to stabilize Isolation through Gain
control function.
• Shutdown repeater when oscillation still occurs in the minimum Gain.
• Automatic Recovery Algorithm conversion after shutdown status.
Automatic
Recovery
• When repeater is shutdown, it periodically recovers output power of repeater
then monitors alarming.
Security
• Support HTTPS for Web Browser security.
• User authentication through User ID and Password.

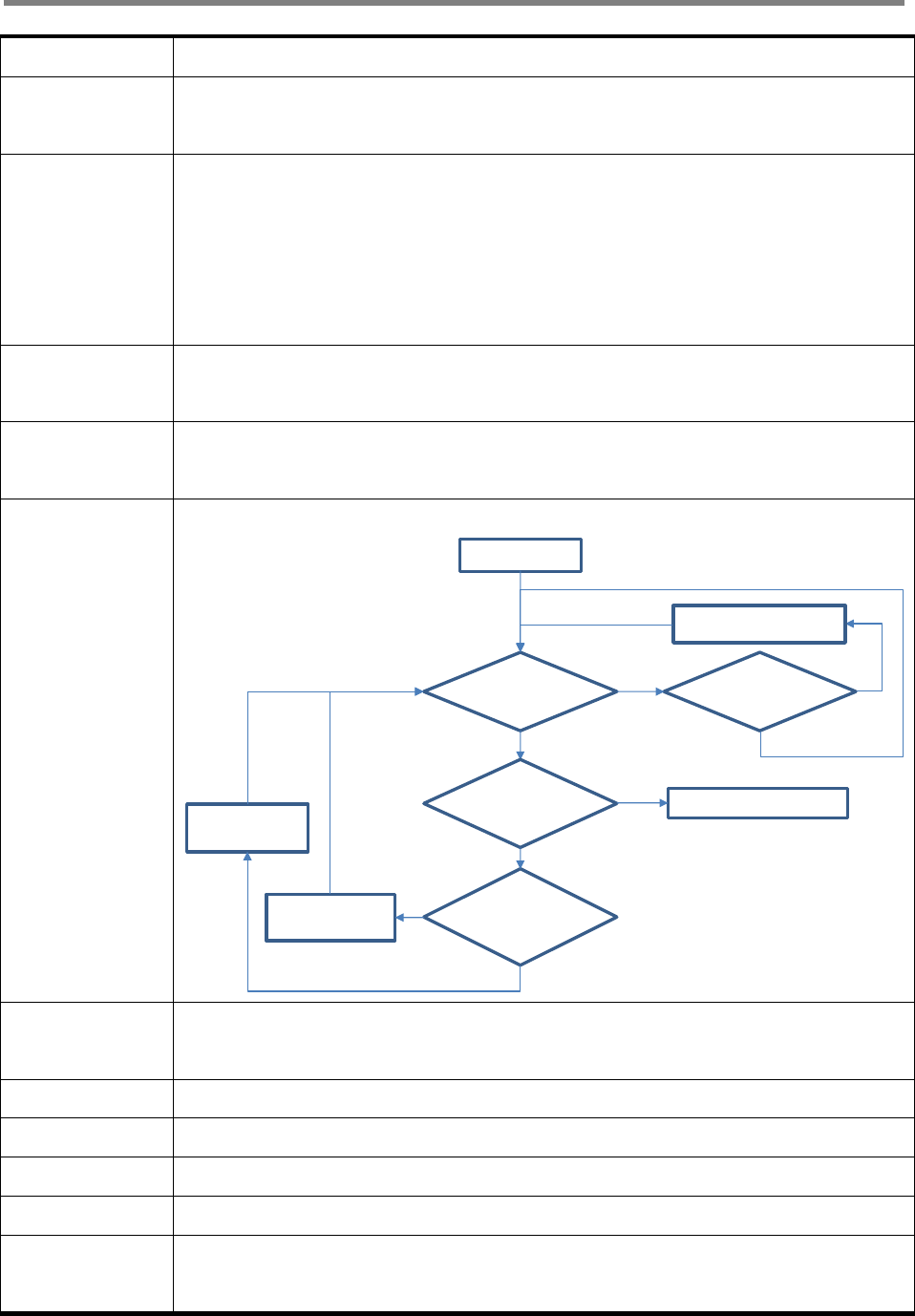

AOC
Auto
Oscillation
Check Function
• AOC Use for prevented oscillation
VSWR
Monitoring
• Monitoring VSWR of Service ANT Port.
• Reporting VSWR Alarm and Shutdown when the rate is 3:1.
DHCP Client • Automatic IP assignment.
DHCP Server • Server function for automatic IP assignment.
Web GUI • Remote and local user browser support through Web Browser.
SNMP Agent • NMS report via SNMPv2 Trap.
LED Display
• LED displays power and operation status on front side of repeater system.
• Input and Output signal levels are verified by LED bars.
AOC on
Isolation Detect
< Isolation Limit
ALC Attenuation
+5dB
Isolation Detect
< Isolation Limit-4
ALC Attenuation
+1dB
No
Yes
ALC Attenuation
≥30dB
Shutdown
Yes
Yes
No
Isolation Detect
> Isolation Limit-3
ALC Attenuation-1dB
Yes
No
No
