User's Manual

Sprint User Manual

3G Indoor Repeater

① RUN: Green light ON (Off: Green light off)

② ALARM: Green light in normal status, Red light in alarming

③ SHUT DOWN: Green light in normal status, Red light in Shutdown status

④ Number of LED bar on front side of repeater will show input power signal level

Less than -86dBm: LED 1 bar

-85dBm ~ -70dBm: LED 2 bar

-69dBm ~ -54dBm: LED 3 bar

-53dBm ~ -41dBm: LED 4 bar

More than -40dBm: LED 5 bar

⑤ Number of LED bar on front side of repeater will show output power signal level

Less than +14dBm: LED 1 bar

+15dBm ~ +16dBm: LED 2 bar

+17dBm ~ +18dBm: LED 3 bar

+19dBm ~ +21dBm: LED 4 bar

More than +22dBm: LED 5 bar

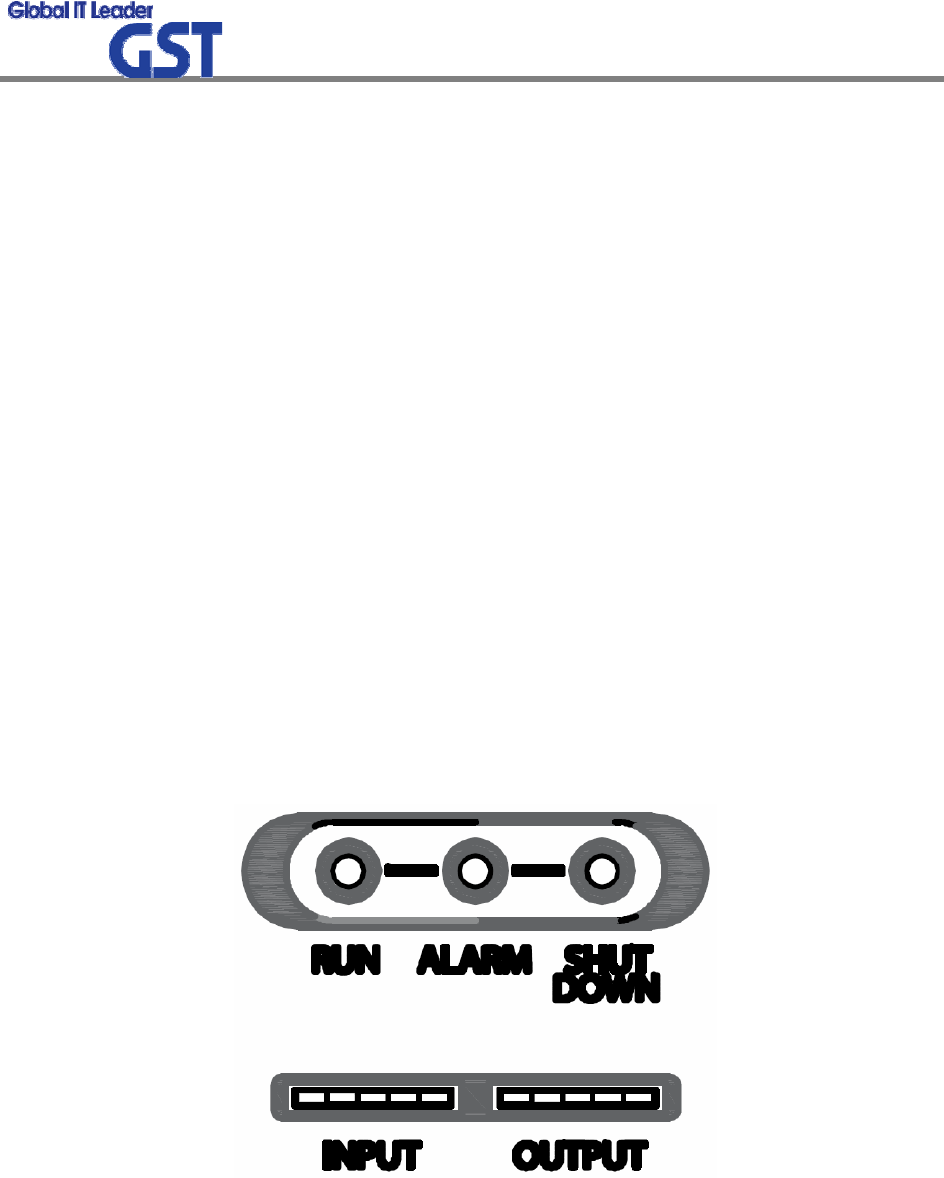

<Pic.11> Front LED

b. Verification of operation status

- User should verify following status with Output monitoring terminal, which is provided by

Spectrum Analyzer

- Output power generation status, system spurious emission characteristics.
