10. Video and Audio Streaming Settings

Press the tab ”Streaming” on the top of the page, and the configurable video and audio items will display in the

left column. In Streaming, the Administrator can configure specific video resolution, video compression mode,

video protocol, audio transmission mode, etc. Further details of these settings will be specified in the following

sections.

10.1. Video Resolution and Rotation Type

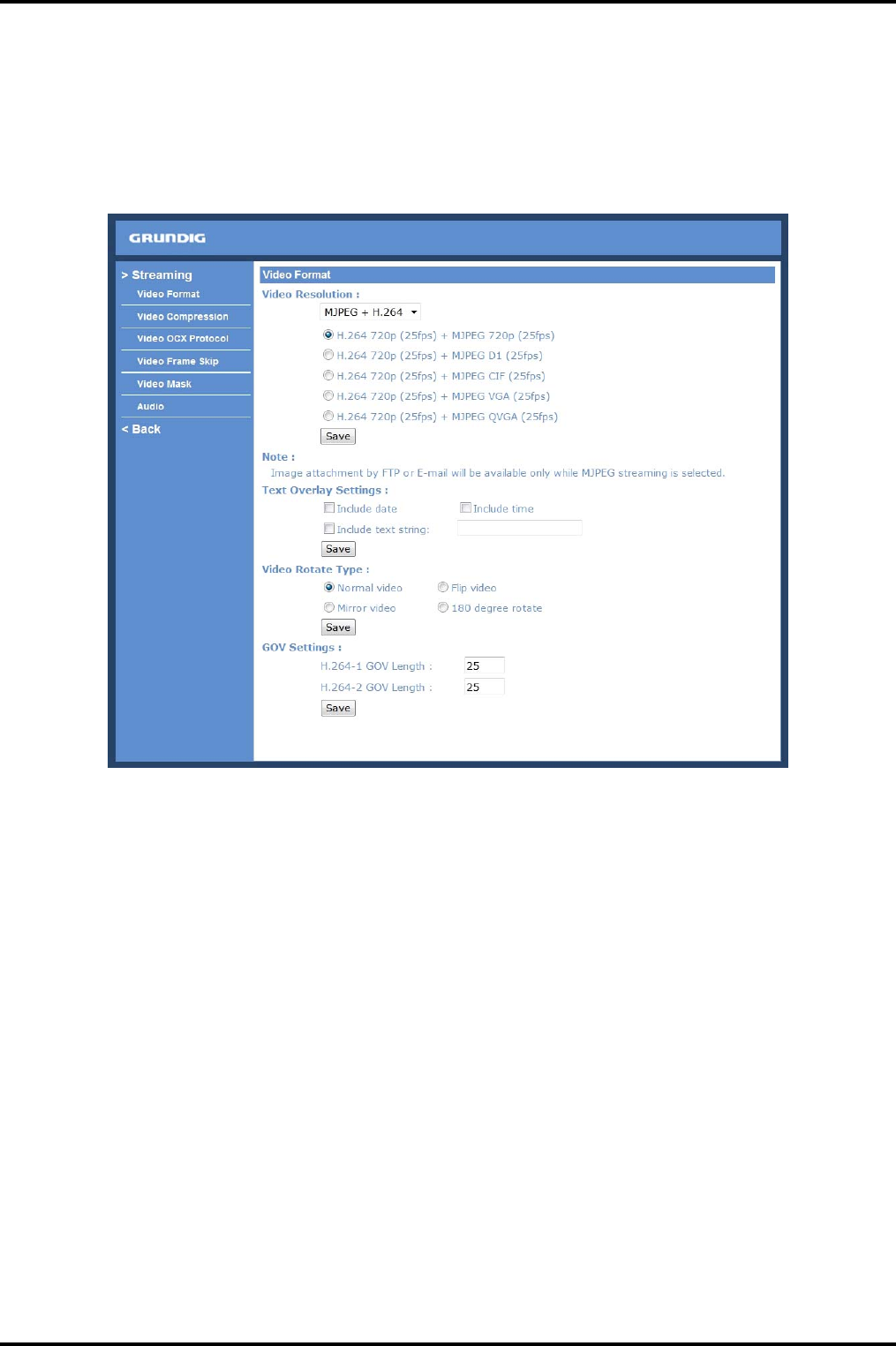

The video setting page is shown below:

Video Format :

Resolution for MJPEG & H.264 format includes:

- H.264 720p (25fps) + MJPEG 720p (25fps)

- H.264 720p (25fps) + MJPEG D1 (25fps)

- H.264 720p (25fps) + MJPEG CIF (25fps)

- H.264 720p (25fps) + MJPEG VGA (25fps)

- H.264 720p (25fps) + MJPEG QVGA (25fps)

- MJPEG 720p (25fps) + BNC Output

- MJPEG 1080p (12fps)

- MJPEG SXGA (25fps)

- H.264 720p (25fps) +H.264 D1 (25fps)

- H.264 720p (25fps) + H.264 CIF (25fps)

- H.264 720p (25fps) + H.264 VGA (25fps)

- H.264 720p (25fps) + H.264 QVGA (25fps Baseline)

- H.264 720p (25fps) + BNC Output

- H.264 1080p (12fps)

- H.264 SXGA (25fps)

Click “Save” to confirm the setting.
