4.3. Lens Mounting

Lens Mounting: C/CS Mount Lens Model:

If using a C-Mount lens, after removing the camera’s plastic cover, users need to mount the C/CS mount adapter

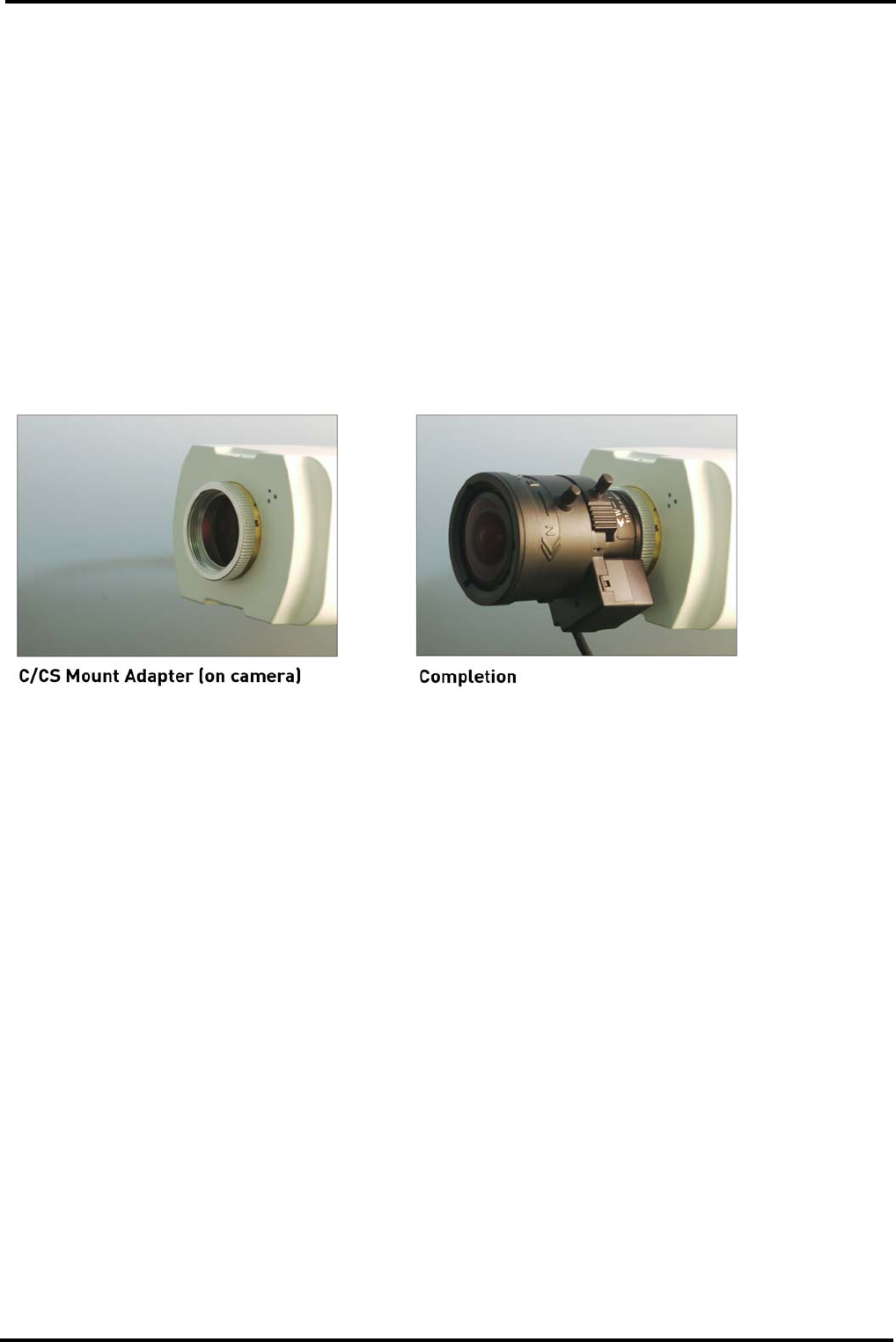

to the camera. Then attach the lens onto the C/CS mount adapter, as the illustrations show below.

4.4. Power Connection

Power connection for GCI-H0602B and GCI-K0503B:

To power up the IP Camera, please plug the camera’s DC 12V cable into the power outlet. Alternatively, connect

the Ethernet cable to the camera’s PoE port and plug the other end of the cable into a PoE switch.

NOTE: If using PoE, make sure the Power Sourcing Equipment (PSE) is in use in the network.

Power Connection for GCI-H0503B:

Please refer to section 4.1. Camera Overview for power wiring. Additionally, if using PoE, make sure Power

Sourcing Equipment (PSE) is in use in the network.

4.5. Ethernet Cable Connection

Use of Category 5 Ethernet cable is recommended for network connection; to have best transmission quality,

cable length shall not exceed 100 meters. Connect one end of the Ethernet cable to the RJ45 connector of the IP

Camera, and the other end of the cable to the network switch or PC.

NOTE: In some cases, you may need use an Ethernet crossover cable when connecting the IP Camera directly to

the PC.
