SECTION 5: ACCESSORIES
ACCESSORIES

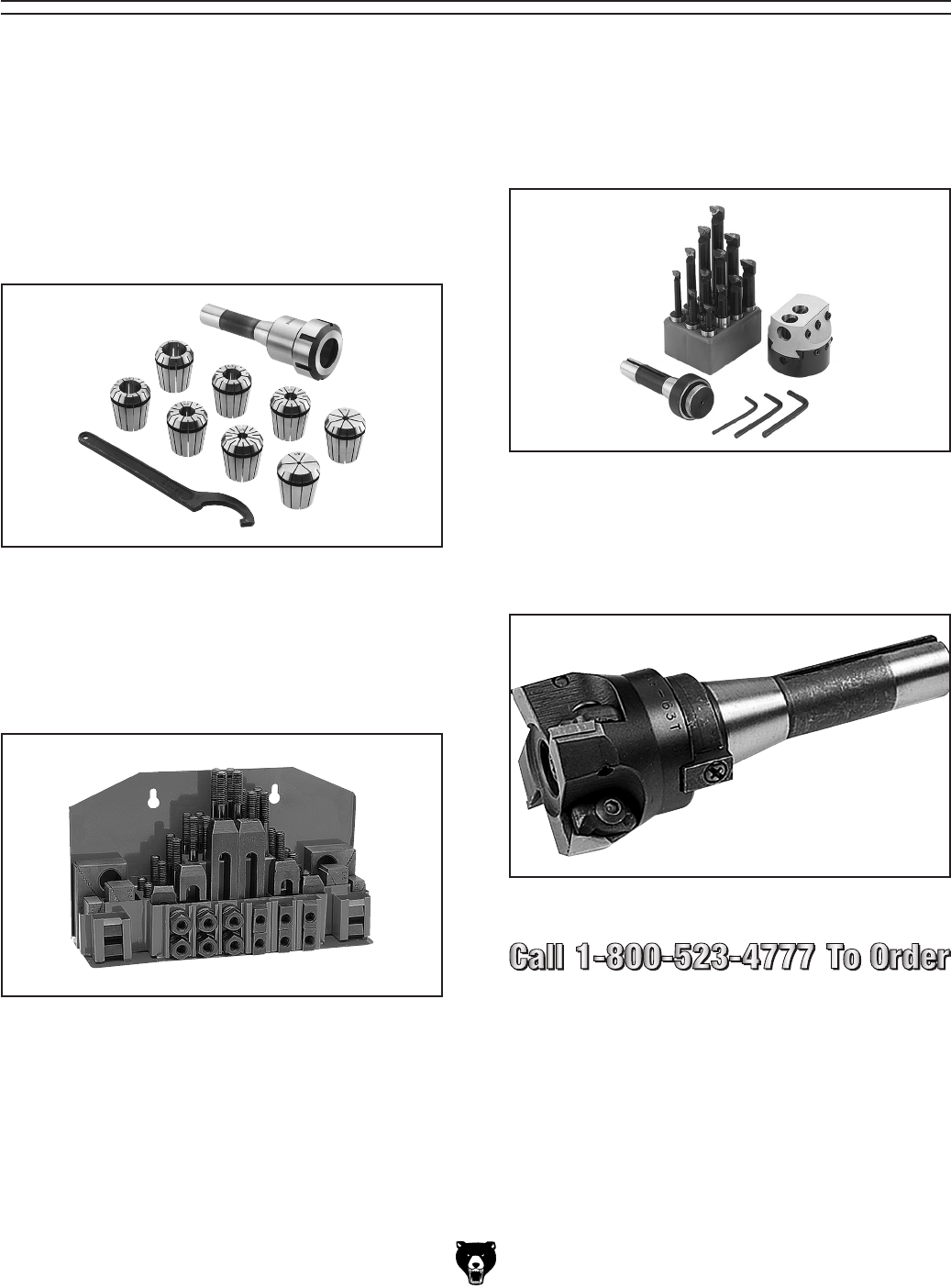

H2689—R-8 Quick Change Collet Set
An affordable quick change collet system with
ultra precision. These spring collets are hard
-
ened and ground to exacting tolerances and offer
incredible holding power. This set includes an R-8
arbor and nut, spanner wrench, plastic carrying
case and collets sized
1
⁄8",
1
⁄4",
3
⁄8",
1
⁄2",
5
⁄8",
3
⁄4",
7
⁄8",
and 1". What's more, the nut features a self-eject
-
ing rim! A set like this will truly speed up any tool
changing process. Drawbar size is
7
⁄16" x 20.
Figure 19. H2689 R-8 Quick Change Collet Set.
G1075—52-PC. Clamping Kit,
1
⁄2" T-Nut Size
All the blocks, bolts, nuts, and hold-downs are
case hardened. Each kit includes: Metal rack, 24
studs, 6 step block pairs, 6 T-nuts, 6 flange nuts,
4 coupling nuts, and 6 end hold-downs.
Figure 20. G1075 52-PC. Clamping Kit.
G9324—Boring Head Combo Set
Hardened and ground adjusting screws along
with a wide base design guarantee a long life and
trouble-free use. Includes a 3" boring head, R-8
shank with 1
1
/2"-18 TPI, and a 12 piece
3
/4" boring
bar set.
Figure 21. G9324 Boring Head Combo Set.
G2861—Face Mill
G4051—Carbide Insert for Face Mill
This 2
1
/2" face mill accepts four carbide inserts
(not included). Comes with an R-8 arbor.
Figure 22. G2861 Face Mill.
