User Guide

G0484 Gear Head Mill/Drill
-13-

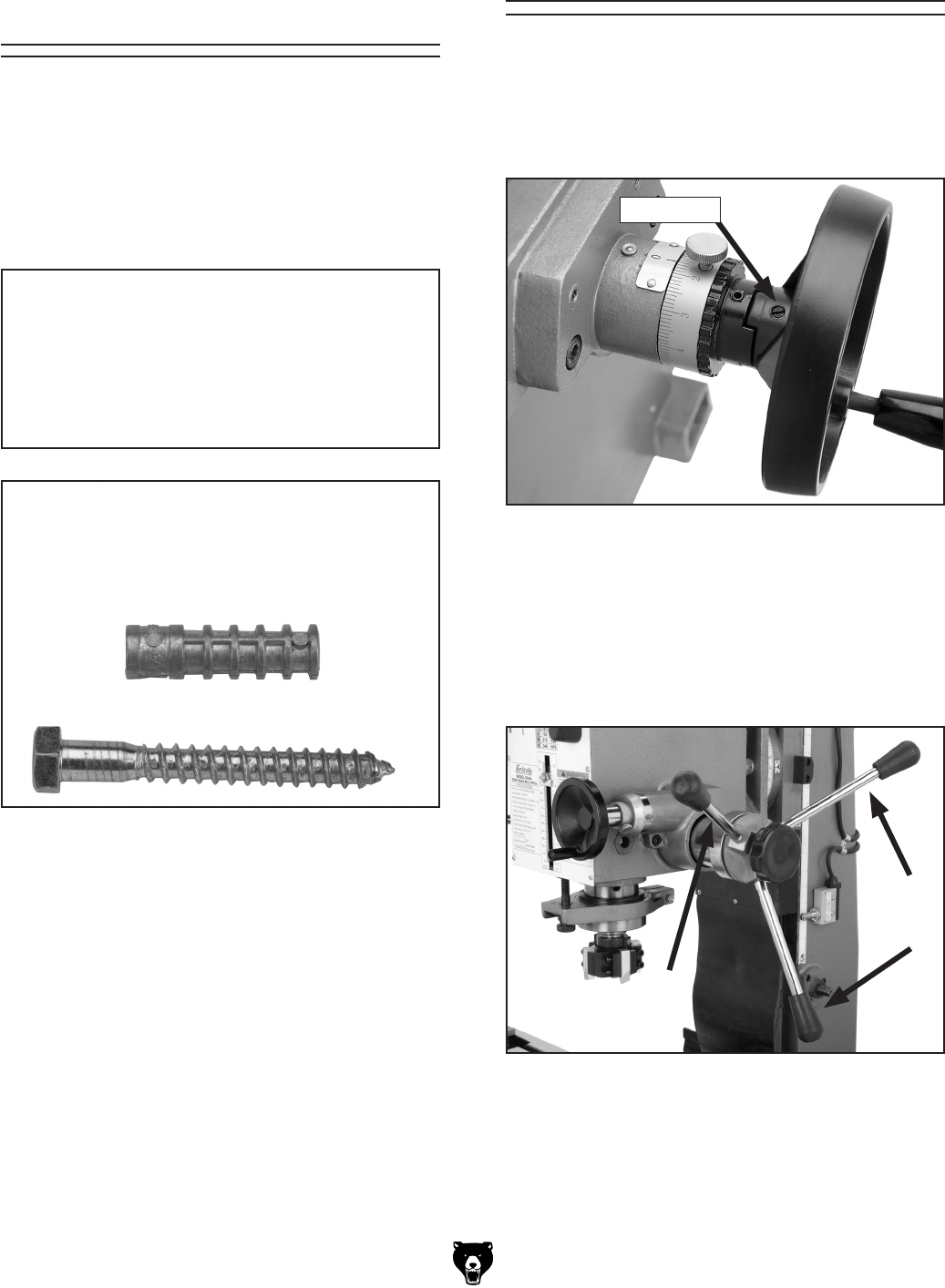

We recommend that you mount your new machine
to the floor. Because floor materials may vary,
floor mounting hardware is not included.
Lag shield anchors with lag bolts and anchor
studs (Figure 7) are two popular methods for
anchoring an object to a concrete floor.
Mounting to Shop
Floor
NOTICE
Anchor studs are stronger and more per-
manent alternatives to lag shield anchors;
however, they will stick out of the floor,
which may cause a tripping hazard if you
decide to move your machine
.
Mounting to Shop Floor
Figure 7. Typical fasteners for mounting to
concrete floors.
Assembly
To assemble your mill/drill:
1. Place the handwheels on the longitudinal and
cross lead screws, and tighten the set screw
(see Figure 8).
Figure 8. Handwheel installed.
2. Thread the handles onto the handwheels and
tighten with a 7mm wrench.
3. Thread the quill feed levers onto the downfeed
hub and tighten with a 12mm wrench (see
Figure 9).
Figure 9. Downfeed handles installed.
Set Screw
