353

2545K–AVR–04/07

ATmega48/88/168

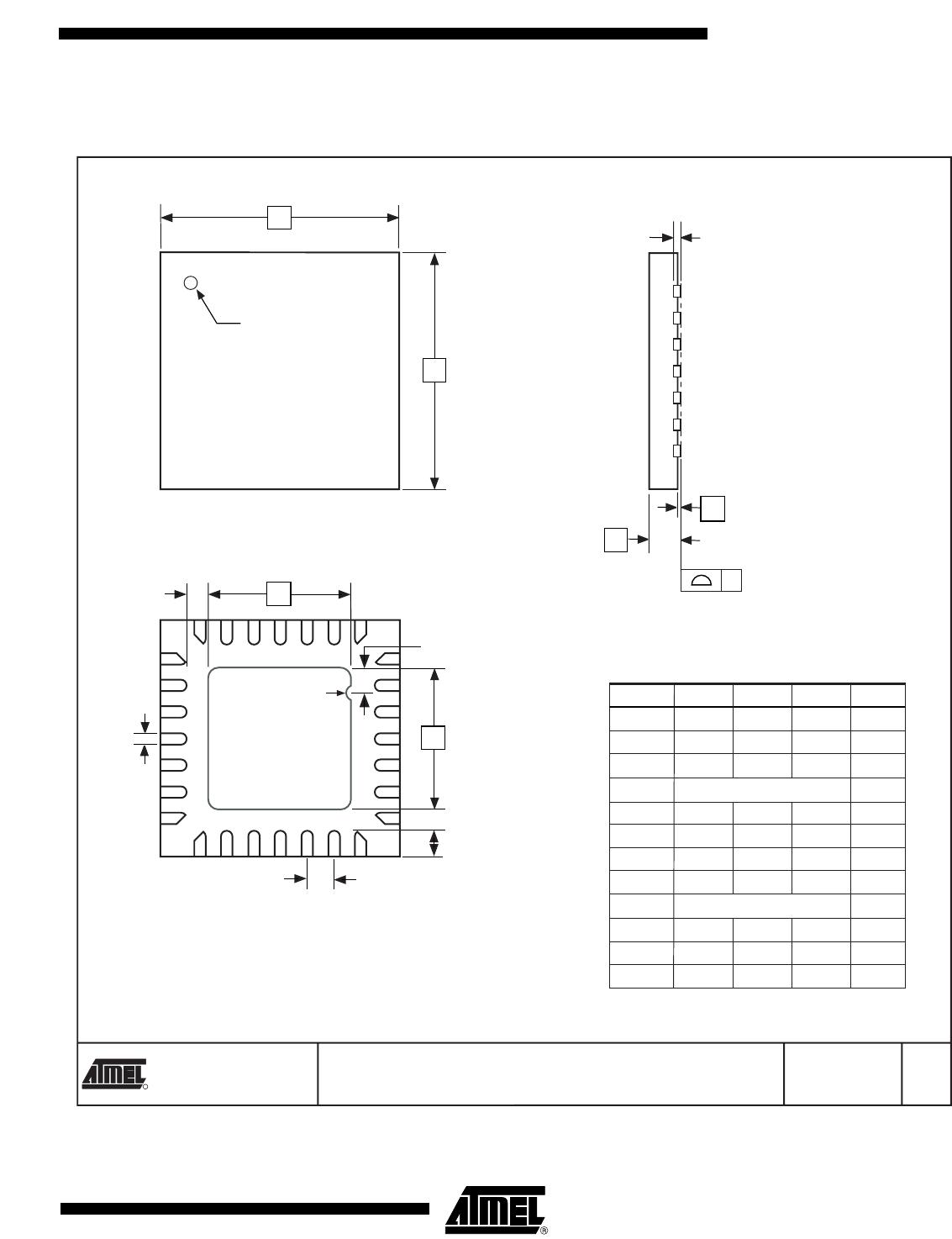

32.2 28M1

2325 Orchard Parkway

San Jose, CA 95131

TITLE

DRAWING NO.

R

REV.

A

28M1

9/7/06

28M1, 28-pad, 4 x 4 x 1.0 mm Body, Lead Pitch 0.45 mm,

2.4 mm Exposed Pad, Micro Lead Frame Package (MLF)

SIDE VIEW

Pin 1 ID

BOTTOM VIEW

TOP VIEW

Note:

The terminal #1 ID is a Laser-marked Feature.

D

E

e

K

A1

C

A

D2

E2

y

L

1

2

3

b

1

2

3

0.45

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

NOM

MAX

NOTE

A 0.80 0.90 1.00

A1 0.00 0.02 0.05

b 0.17 0.22 0.27

C 0.20 REF

D 3.95 4.00 4.05

D2 2.35 2.40 2.45

E 3.95 4.00 4.05

E2 2.35 2.40 2.45

e 0.45

L 0.35 0.40 0.45

y 0.00 – 0.08

K 0.20 – –

R 0.20
