Table Of Contents

Features
1. Pin Configurations
- 1.1 Pin Descriptions
2. Overview
- 2.1 Block Diagram
- 2.2 Comparison Between ATmega48, ATmega88, and ATmega168
3. Resources
4. About Code Examples
5. AVR CPU Core
- 5.1 Overview
- 5.2 Architectural Overview
- 5.3 ALU - Arithmetic Logic Unit
- 5.4 Status Register
  - 5.4.1 SREG - AVR Status Register
- 5.5 General Purpose Register File
  - 5.5.1 The X-register, Y-register, and Z-register
- 5.6 Stack Pointer
  - 5.6.1 SPH and SPL - Stack Pointer High and Stack Pointer Low Register
- 5.7 Instruction Execution Timing
- 5.8 Reset and Interrupt Handling
  - 5.8.1 Interrupt Response Time
6. AVR Memories
- 6.1 Overview
- 6.2 In-System Reprogrammable Flash Program Memory
- 6.3 SRAM Data Memory
  - 6.3.1 Data Memory Access Times
- 6.4 EEPROM Data Memory
  - 6.4.1 EEPROM Read/Write Access
  - 6.4.2 Preventing EEPROM Corruption
- 6.5 I/O Memory
  - 6.5.1 General Purpose I/O Registers
- 6.6 Register Description
7. System Clock and Clock Options
- 7.1 Clock Systems and their Distribution
- 7.2 Clock Sources
  - 7.2.1 Default Clock Source
  - 7.2.2 Clock Startup Sequence
- 7.3 Low Power Crystal Oscillator
- 7.4 Full Swing Crystal Oscillator
- 7.5 Low Frequency Crystal Oscillator
- 7.6 Calibrated Internal RC Oscillator
- 7.7 128 kHz Internal Oscillator
- 7.8 External Clock
- 7.9 Clock Output Buffer
- 7.10 Timer/Counter Oscillator
- 7.11 System Clock Prescaler
- 7.12 Register Description
  - 7.12.1 OSCCAL - Oscillator Calibration Register
  - 7.12.2 CLKPR - Clock Prescale Register
8. Power Management and Sleep Modes
- 8.1 Sleep Modes
- 8.2 Idle Mode
- 8.3 ADC Noise Reduction Mode
- 8.4 Power-down Mode
- 8.5 Power-save Mode
- 8.6 Standby Mode
- 8.7 Power Reduction Register
- 8.8 Minimizing Power Consumption
- 8.9 Register Description
  - 8.9.1 SMCR - Sleep Mode Control Register
  - 8.9.2 PRR - Power Reduction Register
9. System Control and Reset
- 9.1 Resetting the AVR
- 9.2 Reset Sources
- 9.3 Power-on Reset
- 9.4 External Reset
- 9.5 Brown-out Detection
- 9.6 Watchdog System Reset
- 9.7 Internal Voltage Reference
  - 9.7.1 Voltage Reference Enable Signals and Start-up Time
- 9.8 Watchdog Timer
  - 9.8.1 Features
- 9.9 Register Description
  - 9.9.1 MCUSR - MCU Status Register
  - 9.9.2 WDTCSR - Watchdog Timer Control Register
10. Interrupts
- 10.1 Overview
- 10.2 Interrupt Vectors in ATmega48
- 10.3 Interrupt Vectors in ATmega88
- 10.4 Interrupt Vectors in ATmega168
  - 10.4.1 Moving Interrupts Between Application and Boot Space, ATmega88 and ATmega168
- 10.5 Register Description
  - 10.5.1 MCUCR - MCU Control Register
11. External Interrupts
- 11.1 Pin Change Interrupt Timing
- 11.2 Register Description
12. I/O-Ports
- 12.1 Overview
- 12.2 Ports as General Digital I/O
- 12.3 Alternate Port Functions
- 12.4 Register Description
13. 8-bit Timer/Counter0 with PWM
- 13.1 Features
- 13.2 Overview
  - 13.2.1 Definitions
  - 13.2.2 Registers
- 13.3 Timer/Counter Clock Sources
- 13.4 Counter Unit
- 13.5 Output Compare Unit
- 13.6 Compare Match Output Unit
  - 13.6.1 Compare Output Mode and Waveform Generation
- 13.7 Modes of Operation
- 13.8 Timer/Counter Timing Diagrams
- 13.9 Register Description
14. 16-bit Timer/Counter1 with PWM
- 14.1 Features
- 14.2 Overview
  - 14.2.1 Registers
  - 14.2.2 Definitions
- 14.3 Accessing 16-bit Registers
  - 14.3.1 Reusing the Temporary High Byte Register
- 14.4 Timer/Counter Clock Sources
- 14.5 Counter Unit
- 14.6 Input Capture Unit
- 14.7 Output Compare Units
- 14.8 Compare Match Output Unit
  - 14.8.1 Compare Output Mode and Waveform Generation
- 14.9 Modes of Operation
- 14.10 Timer/Counter Timing Diagrams
- 14.11 Register Description
15. Timer/Counter0 and Timer/Counter1 Prescalers
- 15.0.1 Internal Clock Source
- 15.0.2 Prescaler Reset
- 15.0.3 External Clock Source
- 15.1 Register Description
  - 15.1.1 GTCCR - General Timer/Counter Control Register
16. 8-bit Timer/Counter2 with PWM and Asynchronous Operation
- 16.1 Features
- 16.2 Overview
  - 16.2.1 Registers
  - 16.2.2 Definitions
- 16.3 Timer/Counter Clock Sources
- 16.4 Counter Unit
- 16.5 Output Compare Unit
- 16.6 Compare Match Output Unit
  - 16.6.1 Compare Output Mode and Waveform Generation
- 16.7 Modes of Operation
- 16.8 Timer/Counter Timing Diagrams
- 16.9 Asynchronous Operation of Timer/Counter2
- 16.10 Timer/Counter Prescaler
- 16.11 Register Description
17. SPI - Serial Peripheral Interface
- 17.1 Features
- 17.2 Overview
- 17.3 SS Pin Functionality
  - 17.3.1 Slave Mode
  - 17.3.2 Master Mode
- 17.4 Data Modes
- 17.5 Register Description
18. USART0
- 18.1 Features
- 18.2 Overview
- 18.3 Clock Generation
- 18.4 Frame Formats
  - 18.4.1 Parity Bit Calculation
- 18.5 USART Initialization
- 18.6 Data Transmission - The USART Transmitter
- 18.7 Data Reception - The USART Receiver
- 18.8 Asynchronous Data Reception
- 18.9 Multi-processor Communication Mode
  - 18.9.1 Using MPCMn
- 18.10 Register Description
- 18.11 Examples of Baud Rate Setting
19. USART in SPI Mode
- 19.1 Features
- 19.2 Overview
- 19.3 Clock Generation
- 19.4 SPI Data Modes and Timing
- 19.5 Frame Formats
  - 19.5.1 USART MSPIM Initialization
- 19.6 Data Transfer
  - 19.6.1 Transmitter and Receiver Flags and Interrupts
  - 19.6.2 Disabling the Transmitter or Receiver
- 19.7 AVR USART MSPIM vs. AVR SPI
- 19.8 Register Description
20. 2-wire Serial Interface
- 20.1 Features
- 20.2 2-wire Serial Interface Bus Definition
  - 20.2.1 TWI Terminology
  - 20.2.2 Electrical Interconnection
- 20.3 Data Transfer and Frame Format
- 20.4 Multi-master Bus Systems, Arbitration and Synchronization
- 20.5 Overview of the TWI Module
- 20.6 Using the TWI
- 20.7 Transmission Modes
- 20.8 Multi-master Systems and Arbitration
- 20.9 Register Description
21. Analog Comparator
- 21.1 Overview
- 21.2 Analog Comparator Multiplexed Input
- 21.3 Register Description
22. Analog-to-Digital Converter
- 22.1 Features
- 22.2 Overview
- 22.3 Starting a Conversion
- 22.4 Prescaling and Conversion Timing
- 22.5 Changing Channel or Reference Selection
  - 22.5.1 ADC Input Channels
  - 22.5.2 ADC Voltage Reference
- 22.6 ADC Noise Canceler
- 22.7 ADC Conversion Result
- 22.8 Register Description
23. debugWIRE On-chip Debug System
- 23.1 Features
- 23.2 Overview
- 23.3 Physical Interface
- 23.4 Software Break Points
- 23.5 Limitations of debugWIRE
- 23.6 Register Description
  - 23.6.1 DWDR - debugWire Data Register
24. Self-Programming the Flash, ATmega48
- 24.1 Overview
- 24.2 Addressing the Flash During Self-Programming
- 24.3 Register Description
  - 24.3.1 SPMCSR - Store Program Memory Control and Status Register
25. Boot Loader Support - Read-While-Write Self-Programming, ATmega88 and ATmega168
- 25.1 Features
- 25.2 Overview
- 25.3 Application and Boot Loader Flash Sections
  - 25.3.1 Application Section
  - 25.3.2 BLS - Boot Loader Section
- 25.4 Read-While-Write and No Read-While-Write Flash Sections
  - 25.4.1 RWW - Read-While-Write Section
  - 25.4.2 NRWW - No Read-While-Write Section
- 25.5 Boot Loader Lock Bits
- 25.6 Entering the Boot Loader Program
- 25.7 Addressing the Flash During Self-Programming
- 25.8 Self-Programming the Flash
- 25.9 Register Description
  - 25.9.1 SPMCSR - Store Program Memory Control and Status Register
26. Memory Programming
- 26.1 Program And Data Memory Lock Bits
- 26.2 Fuse Bits
  - 26.2.1 Latching of Fuses
- 26.3 Signature Bytes
- 26.4 Calibration Byte
- 26.5 Page Size
- 26.6 Parallel Programming Parameters, Pin Mapping, and Commands
  - 26.6.1 Signal Names
- 26.7 Parallel Programming
- 26.8 Serial Downloading
27. Electrical Characteristics
- 27.1 Absolute Maximum Ratings*
- 27.2 DC Characteristics ATmega48/88/168*
- 27.3 Speed Grades
- 27.4 Clock Characteristics
- 27.5 System and Reset Characteristics
- 27.6 2-wire Serial Interface Characteristics
- 27.7 SPI Timing Characteristics
- 27.8 ADC Characteristics - Preliminary Data
- 27.9 Parallel Programming Characteristics
28. Typical Characteristics - Preliminary Data
- 28.1 Active Supply Current
- 28.2 Idle Supply Current
- 28.3 Supply Current of I/O modules
- 28.4 Power-Down Supply Current
- 28.5 Power-Save Supply Current
- 28.6 Standby Supply Current
- 28.7 Pin Pull-up
- 28.8 Pin Driver Strength
- 28.9 Pin Thresholds and Hysteresis
- 28.10 BOD Thresholds and Analog Comparator Offset
- 28.11 Internal Oscillator Speed
- 28.12 Current Consumption of Peripheral Units
- 28.13 Current Consumption in Reset and Reset Pulse width
29. Register Summary
30. Instruction Set Summary
31. Ordering Information
- 31.1 ATmega48
- 31.2 ATmega88
- 31.3 ATmega168
32. Packaging Information
- 32.1 32A
- 32.2 28M1
- 32.3 32M1-A
- 32.4 28P3
33. Errata
- 33.1 Errata ATmega48
- 33.2 Errata ATmega88
- 33.3 Errata ATmega168
34. Datasheet Revision History
- 34.1 Rev. 2545K-04/07
- 34.2 Rev. 2545J-12/06
- 34.3 Rev. 2545I-11/06
- 34.4 Rev. 2545H-10/06
- 34.5 Rev. 2545G-06/06
- 34.6 Rev. 2545F-05/05
- 34.7 Rev. 2545E-02/05
- 34.8 Rev. 2545D-07/04
- 34.9 Rev. 2545C-04/04
- 34.10 Rev. 2545B-01/04
Table of Contents

332

2545K–AVR–04/07

ATmega48/88/168

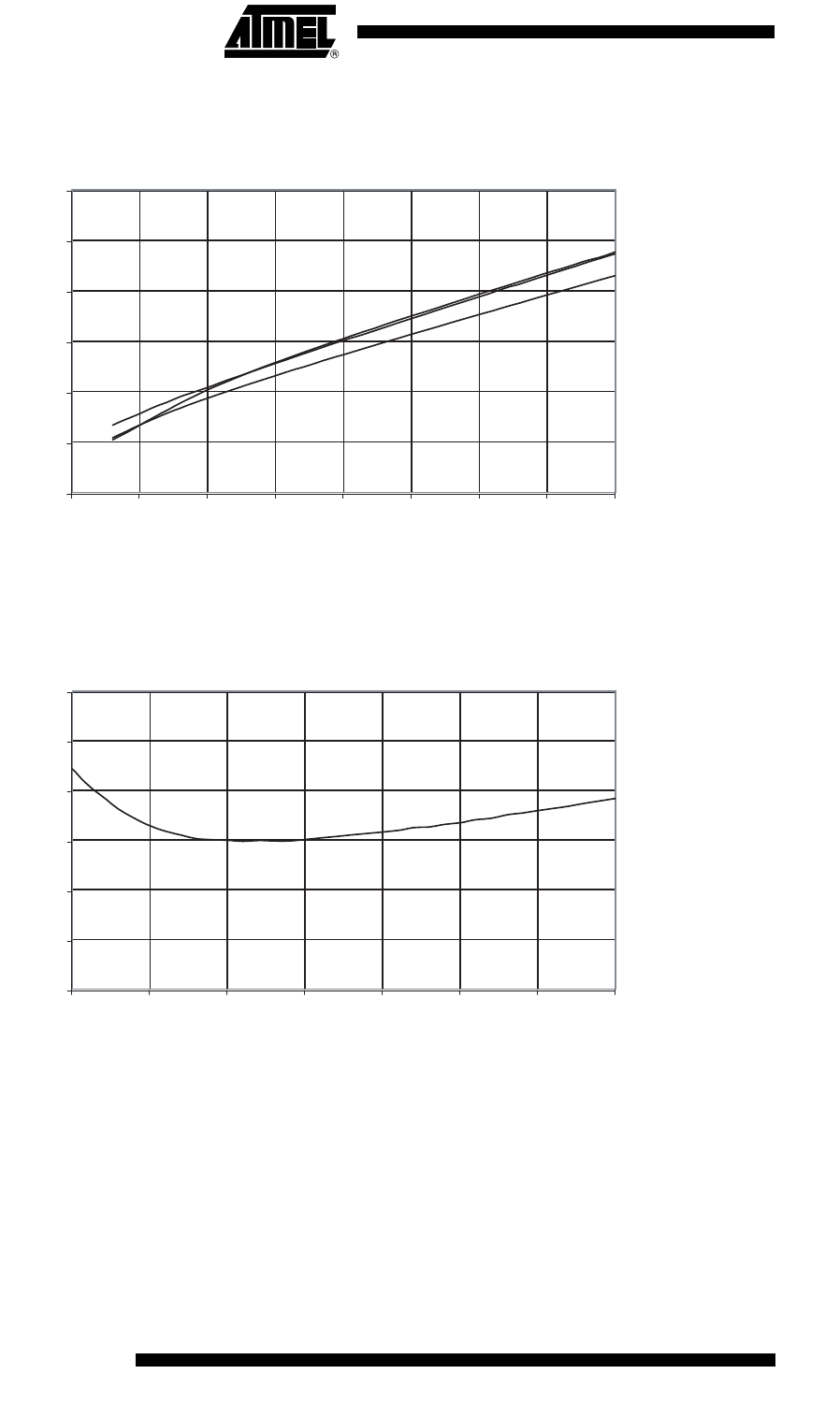

Figure 28-31. Reset Input Threshold Voltage vs. V

(VIL, Reset Pin Read As '0')

Figure 28-32. Reset Input Pin Hysteresis vs. V

RESET INPUT THRESHOLD VOLTAGE vs. V

VIL, IO PIN READ AS '0'

85 °C

25 °C

-40 °C

0.5

1.5

2.5

1.5 2 2.5 3 3.5 4 4.5 5 5.5

(V)

Threshold (V)

RESET PIN INPUT HYSTERESIS vs. V

VIL

100

200

300

400

500

600

2 2.5 3 3.5 4 4.5 5 5.5

(V)

Input Hysteresis (mV)
