321
2545K–AVR–04/07
ATmega48/88/168

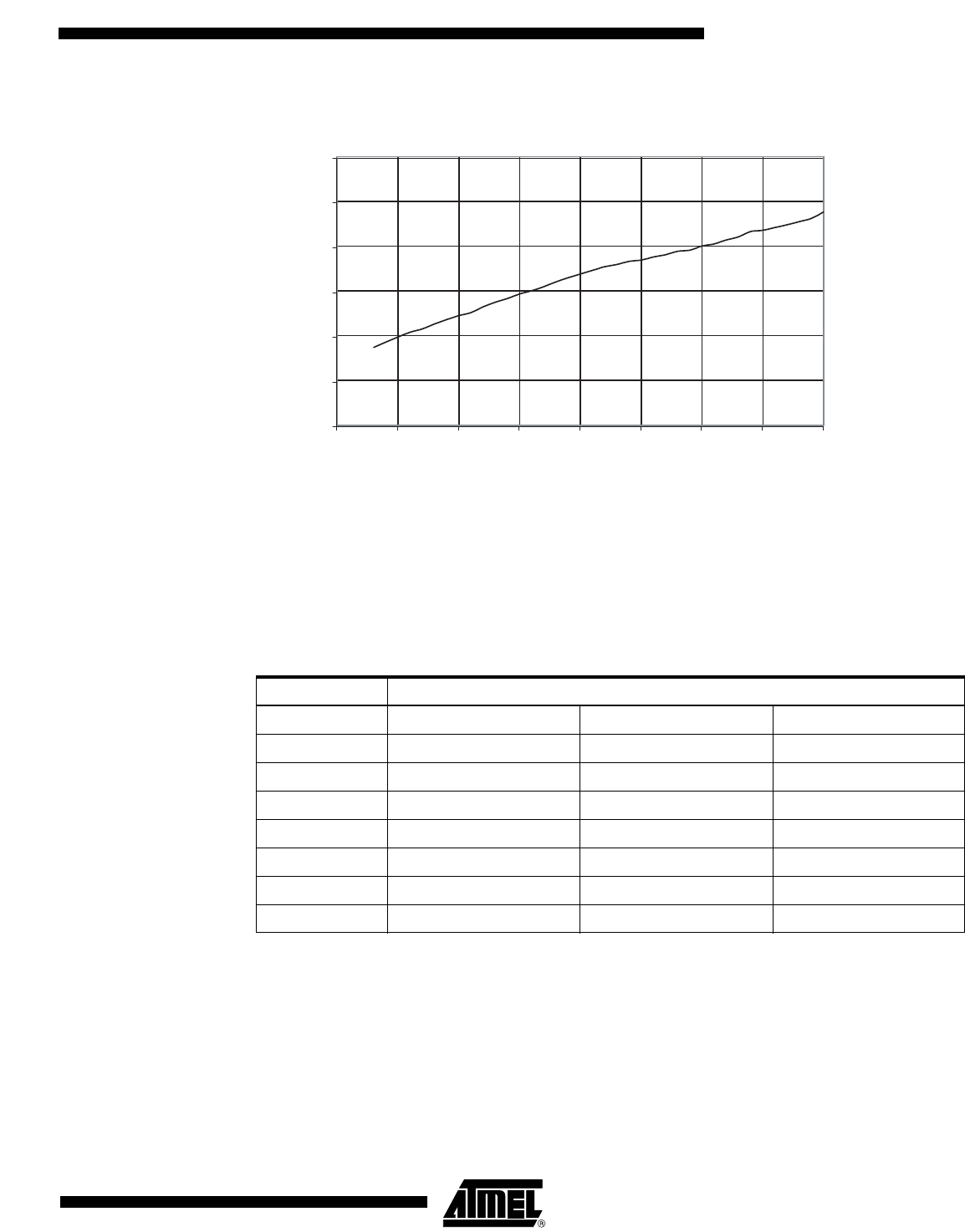

Figure 28-12. Idle Supply Current vs. V
CC
(32 kHz External Oscillator)
28.3 Supply Current of I/O modules
The tables and formulas below can be used to calculate the additional current consumption for
the different I/O modules in Active and Idle mode. The enabling or disabling of the I/O modules
are controlled by the Power Reduction Register. See ”Power Reduction Register” on page 41 for
details.
IDLE SUPPLY CURRENT vs. V
CC
32 kHz EXTERNAL OSCILLATOR
25 °C
0
5
10
15
20
25
30
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(uA)
Table 28-1. Additional Current Consumption for the different I/O modules (absolute values)
PRR bit Typical numbers
V
CC
= 2V, F = 1MHz V
CC
= 3V, F = 4MHz V
CC
= 5V, F = 8MHz
PRUSART0 8.0 uA 51 uA 220 uA
PRTWI 12 uA 75 uA 315 uA
PRTIM2 11 uA 72 uA 300 uA
PRTIM1 5.0 uA 32 uA 130 uA
PRTIM0 4.0 uA 24 uA 100 uA
PRSPI 15 uA 95 uA 400 uA
PRADC 12 uA 75 uA 315 uA
