User manual

FIRMWARE UPDATE
When using the optional smart box, the transmitter’s functions can be easy to set up and check the
telemetry data. Connect into the DATA socket at the back of the transmitter and switch on the transmitter.
- ALARM VOLT : Battery low voltage alarm
- COUNTRY : Country setting
- RANGE TEST : ON, OFF

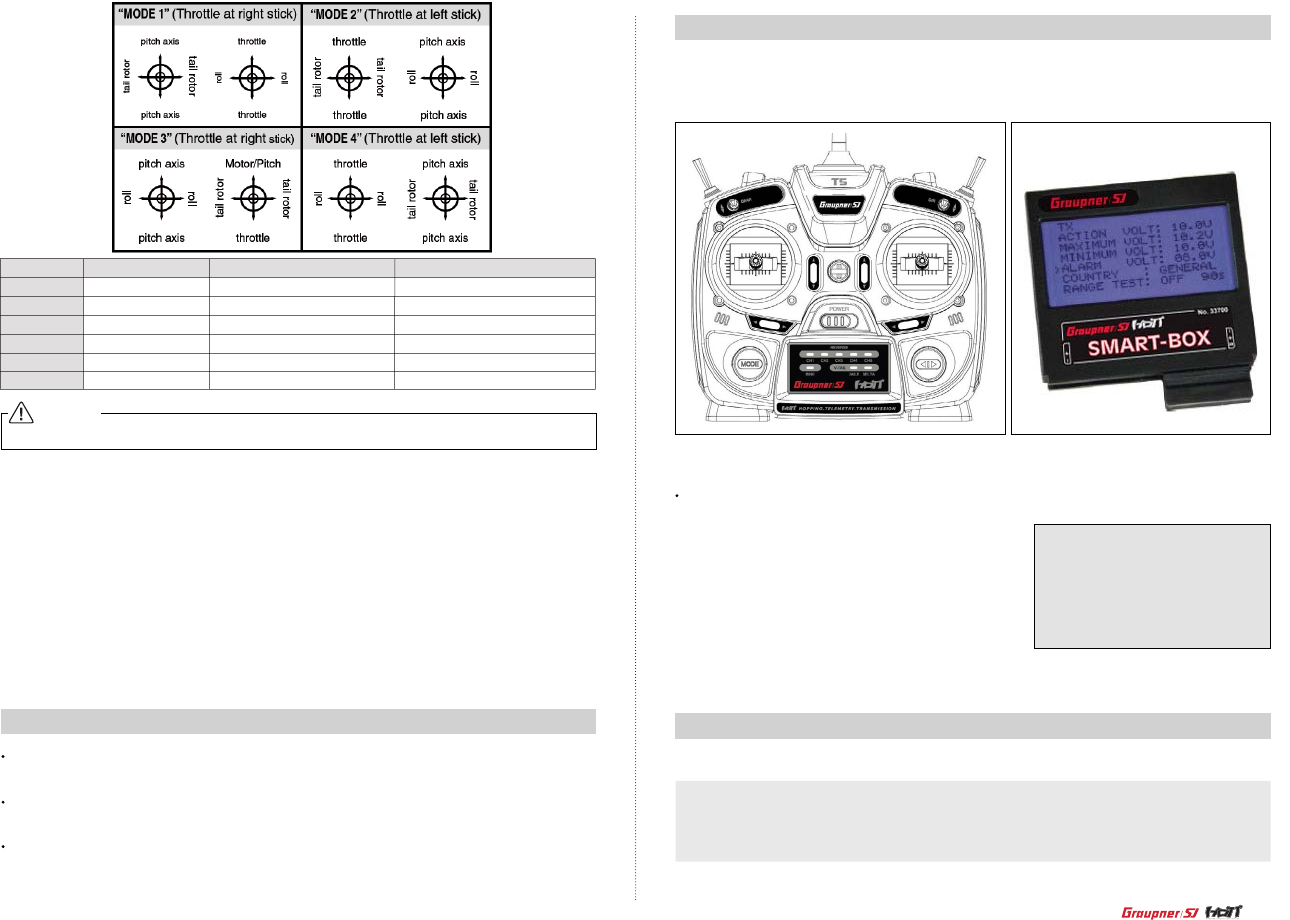

The display of the smart box
T X
ACTION VOLT : 05.9 V
M AXIMUM V OLT : 0 8.0V
M AINIMUM VOLT : 05.9V
A LARM V OL T : 04 .0 V
C OUNT RY : G ENERAL
R ANGE TEST: OFF 90s
The transmitter repeats that Graupner/SJ logo blinks 3 times red with 3 times beeps.
The transmitter repeats that Graupner/SJ logo blinks 4 times red with 4 times beeps.
When the battery voltage drops below 4.5 volts, the transmitter repeats that Graupner/SJ logo
blinks 5 times red with 5 times beeps. When using the smart box, the alarm range could be set
4.0V ~15.0V
The signal reception of the receiver is not good
The signal reception of the transmitter is not good
Battery low voltage alarm
SMART BOX
9
Before each ying session, especially with a new model, it is important to perform a range check. The T5/
mz-10 incorporates a range testing mode which reduces the output power of the transmitter, allowing a range
check.
1. With the model restrained on the ground, face the model with the transmitter in your normal ying position.
2. After binding the transmitter to the receiver, press & hold BIND button until entering the range testing mode.
The beep is repeated for 90 seconds in the range testing mode.
3. Walk over 50 meters away from the model with controlling the transmitter sticks constantly and check whether
the model is operating normally. You should have total control of the model with the trainer switch pulled.
4. If control issues exist within 50 meters, the system should not be used. And contact your local Service
Department of Graupner/SJ.
14. Range testing
NOTICE
After completing the country setting, the shunt connect should be detached.
◎
◎
◎
For more information on the latest rmware and the related software, please refer to the
download menu on our website www.openhobby.com, www.graupner-sj.com
NOTICE: The optional USB adapter is needed to update.
Beep
1 time
2 times
3 times
5 times
4 times
6 times
Graupner/SJ logo
Solid red
Solid red
Solid red
Blink red
Solid red
Solid red
Mode
Country setting
Country setting
Stick setting
Stick setting
Stick setting
Stick setting
Description
GENERAL
STICK mode 1
STICK mode 2
STICK mode 3
STICK mode 4
FRANCE
ERROR
