PACKET CAPTURE
GXP2130/GXP2140/GXP2160/GXP2170 is embedded with packet capture function on firmware 1.0.4.10
or greater. The related options are under Maintenance -> Packet Capture.

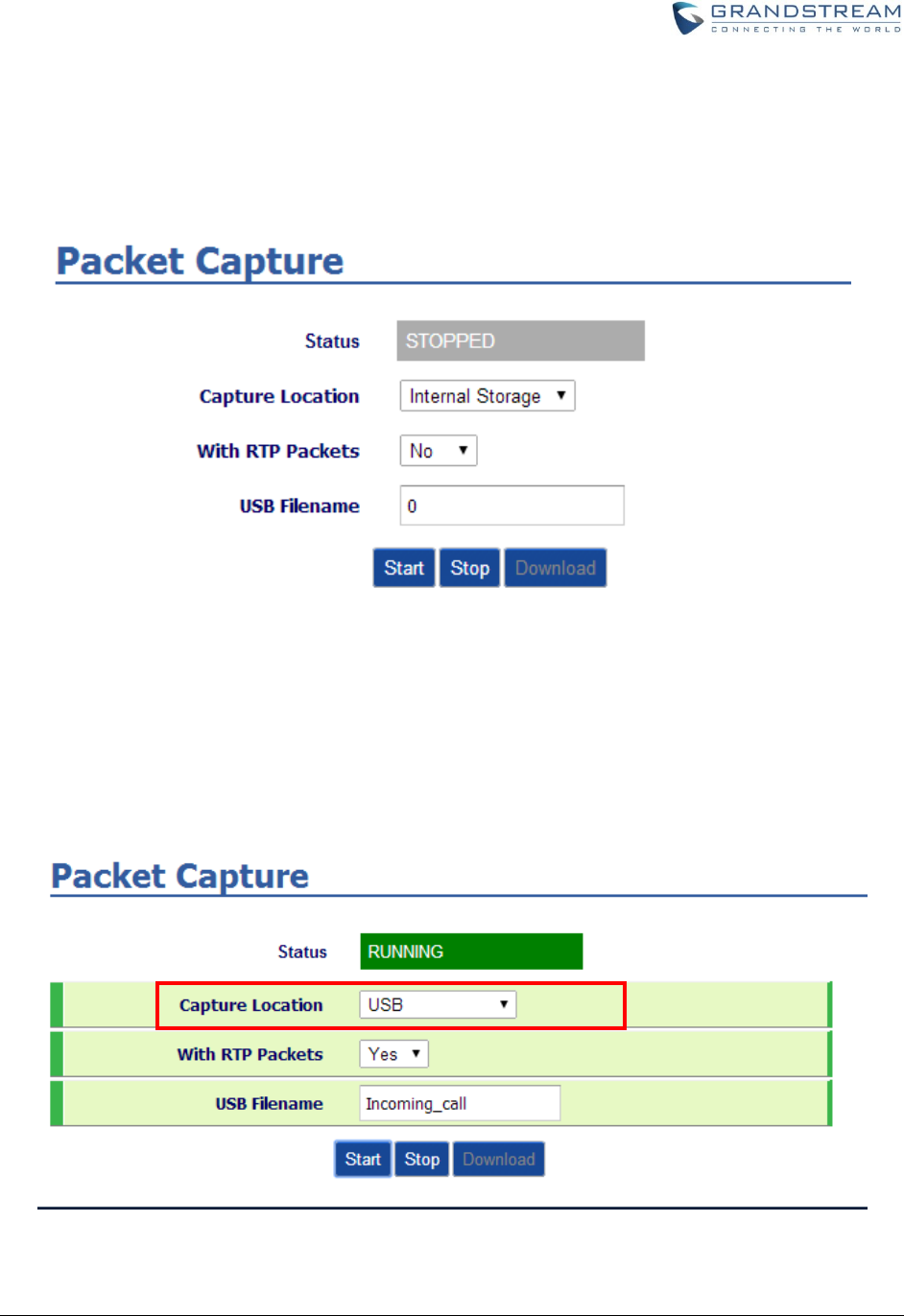

Figure 7: Packet Capture in Idle
In the option Capture Location, User can select to store the capture file in phone’s internal storage or
extended USB storage. When the Capture Location is specified as USB, a USB drive must be connected.
When USB is selected as the capture location, user can define the capture file name in USB Filename
field. User can also define whether RTP packets will be captured or not from With RTP Packets option.
Note: Only GXP2140/GXP2160/GXP2170 supports USB connection.
Figure 8: Capture to USB Drive
