Owner's manual

40 PNEG-1833 75' Dura-Lok Plank and Support Manual
6. Layouts
75'-26" Monorail Spacing Layout

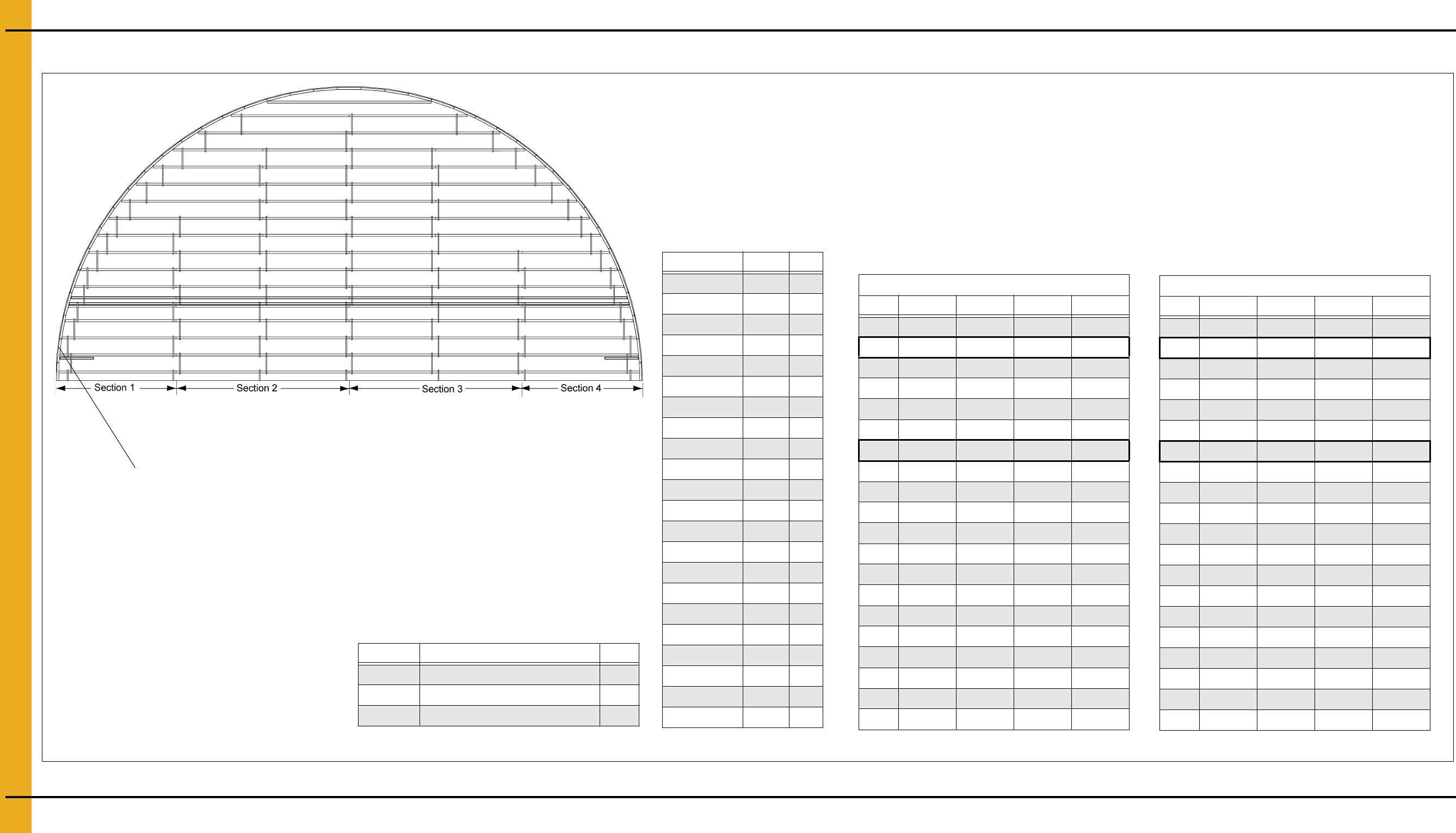

Figure 6O 75' Diameter Bin with 26" Monorail Spacing
Part # Description Qty
FL-404-26 26" Monorail Tie Bar 200
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 120
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 830
75' Diameter 26" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3 Section 4
1 179 264 264 179
* 1A 51 0 0
51
2 177 264 264 177
3 174 264 264 174
4 169 264 264 169
5 164 264 264 164
* 6 163 264 264 163
7 160 264 264 160
8 155 264 264 155
9 145 264 264 145
10 133 264 264 133
11 251 264 251 0
12 234 264 234 0
13 215 264 215 0
14 193 264 193 0
15 167 264 167 0
16 136 264 136 0
17 230 230 0 0
18 180 180 0 0
19 250 0 0 0
21.95 m Diameter 66.04 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3 Section 4
1 454.66 670.56 670.56 454.66
* 1A 129.54 0 0
129.54
2 449.58 670.56 670.56 449.58
3 441.96 670.56 670.56 441.96
4 429.26 670.56 670.56 429.26
5 416.56 670.56 670.56 416.56
* 6 414.02 670.56 670.56 414.02
7 406.4 670.56 670.56 406.4
8 393.7 670.56 652.78 393.7
9 368.3 670.56 670.56 368.3
10 337.82 670.56 670.56 337.82
11 637.54 670.56 637.54 0
12 594.36 670.56 594.36 0
13 546.1 670.56 546.1 0
14 490.22 670.56 490.22 0
15 424.18 670.56 424.18 0
16 345.44 670.56 345.44 0
17 584.2 584.2 0 0
18 457.2 457.2 0 0
19 635 0 0 0
NOTE: Seventy seven (77) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
* NOTE: This special monorail run is used to support the
floor plank at the split.
Bill of Materials
Part # Length Qty
A-22MONO 264 52
A-20.91MONO 251 4
A-20.83MONO 250 2
A-19.5MONO 234 4
A-19.17MONO 230 4
A-17.9MONO 215 4
A-16.08MONO 193 4
A-15MONO 180 4
A-14.9MONO 179 4
A-14.75MONO 177 4
A-14.5MONO 174 4
A-14.08MONO 169 4
A-13.91MONO 167 4
A-13.7MONO 164 4
A-13.58MONO 163 4
A-13.3MONO 160 4
A-12.9MONO 155 4
A-12.1MONO 145 4
A-11.3MONO 136 4
A-11.08MONO 133 4
A-4.25MONO 51 4
A-3MONO 36 103
