6. Layouts

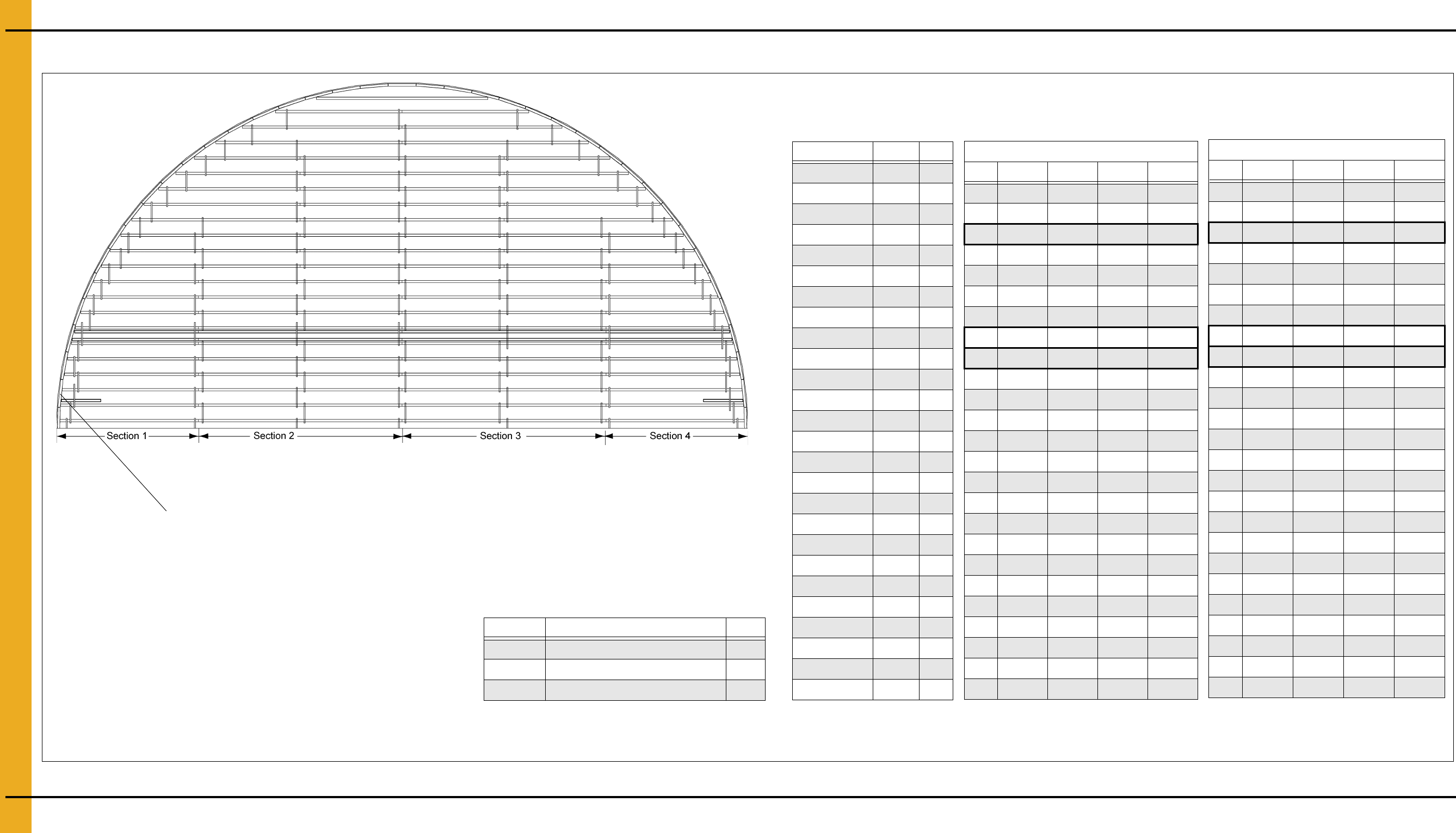

75'-20" Monorail Spacing Layout
Figure 6K 75' Diameter Bin with 20" Monorail Spacing
Part # Description Qty
FL-404-1 20" Monorail Tie Bar 270
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 120
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 940
Bill of Materials
Part # Length Qty
A-22MONO 264 64
A-21.42MONO 257 4
A-20.5MONO 246 4
A-20.08MONO 241 4
A-19.3MONO 232 4
A-18.5MONO 222 2
A-18.2MONO 218 4
A-17.25MONO 207 4
A-16.8MONO 202 4
A-15.25MONO 183 4
A-14.9MONO 179 4
A-14.83MONO 178 4
A-14.67MONO 176 4
A-14.42MONO 173 4
A-14.08MONO 169 4
A-13.7MONO 164 8
A-13.58MONO 163 4
A-13.42MONO 161 4
A-13.3MONO 160 4
A-13.25MONO 159 4
A-12.7MONO 152 4
A-12MONO 144 4
A-11.42MONO 137 4
A-11.25MONO 135 4
A-4.25MONO 51 4
A-3MONO 36 103
75' Diameter 20" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3 Section 4
1 179 264 264 179
2 178 264 264 178
* 2 51 0 0 51
3 176 264 264 176
4 173 264 264 173
5 169 264 264 169
6 164 264 264 164
* 7 163 264 264 163
* 8 160 264 264 160
9 159 264 264 159
10 152 264 264 152
11 144 264 264 144
12 135 264 264 135
13 257 264 257 0
14 246 264 246 0
15 232 264 232 0
16 218 264 218 0
17 202 264 202 0
18 183 264 183 0
19 161 264 161 0
20 137 264 137 0
21 241 241 0 0
22 207 207 0 0
23 164 164 0 0
24 222 0 0 0
21.95 m Diameter 50.80 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3 Section 4
1 454.66 670.56 670.56 454.66
2 452.12 670.56 670.56 452.12
* 2 129.54 0 0 129.54
3 447.04 670.56 670.56 447.04
4 439.42 670.56 670.56 439.42
5 429.26 670.56 670.56 429.26
6 416.56 670.56 670.56 416.56
* 7 414.02 670.56 670.56 414.02
* 8 406.4 670.56 670.56 406.4
9 403.86 670.56 670.56 403.86
10 386.08 670.56 670.56 386.08
11 365.76 670.56 670.56 365.76
12 342.9 670.56 670.56 342.9
13 652.78 670.56 652.78 0
14 624.84 670.56 624.84 0
15 589.28 670.56 589.28 0
16 553.72 670.56 553.72 0
17 513.08 670.56 513.08 0
18 464.82 670.56 464.82 0
19 408.94 670.56 408.94 0
20 347.98 670.56 347.98 0
21 612.14 612.14 0 0
22 525.78 525.78 0 0
23 416.56 416.56 0 0
24 563.88 0 0 0
NOTE: Seventy seven (77) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
* NOTE: This special monorail run is used to support the
floor plank at the split.
