PNEG-1833 75' Dura-Lok Plank and Support Manual 33
6. Layouts
75'-17" Rail Spacing Layout

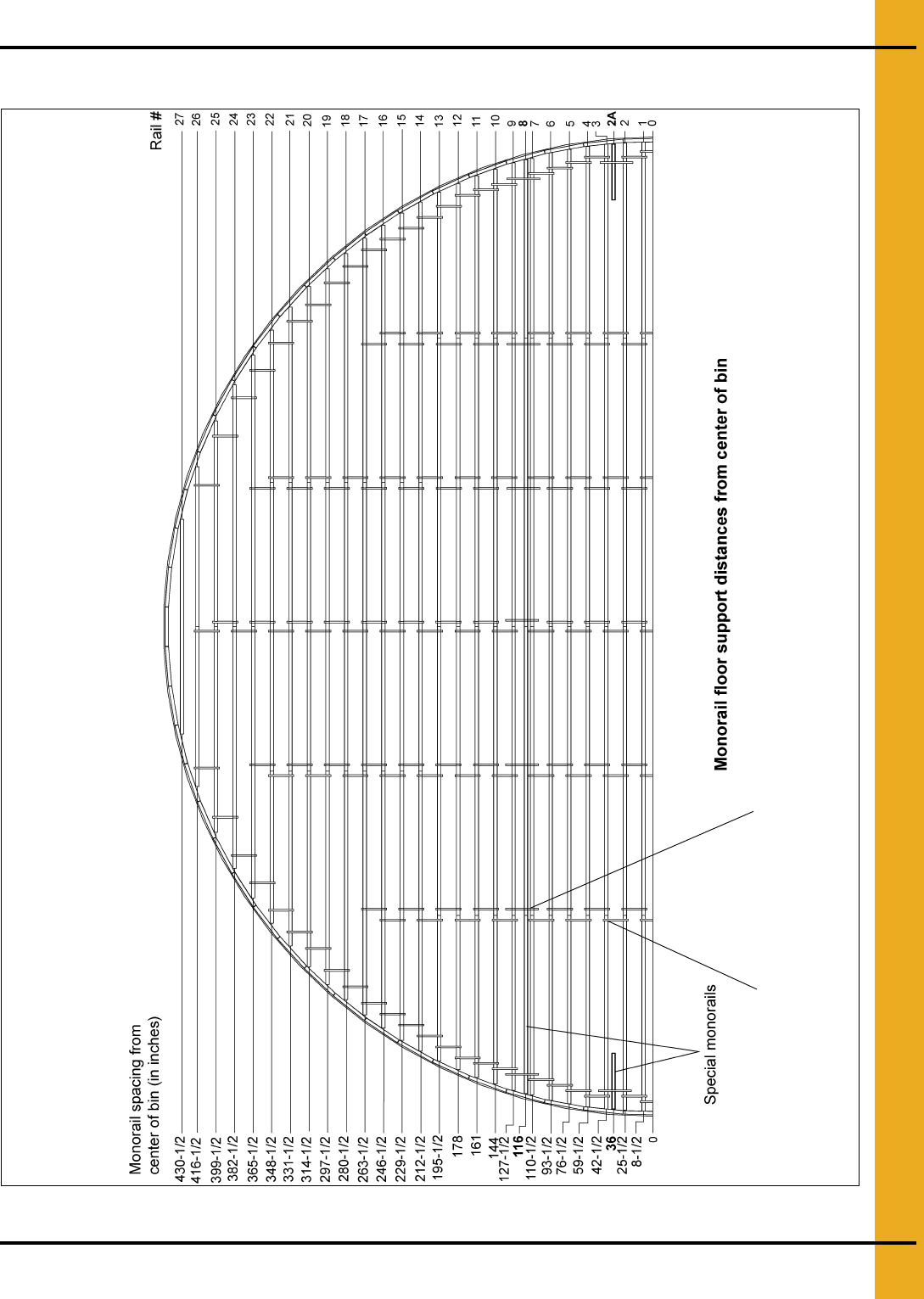

Figure 6H 75' Diameter 17" Rail Spacing
Tie bar (See Page 15 for
installation detail.)
Tie strap (See Page 16
for installation detail.)
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
