Owner's manual

PNEG-1833 75' Dura-Lok Plank and Support Manual 31
6. Layouts
75'-16" Monorail Spacing Layout

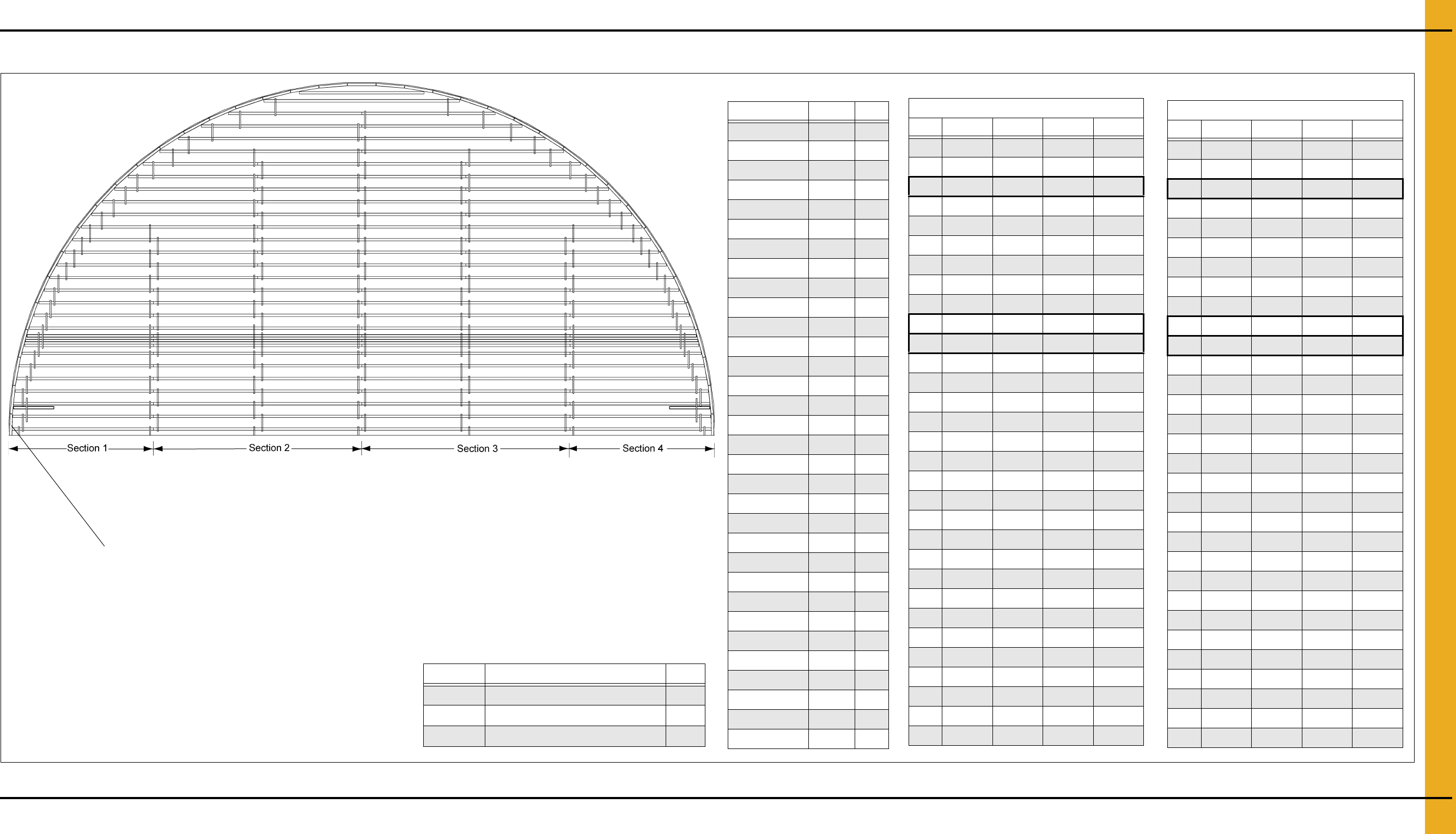

Figure 6F 75' Diameter Bin with 16" Monorail Spacing
Part # Description Qty
FL-404-16 16" Monorail Tie Bar 330
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 120
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 1120
Bill of Materials
Part # Length Qty
A-22MONO 264 76
A-21.92MONO 263 4
A-21.33MONO 256 4
A-21.16MONO 254 4
A-20.67MONO 248 2
A-20.3MONO 244 4
A-19.5MONO 234 4
A-19.3MONO 232 4
A-18.63MONO 223 4
A-17.5MONO 210 4
A-16.9MONO 203 4
A-16.3MONO 196 4
A-15.08MONO 181 4
A-14.9MONO 179 4
A-14.83MONO 178 4
A-14.75MONO 177 4
A-14.58MONO 175 4
A-14.42MONO 173 4
A-14.17MONO 170 4
A-14.08MONO 169 4
A-13.9MONO 166 4
A-13.7MONO 164 4
A-13.58MONO 163 4
A-13.5MONO 162 4
A-13.3MONO 160 4
A-13.2MONO 158 2
A-13.1MONO 157 4
A-12.58MONO 151 4
A-12.1MONO 145 8
A-11.5MONO 138 4
A-4.25MONO 51 4
A-3MONO 36 103
75' Diameter 16" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3 Section 4
1 179 264 264 179
2 178 264 264 178
* 2A 51 0 0 51
3 177 264 264 177
4 175 264 264 175
5 173 264 264 173
6 170 264 264 170
7 166 264 264 166
8 163 264 264 163
* 9 162 264 264 162
* 10 160 264 264 160
11 157 264 264 157
12 151 264 264 151
13 145 264 264 145
14 138 264 264 138
15 263 264 263 0
16 254 264 254 0
17 244 264 244 0
18 234 264 234 0
19 223 264 223 0
20 210 264 210 0
21 196 264 196 0
22 181 264 181 0
23 164 264 164 0
24 145 264 145 0
25 256 256 0 0
26 232 232 0 0
27 203 203 0 0
28 169 169 0 0
29 248 0 0 0
30 158 0 0 0
21.95 m Diameter 40.64 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3 Section 4
1 454.66 670.56 670.56 454.66
2 452.12 670.56 670.56 452.12
* 2A 129.54 0 0 129.54
3 449.58 670.56 670.56 449.58
4 444.5 670.56 670.56 444.5
5 439.42 670.56 670.56 439.42
6 431.8 670.56 670.56 431.8
7 421.64 670.56 670.56 421.64
8 414.02 670.56 670.56 414.02
* 9 411.48 670.56 670.56 411.48
* 10 406.4 670.56 670.56 406.4
11 398.78 670.56 670.56 398.78
12 383.54 670.56 670.56 383.54
13 368.3 670.56 670.56 368.3
14 350.52 670.56 670.56 350.52
15 668.02 670.56 668.02 0
16 645.16 670.56 645.16 0
17 619.76 670.56 619.76 0
18 594.36 670.56 594.36 0
19 566.42 670.56 566.42 0
20 533.4 670.56 533.4 0
21 497.84 670.56 497.84 0
22 459.74 670.56 459.74 0
23 416.56 670.56 416.56 0
24 368.3 670.56 368.3 0
25 650.24 650.24 0 0
26 589.28 589.28 0 0
27 515.62 515.62 0 0
28 429.26 429.26 0 0
29 629.92 0 0 0
30 401.32 0 0 0
NOTE: Seventy seven (77) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
* NOTE: This special monorail run is used to support the floor
plank at the split.
