PNEG-1833 75' Dura-Lok Plank and Support Manual 29
6. Layouts
75'-15" Rail Spacing Layout

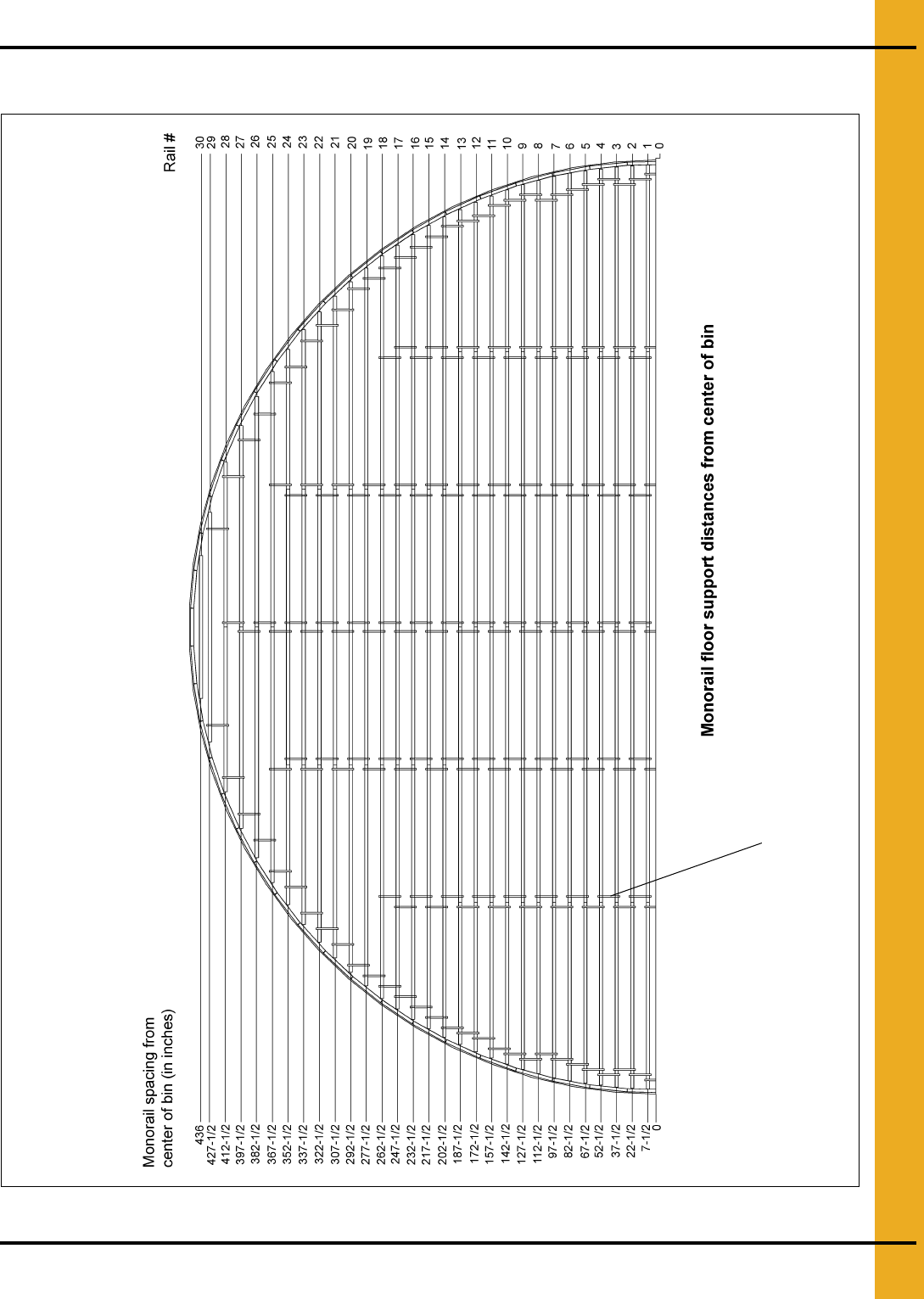

Figure 6D 75' Diameter 15" Rail Spacing
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
Tie bar (See Page 15 for
installation detail.)
