6. Layouts
75'-15" Monorail Spacing Layout

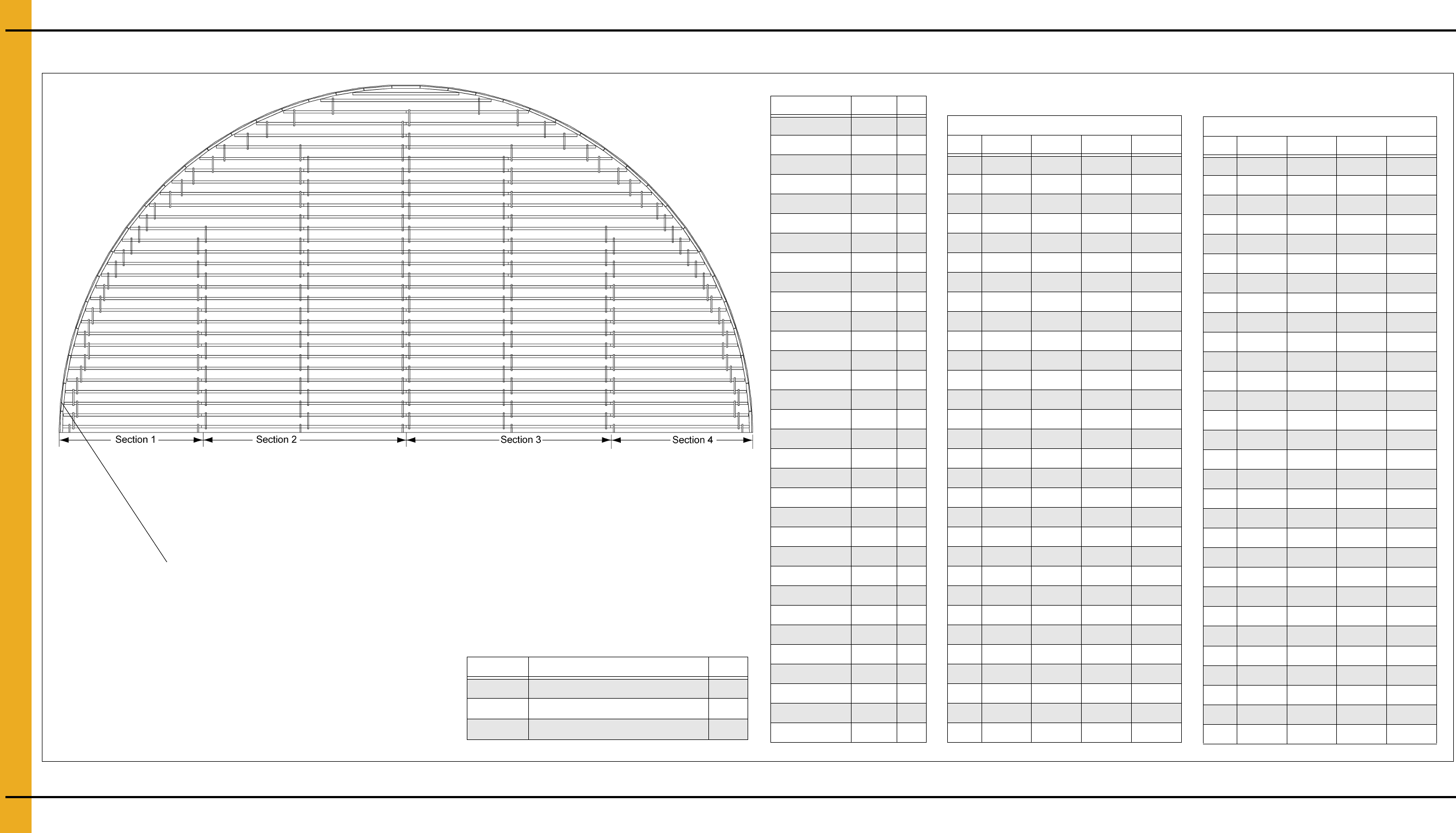

Figure 6C 75' Diameter Bin with 15" Monorail Spacing
Part # Description Qty
FL-404-15 15" Monorail Tie Bar 350
S-280 #10-16 x 5/8" Zinc Self-Drilling Screw 1200
FL-7411 Monorail Strap 1-1/2" x 30" x 0.061" 70
NOTE: Seventy seven (77) total outer perimeter 3' monorail
pieces. See Page 17 for leg support details.
Bill of Materials
Part # Length Qty
A-22MONO 264 74
A-21.75MONO 261 4
A-21.08MONO 253 4
A-20.42MONO 245 4
A-20.3MONO 244 4
A-19.5MONO 234 4
A-18.67MONO 224 4
A-18.42MONO 221 4
A-18.33MONO 220 2
A-17.66MONO 212 4
A-16.58MONO 199 4
A-16.08MONO 193 4
A-15.41MONO 185 4
A-14.9MONO 179 4
A-14.83MONO 178 4
A-14.75MONO 177 4
A-14.58MONO 175 4
A-14.42MONO 173 4
A-14.25MONO 171 4
A-14.17MONO 170 4
A-14MONO 168 4
A-13.7MONO 164 4
A-13.3MONO 160 4
A-13.2MONO 158 4
A-12.9MONO 155 4
A-12.8MONO 153 4
A-12.42MONO 149 4
A-11.92MONO 143 4
A-11.42MONO 137 2
A-11.3MONO 136 4
A-11.17MONO 134 4
A-3MONO 36 103
75' Diameter 15" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3 Section 4
1 179 264 264 179
2 178 264 264 178
3 177 264 264 177
4 175 264 264 175
5 173 264 264 173
6 171 264 264 171
7 168 264 264 168
8 164 264 264 164
9 160 264 264 160
10 155 264 264 155
11 149 264 264 149
12 143 264 264 143
13 136 264 264 136
14 261 264 261 0
15 253 264 253 0
16 244 264 244 0
17 234 264 234 0
18 224 264 224 0
19 212 264 212 0
20 199 264 199 0
21 185 264 185 0
22 170 264 170 0
23 153 264 153 0
24 134 264 134 0
25 245 245 0 0
26 221 221 0 0
27 193 193 0 0
28 158 158 0 0
29 220 0 0 0
30 137 0 0 0
22.86 m Diameter 38.10 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3 Section 4
1 454.66 670.56 670.56 454.66
2 452.12 670.56 670.56 452.12
3 449.58 670.56 670.56 449.58
4 444.5 670.56 670.56 444.5
5 439.42 670.56 670.56 439.42
6 434.34 670.56 670.56 434.34
7 426.72 670.56 670.56 426.72
8 416.56 670.56 670.56 416.56
9 406.4 670.56 670.56 406.4
10 393.7 670.56 670.56 393.7
11 378.46 670.56 670.56 378.46
12 363.22 670.56 670.56 363.22
13 345.44 670.56 670.56 345.44
14 662.94 670.56 662.94 0
15 642.62 670.56 642.62 0
16 619.76 670.56 619.76 0
17 594.36 670.56 594.36 0
18 568.96 670.56 568.96 0
19 538.48 670.56 538.48 0
20 505.46 670.56 505.46 0
21 469.9 670.56 469.9 0
22 431.8 670.56 431.8 0
23 388.62 670.56 388.62 0
24 340.36 340.36 340.36 0
25 622.3 622.3 0 0
26 561.34 561.34 0 0
27 490.22 490.22 0 0
28 401.32 401.32 0 0
29 558.8 0 0 0
30 347.98 0 0 0
