6. Layouts
72'-22" Rail Spacing Layout

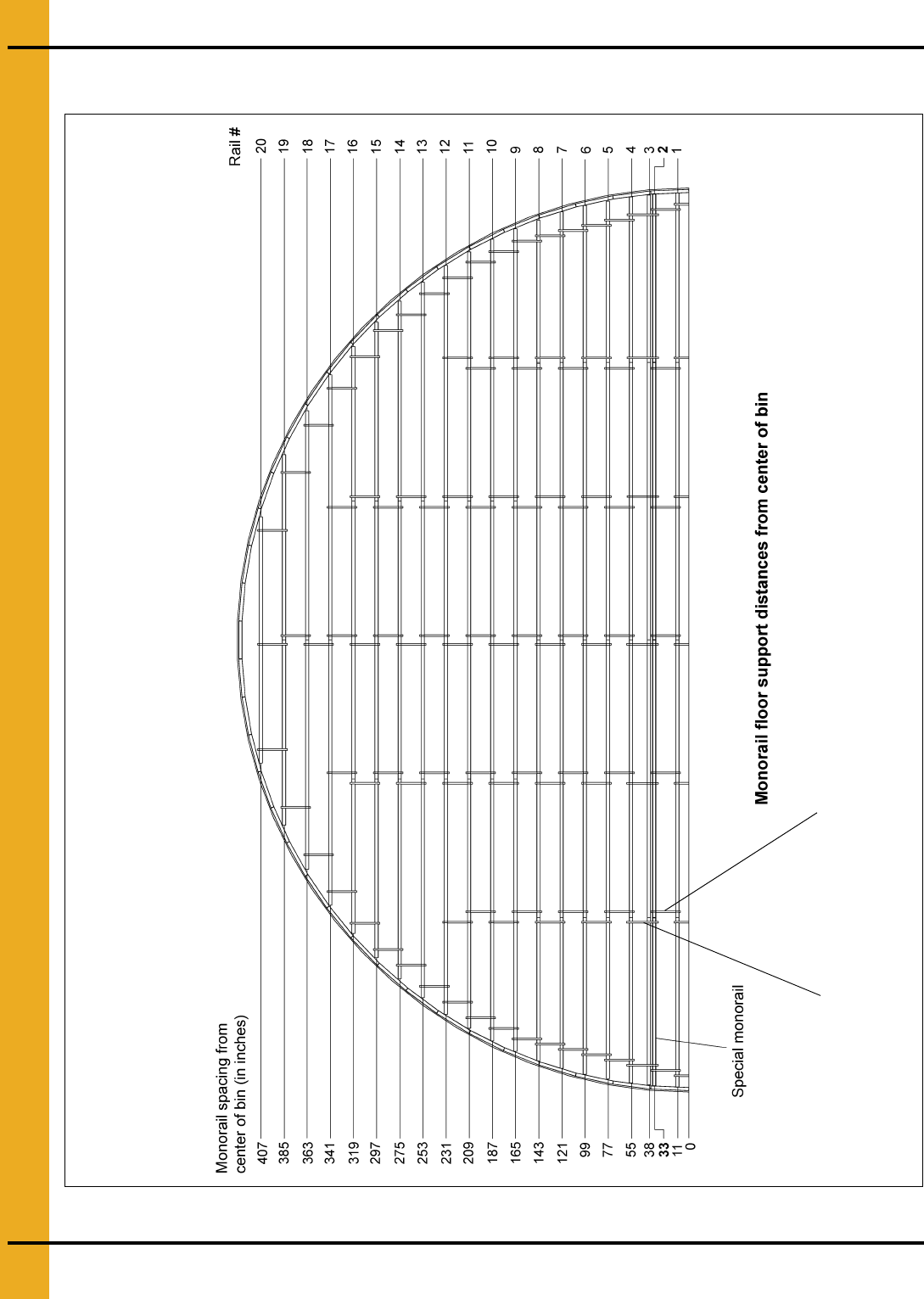

Figure 6M 72' Diameter 22" Rail Spacing
Tie bar (See Page 15 for
installation detail.)
Tie strap (See Page 16
for installation detail.)
NOTE: This depicts monorail spacings only. Leg spacing is dependant
on eave height. See Page 18 for leg and rail spacing chart.
